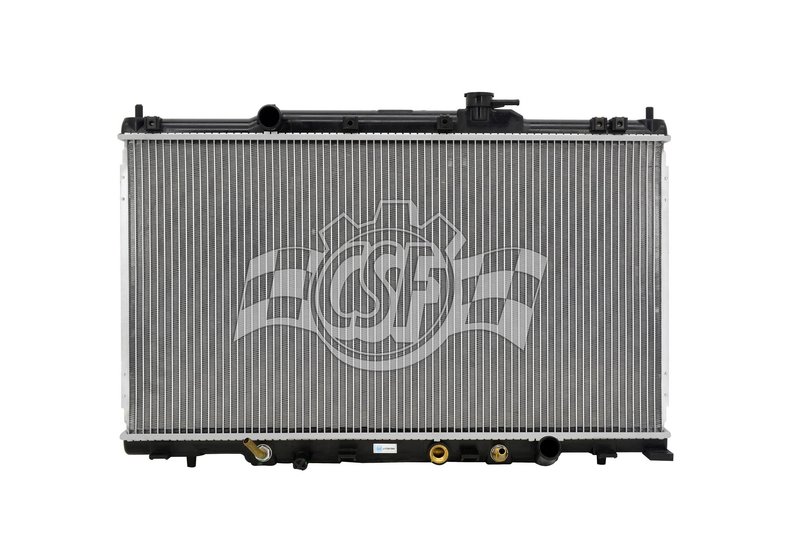

CSF 3094 Radiator

Overview of CSF 3094 Radiator for Honda CR-V and Element

The CSF 3094 radiator is designed specifically for Honda CR-V and Element models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in down flow applications.

• Core thickness: 5/8 inch
• Core width: 29 1/16 inches
• Core length: 15 13/16 inches
• Aluminum core with plastic tanks
• Inlet and outlet diameter: 1 1/4 inches (left inlet, right outlet)
• Down flow radiator type
• Includes high-efficiency concentric oil cooler (12 13/16 inches)
• Does not include radiator cap (CSF cap number 4514 compatible)

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of specific vehicle applications, such as the Honda CR-V and Element, ensuring proper fitment and performance. The single-row core design supports effective heat exchange while maintaining a compact profile.

Technical Description and Specifications

The CSF 3094 radiator features a 5/8 inch thick aluminum core measuring 29 1/16 inches wide and 15 13/16 inches long. The plastic tanks are designed to OEM specifications, providing a secure and corrosion-resistant housing for the coolant. The radiator supports a down flow cooling system, with a 1 1/4 inch diameter inlet on the left and outlet on the right, facilitating efficient coolant circulation. Additionally, the integrated high-efficiency concentric oil cooler (12 13/16 inches) enhances engine oil temperature regulation. The radiator weighs approximately 9 pounds and comes in a box measuring 31 5/8 inches in length, 21 15/16 inches in width, and 5 1/16 inches in height.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Honda CR-V and Element models
• Improves engine cooling efficiency in vehicles experiencing overheating
• Restores proper coolant flow in down flow radiator systems
• Addresses issues related to corrosion or plastic tank failure
• Supports oil temperature control with integrated oil cooler for enhanced engine performance

Installation Notes and Tips

When installing the CSF 3094 radiator, ensure compatibility with your specific Honda CR-V or Element model year. The radiator does not include a cap, so use a compatible CSF cap number 4514 or OEM equivalent. Verify inlet and outlet hose connections match the 1 1/4 inch diameter specifications. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal coolant flow. Handle the aluminum core carefully to avoid damage during installation.

Quality Assurance and Warranty Information

CSF radiators are manufactured to meet OEM standards, combining plastic tanks with an aluminum core for durability and corrosion resistance. This radiator is free of hazardous materials and designed for long-term reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region and application.
