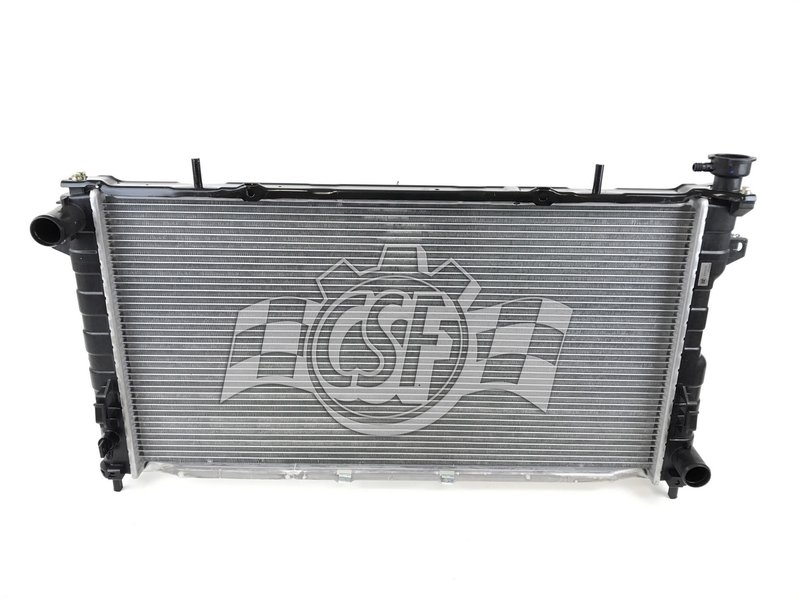

CSF 3109 Radiator
Overview of CSF 3109 Radiator for Chrysler and Dodge Vehicles
The CSF 3109 radiator is designed specifically for Chrysler and Dodge models including the Caravan, Grand Caravan, Town & Country, and Voyager. Featuring a durable aluminum core with plastic tanks, this radiator offers reliable cooling performance tailored to your vehicle's needs.
- Core Thickness: 15/16 inch
- Core Width: 16 7/16 inches
- Core Length: 30 1/4 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet Diameter: 1 1/2 inch (left side)
- Outlet Diameter: 1 1/2 inch (right side)
- Cross flow design for efficient coolant circulation
- Single core row construction
- Cap not included (CSF cap number 4515 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to provide a balance of durability and efficient heat dissipation. This product line is engineered to meet the cooling demands of mid-size vans and minivans, making it suitable for Chrysler Caravan and Dodge Grand Caravan models. The single-row core design supports effective cooling while maintaining a compact profile.
Product Description and Specifications
The CSF 3109 radiator features a 15/16 inch thick aluminum core measuring 16 7/16 inches wide and 30 1/4 inches long. Its plastic tanks are designed to withstand typical operating conditions while reducing weight. The radiator uses a cross flow configuration, allowing coolant to flow horizontally through the core, which enhances heat exchange efficiency. The inlet and outlet diameters are both 1 1/2 inches, positioned on the left and right sides respectively, matching factory specifications for Chrysler and Dodge minivans. This radiator does not include a cap but is compatible with CSF cap number 4515.
Common Applications and Problem Resolution
- Replacement for leaking or damaged radiators in Chrysler Caravan and Dodge Voyager models
- Solves overheating issues caused by clogged or inefficient cooling cores
- Addresses coolant leaks from cracked plastic tanks
- Restores proper coolant flow with OEM-style inlet and outlet dimensions
- Improves engine temperature regulation in Town & Country minivans
Installation Notes and Tips
- Ensure compatibility with your specific Chrysler or Dodge model year before installation
- Drain coolant completely before removing the old radiator to avoid spills
- Inspect hoses and clamps for wear and replace if necessary during installation
- Use the recommended CSF cap number 4515 or equivalent to maintain system pressure
- Check for proper alignment of inlet and outlet connections to prevent leaks
Quality Assurance and Warranty Information
The CSF 3109 radiator is manufactured to meet OEM standards, featuring a durable aluminum core and plastic tanks designed for longevity. This radiator is free from hazardous materials and undergoes quality control inspections to ensure reliable performance. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
| Brand | CSF |
| Part Number | 3109 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 8 |
| Box Length (in) | 40 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 23 |
| Cap Included | No |
| Core Length | 30 1/4 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 16 7/16 |
| Csf Cap Number | 4515 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 16 7/8 |
| Inlet Width (in) | 2 1/16 |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 16 7/8 |
| Outlet Width (in) | 2 1/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M style plastic tanks & Aluminum core. |
