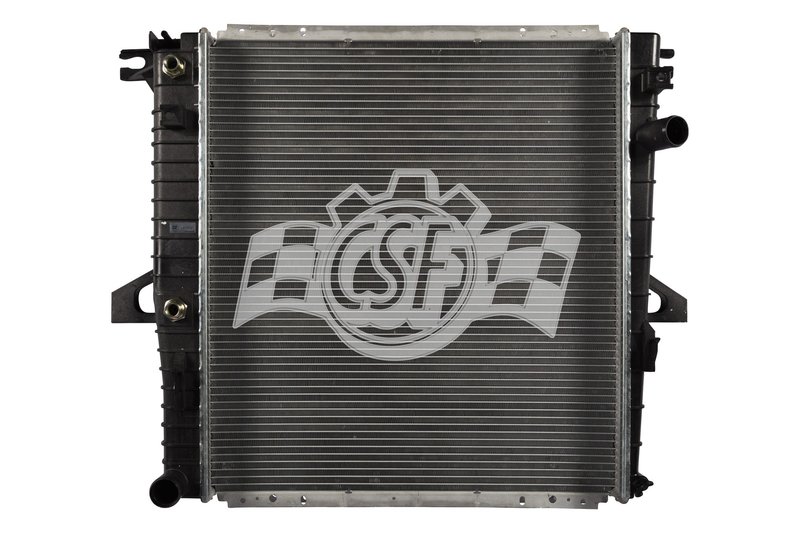

CSF 3113 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

CSF 3113 Radiator

Brand CSF 3113
Box Height (in) 8
Box Length (in) 32
Box Weight (lbs) 17
Box Width (in) 28
Cap Included No
Core Length 20 11/16
Core Material Aluminum
Core Thickness 15/16
Core Width 23 11/16
Down Flow Or Cross Flow Type Cross Flow
Hazardous Material No
Inlet Diameter 1 1/2 Right
Inlet Length (in) 23 5/8
Inlet Width (in) 2 3/4
Oil Cooler (in) 12 (high-efficiency Plate Type)
Outlet Diameter 1 1/2 Left
Outlet Length (in) 23 5/8
Outlet Width (in) 2 3/4
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M style plastic tanks & Aluminum core.
Product line 1 Row Plastic Tank Aluminum Core
Fits Ford and Mazda · 21 vehicles

OE-style construction. Plastic tanks and an aluminum core match the original design.

Cross-flow design. Promotes efficient cooling through the radiator core.

Wind tunnel tested. Validated for cooling performance in lab testing.

Cross-references APDI 8012470, Gates 2470 and Spectra Premium CU2470 for the same application. See all 11.

$176.57Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $176.57
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

OE-Style Radiator for Ranger and B2300

CSF Part Number 3113 is a direct-fit radiator built with an aluminum core and OEM-style plastic tanks. It is designed for 2001-2011 Ford Ranger and 2001-2010 Mazda B2300 applications, with cross-flow construction and factory-style inlet and outlet placement for straightforward replacement.

CSF’s 1 Row Plastic Tank Aluminum Core line focuses on OE-style fitment with performance-oriented construction. This radiator follows that approach with a single-row aluminum core, plastic end tanks, and dimensions that match the listed vehicle applications for dependable cooling system service.

Key Features

  • Fits 2001-2011 Ford Ranger, N/A
  • Fits 2001-2010 Mazda B2300, N/A
  • CSF Part Number 3113
  • 1-row cross-flow radiator design
  • Aluminum core with plastic tanks
  • Core thickness: 15/16 in.
  • Core width: 23 11/16 in.
  • Core length: 20 11/16 in.
  • Inlet diameter: 1 1/2 in. right
  • Outlet diameter: 1 1/2 in. left
  • Oil cooler: 12 in. high-efficiency plate type
  • OEM-style plastic tanks and aluminum core

Detailed Description

CSF 3113 is a replacement radiator engineered for Ford Ranger and Mazda B2300 cooling system service. The aluminum core helps transfer heat efficiently, while the plastic tank construction follows the original equipment style used on these applications. With a cross-flow layout and specified inlet and outlet locations, this radiator is built to match the factory cooling system configuration.

CSF states that its radiators are manufactured to high-performance standards, with engineering validation performed through wind tunnel testing and broad application coverage across many vehicle platforms. For buyers searching for a Ford Ranger radiator replacement or a Mazda B2300 radiator replacement, Part Number 3113 provides an OE-style solution with the listed dimensions and connection points.

This part cross-references APDI 8012470 and Spectra Premium CU2470 for the same application.

Common Cooling Issues Addressed

  • Leaking radiator tanks or core seams
  • Restricted coolant flow from an aging radiator
  • Overheating caused by reduced heat dissipation
  • Damaged inlet or outlet connections
  • Cooling system service on a worn OE-style radiator

Installation Notes and Tips

Verify core dimensions, inlet and outlet orientation, and oil cooler configuration before installation. Confirm that the vehicle uses the listed right-side inlet and left-side outlet layout, and inspect hoses, clamps, and coolant condition during replacement. Proper system bleeding and a pressure check after installation help confirm a sealed cooling system.

Quality Assurance

CSF manufactures radiators in ISO/TSO-certified facilities and has supplied radiators worldwide for more than 50 years. The brand’s product development includes engineering validation for cooling performance, supporting consistent OE-style replacement quality for applications such as the Ford Ranger and Mazda B2300.

Related reading

This part fits 21 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2011FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2010FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2010MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2009FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2009MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2008FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2008MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2007FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2007MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2006FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2006MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2005FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2005MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2004FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2004MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2003FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2003MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2002FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2002MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2001FordRanger2.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
2001MazdaB23002.3LL4N/AOE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8012470Gates — 2470Spectra Premium — CU24701L5H 8005 GA1L5H 8005 HA1L5Z 8005 GA1L5Z 8005 HA6L5Z 8005 AA6L5Z 8005 BAFO3010243FO3010244
