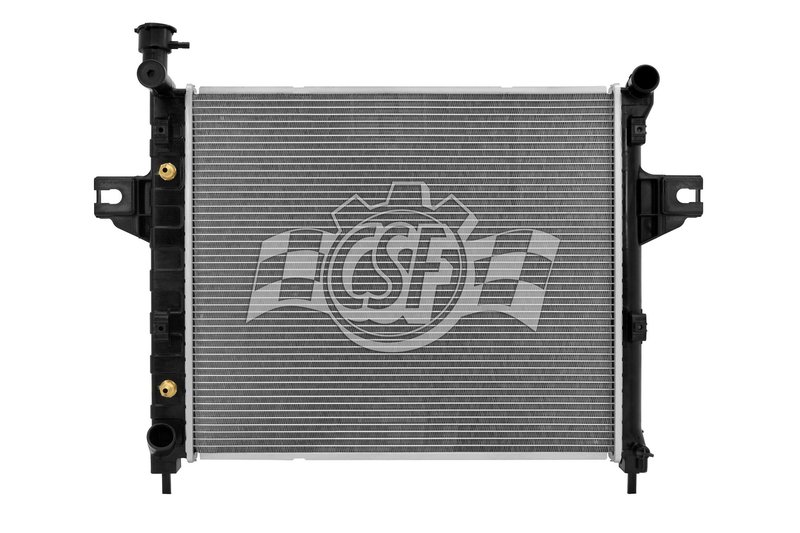

CSF 3115 Radiator
Overview of CSF 3115 Radiator for Jeep Grand Cherokee
The CSF 3115 radiator is designed specifically for Jeep Grand Cherokee models, offering reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in cross flow configuration.
- Core thickness: 7/8 inch
- Core width: 20 inches
- Core length: 23 7/16 inches
- Aluminum core with plastic tanks
- Cross flow design for improved coolant flow
- Inlet and outlet diameter: 1 1/2 inches (right inlet, left outlet)
- Includes a high-efficiency 12-inch plate type oil cooler
- OEM style construction for direct replacement
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight plastic tanks with a robust aluminum core to provide a balance of durability and efficient cooling. This design supports effective heat transfer while maintaining compatibility with original equipment manufacturer (OEM) specifications. The 1-row core configuration is suitable for applications requiring moderate cooling capacity, such as the Jeep Grand Cherokee.
Technical Description of CSF Part Number 3115
This radiator features a 7/8 inch thick aluminum core measuring 20 inches wide and 23 7/16 inches long, constructed in a cross flow layout to optimize coolant circulation. The plastic tanks are engineered to OEM standards, ensuring a precise fit and reliable sealing. The inlet and outlet ports are both 1 1/2 inches in diameter, positioned on the right and left sides respectively, facilitating straightforward hose connections. Additionally, the integrated 12-inch high-efficiency plate type oil cooler enhances engine oil temperature regulation, contributing to overall engine performance and longevity.
Applications and Common Issues Addressed
- Replacement for leaking or damaged radiators in Jeep Grand Cherokee vehicles
- Resolves overheating caused by inefficient or clogged radiator cores
- Addresses coolant flow restrictions due to core or tank damage
- Improves engine oil cooling with integrated oil cooler for better thermal management
- Suitable for restoring OEM cooling system performance after radiator failure
Installation Notes and Tips
- Ensure compatibility with Jeep Grand Cherokee model year before installation
- Inspect and replace radiator hoses and clamps as needed during installation
- Bleed the cooling system properly to avoid air pockets after installation
- Verify inlet and outlet hose orientation matches the vehicle’s configuration
- Use recommended coolant type and maintain proper fluid levels for optimal performance
Quality Assurance and Warranty Information
The CSF 3115 radiator is manufactured to meet OEM specifications, utilizing high-quality aluminum core and plastic tank materials for durability and corrosion resistance. This radiator is free of hazardous materials and designed for long service life. While specific warranty details are not provided, CSF products typically adhere to industry standards for quality and reliability.
| Brand | CSF |
| Part Number | 3115 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 8 1/16 |
| Box Length (in) | 35 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 27 1/2 |
| Cap Included | No |
| Core Length | 23 7/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 20 |
| Csf Cap Number | 4539 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Right |
| Inlet Length (in) | 20 9/16 |
| Inlet Width (in) | 2 1/8 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 20 9/16 |
| Outlet Width (in) | 2 1/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimp strips to strengthen Radiator by 40% over O.E. |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2003 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2002 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2001 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2000 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1999 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
