OE Quality
60-Day Returns

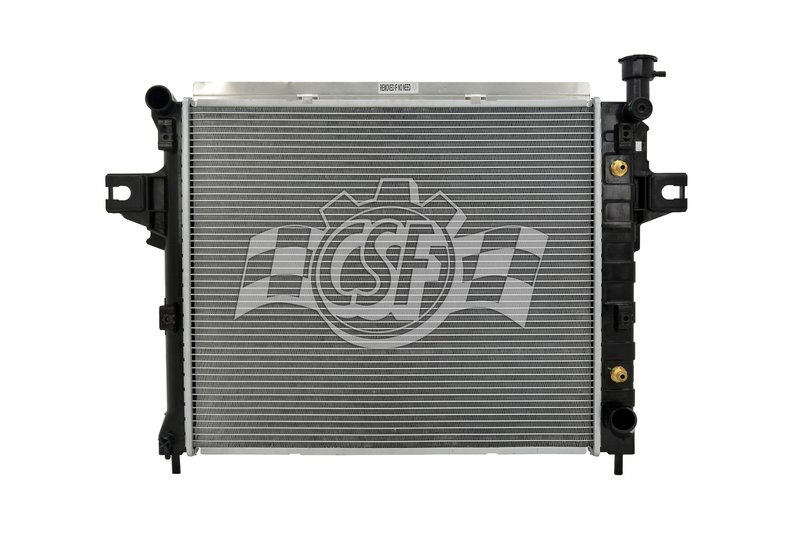

CSF 3117 Radiator
Overview of CSF 3117 Radiator for Jeep Grand Cherokee
The CSF 3117 radiator is designed specifically for Jeep Grand Cherokee models, offering reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a compact design.
- Core thickness: 7/8 inch
- Core width: 20 inches
- Core length: 23 7/16 inches
- Aluminum core with plastic tanks
- Cross flow design for improved coolant circulation
- Inlet and outlet diameter: 1 1/2 inches (left inlet, right outlet)
- Includes a 12-inch high-efficiency plate type oil cooler
- OEM style plastic tanks and aluminum core construction
Detailed Product Description
The CSF 3117 radiator belongs to the 1 Row Plastic Tank Aluminum Core product line, which combines lightweight aluminum cores with durable plastic tanks to provide a balance of performance and cost-effectiveness. This radiator features a single-row core with a thickness of 7/8 inch, measuring 20 inches wide and 23 7/16 inches long, making it suitable for the cooling demands of Jeep Grand Cherokee vehicles. The cross flow design enhances coolant flow across the core, improving heat exchange efficiency. Both the inlet and outlet have a diameter of 1 1/2 inches, positioned on the left and right sides respectively, facilitating straightforward hose connections. Additionally, the integrated 12-inch high-efficiency plate type oil cooler supports engine oil temperature regulation, contributing to overall engine reliability.
Common Applications and Problem Solving
- Replacement for leaking or damaged Jeep Grand Cherokee radiators
- Resolves overheating issues caused by inefficient cooling
- Addresses coolant leaks from cracked plastic tanks
- Improves engine oil cooling with integrated oil cooler
- Suitable for restoring OEM cooling system performance
Installation Notes and Tips
- Ensure compatibility with Jeep Grand Cherokee model year before installation
- Inspect and replace radiator hoses and clamps as needed
- Bleed the cooling system properly to avoid air pockets
- Verify inlet and outlet hose alignment with 1 1/2 inch diameter fittings
- Use recommended coolant type and mixture for optimal performance
Quality Assurance and Warranty
The CSF 3117 radiator is manufactured to meet OEM specifications, featuring a robust aluminum core and plastic tanks designed for durability and efficient cooling. While the product does not include a radiator cap, it is compatible with CSF cap number 4539. This radiator is free from hazardous materials and undergoes quality control to ensure reliable operation in Jeep Grand Cherokee vehicles. Warranty details should be confirmed with the distributor or manufacturer.
| Brand | CSF |
| Part Number | 3117 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 5/8 |
| Box Length (in) | 34 13/16 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 26 11/16 |
| Cap Included | No |
| Core Length | 23 7/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 20 |
| Csf Cap Number | 4539 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 20 9/16 |
| Inlet Width (in) | 2 1/8 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 20 9/16 |
| Outlet Width (in) | 2 1/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model to service all V8 engines for 2004-1999;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2003 | Jeep | Grand Cherokee | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2002 | Jeep | Grand Cherokee | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2001 | Jeep | Grand Cherokee | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2000 | Jeep | Grand Cherokee | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1999 | Jeep | Grand Cherokee | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
