OE Quality
60-Day Returns

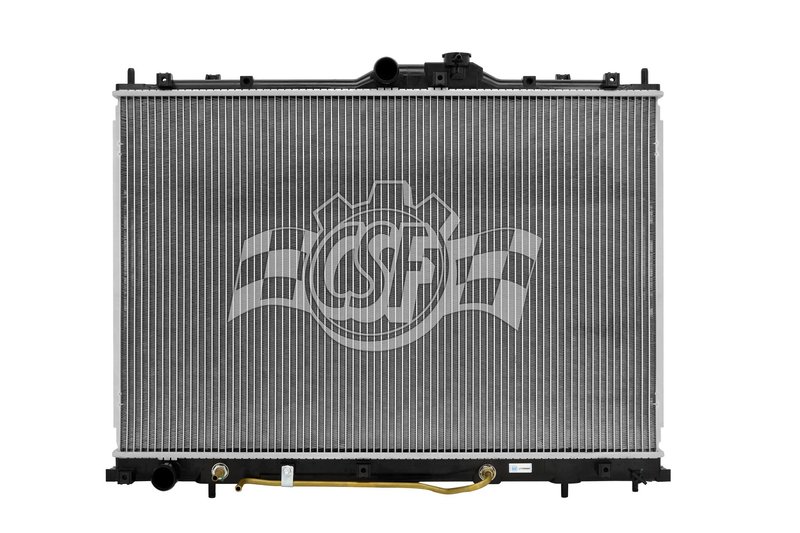

CSF 3123 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 3123 radiator is designed specifically for Mitsubishi Endeavor vehicles, offering reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.
- Core thickness: 7/8 inch
- Core width: 29 13/16 inches
- Core length: 19 3/4 inches
- Aluminum core material with plastic tanks
- Inlet diameter: 1 3/8 inch (center)
- Outlet diameter: 1 3/8 inch (left)
- Down flow radiator type
- One core row
- Includes high-efficiency concentric oil cooler (14 3/4 inches)
- Cap not included (CSF cap number 4514 compatible)
About the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to provide a balance of durability and efficient cooling. This product line is engineered to meet the specific cooling requirements of vehicles like the Mitsubishi Endeavor, ensuring proper fitment and performance without unnecessary modifications.
Detailed Product Description
The CSF part number 3123 radiator features a 7/8 inch thick aluminum core that measures 29 13/16 inches wide and 19 3/4 inches long, providing ample surface area for heat exchange. The plastic tanks are designed to withstand typical operating conditions while reducing weight. The down flow design directs coolant from the top to the bottom of the radiator, optimizing flow for the Mitsubishi Endeavor's engine cooling system. Both the inlet and outlet have a diameter of 1 3/8 inches, positioned center and left respectively, matching factory specifications for straightforward installation. Additionally, the integrated 14 3/4 inch high-efficiency concentric oil cooler supports engine oil temperature regulation.
Common Applications and Problem Solving
- Replacement for leaking or damaged Mitsubishi Endeavor radiators
- Restores proper engine cooling to prevent overheating
- Addresses reduced cooling efficiency due to clogged or corroded cores
- Supports engine oil cooling needs with integrated oil cooler
- Compatible with OEM style plastic tanks and aluminum core setups
Installation Notes and Tips
- Ensure compatibility with Mitsubishi Endeavor models before installation
- Use CSF cap number 4514 or equivalent as cap is not included
- Inspect hoses and clamps for wear during radiator replacement
- Flush cooling system to remove debris before installing new radiator
- Verify inlet and outlet hose diameters (1 3/8 inch) for proper fit
Quality Assurance and Warranty
The CSF 3123 radiator is manufactured to meet OEM specifications, featuring a durable aluminum core and plastic tanks designed for longevity. This radiator is free from hazardous materials and undergoes quality control to ensure reliable performance. Warranty details should be confirmed with the distributor or manufacturer.
| Brand | CSF |
| Part Number | 3123 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 32 13/16 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 26 1/2 |
| Cap Included | No |
| Core Length | 19 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 13/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Centre |
| Inlet Length (in) | 30 1/4 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 30 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Mitsubishi | Endeavor | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Mitsubishi | Endeavor | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2008 | Mitsubishi | Endeavor | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Mitsubishi | Endeavor | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Mitsubishi | Endeavor | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Mitsubishi | Endeavor | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Mitsubishi | Endeavor | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
