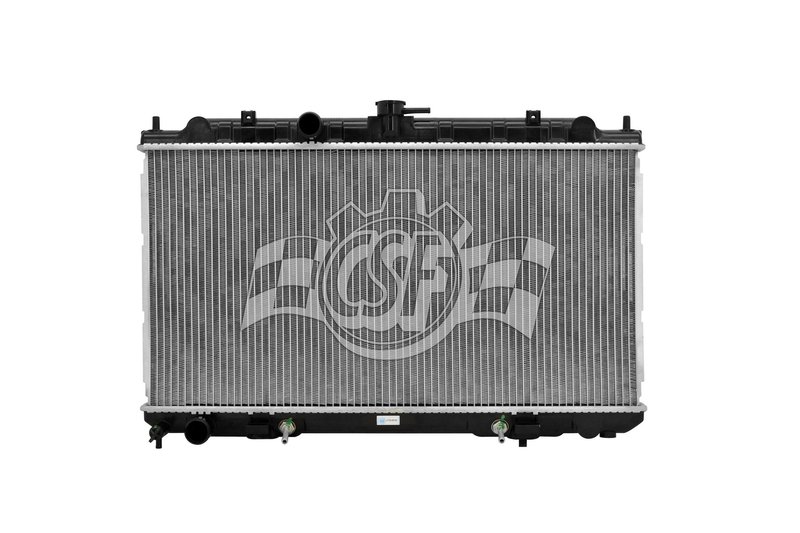

CSF 3134 Radiator

Overview of CSF 3134 Radiator for Nissan Sentra

The CSF 3134 radiator is designed specifically for Nissan Sentra models, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a compact design.

• Core thickness: 7/8 inch
• Core width: 27 1/16 inches
• Core length: 14 3/16 inches
• Aluminum core material with plastic tanks
• Down flow design with 1 3/8 inch inlet and outlet diameters on the left side
• Includes a high-efficiency concentric type oil cooler measuring 11 13/16 inches
• Does not include radiator cap (CSF cap number 4502 compatible)

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet factory specifications for Nissan Sentra vehicles, ensuring proper fitment and cooling efficiency. The single-row core design supports effective heat exchange while maintaining a compact profile suitable for various engine compartments.

Technical Description and Features

The CSF 3134 radiator features a 7/8 inch thick aluminum core that measures 27 1/16 inches wide and 14 3/16 inches long, providing a solid surface area for heat dissipation. The plastic tanks are designed to withstand typical operating temperatures and pressures while reducing overall weight. The down flow configuration directs coolant flow from top to bottom, optimizing cooling efficiency for the Nissan Sentra. Both the inlet and outlet have a diameter of 1 3/8 inches and are positioned on the left side, matching OEM specifications for straightforward installation. Additionally, the integrated oil cooler enhances engine oil temperature regulation, contributing to overall engine performance.

Common Applications and Problem Resolution

• Replacement for leaking or damaged Nissan Sentra radiators
• Solves overheating issues caused by clogged or inefficient cooling cores
• Addresses coolant leaks from cracked plastic tanks
• Restores proper coolant flow with OEM-style inlet and outlet dimensions
• Improves engine oil cooling with built-in high-efficiency oil cooler

Installation Notes and Tips

When installing the CSF 3134 radiator, ensure compatibility with Nissan Sentra models by verifying inlet and outlet positions and diameters. The radiator does not include a cap, so use a compatible CSF cap number 4502 or OEM equivalent. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal coolant circulation. Handle the plastic tanks carefully to avoid damage during installation.

Quality Assurance and Warranty

CSF radiators are manufactured to meet OEM standards for fit, form, and function. The 3134 radiator is constructed with corrosion-resistant aluminum core and durable plastic tanks to provide long service life. This product is free of hazardous materials and undergoes quality control inspections to ensure reliability. Warranty details should be confirmed with the distributor or manufacturer.
