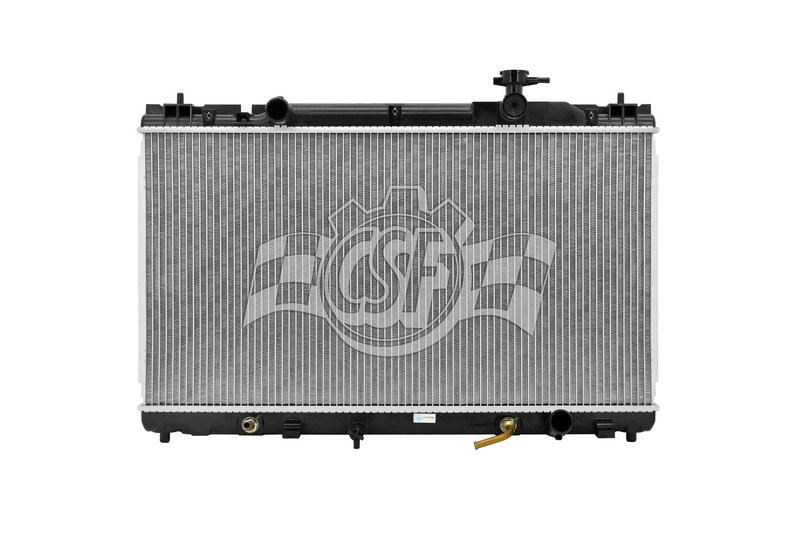

CSF 3143 Radiator

Overview of CSF 3143 Radiator for Toyota Camry and Solara

The CSF 3143 radiator is designed specifically for Toyota Camry and Solara models, providing reliable engine cooling with its durable construction. Featuring a 1 row plastic tank aluminum core, this radiator balances efficient heat dissipation with corrosion resistance.

• Core thickness: 7/8 inch
• Core width: 29 1/16 inches
• Core length: 15 13/16 inches
• Aluminum core with plastic tanks
• Down flow design for optimized coolant circulation
• Inlet and outlet diameter: 1 5/16 inches (left inlet, right outlet)
• Compatible with Toyota Camry and Solara
• Part number: 3143

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core to deliver effective cooling performance. This design supports efficient heat transfer while maintaining a lightweight structure. The single-row core thickness of 7/8 inch ensures adequate cooling capacity for mid-size vehicles like the Toyota Camry and Solara.

Technical Description of CSF Radiator 3143

This radiator features a down flow core type, which directs coolant from the top to the bottom, enhancing heat dissipation. The aluminum core measures 29 1/16 inches in width and 15 13/16 inches in length, providing a substantial surface area for cooling. The plastic tanks reduce weight and resist corrosion, while the inlet and outlet diameters of 1 5/16 inches on the left and right sides respectively ensure proper hose fitment. The radiator does not include a cap but is compatible with CSF cap number 4513. Additionally, the unit includes a high-efficiency concentric oil cooler measuring 14 3/4 inches, which supports engine oil temperature regulation.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Toyota Camry and Solara
• Resolves overheating caused by inefficient cooling cores
• Addresses coolant leaks from cracked plastic tanks
• Improves engine temperature stability during extended operation
• Suitable for vehicles requiring OEM-style radiator replacements

Installation Notes and Tips

Ensure compatibility with your specific Toyota Camry or Solara model year before installation. The radiator is designed for a down flow cooling system and requires proper alignment of inlet and outlet hoses (left inlet, right outlet). Since the radiator does not include a cap, use the compatible CSF cap number 4513 or an OEM equivalent. Inspect all hose connections and clamps for secure fitment to prevent leaks. It is recommended to flush the cooling system before installing the new radiator to remove debris and contaminants.

Quality Assurance and Warranty Information

CSF radiators are manufactured to meet OEM specifications, using corrosion-resistant aluminum cores and durable plastic tanks. This radiator is free of hazardous materials and designed for long-term reliability. While specific warranty details are not provided here, CSF products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
