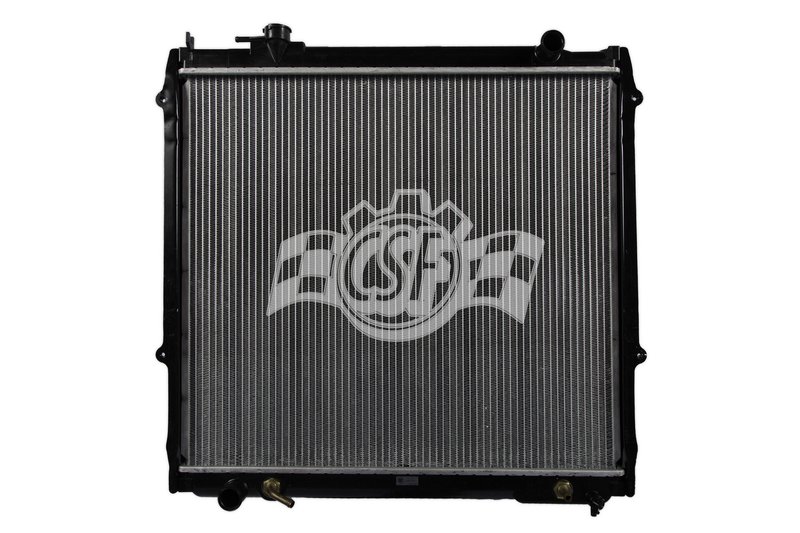

CSF 3157 Radiator

Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator

The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3157) is engineered for Toyota Tacoma vehicles requiring reliable cooling performance. Designed with a durable aluminum core and plastic tanks, this radiator offers efficient heat dissipation and a precise fit for your Tacoma.

• Core thickness: 15/16 inch
• Core width: 25 1/4 inches
• Core length: 22 5/8 inches
• Aluminum core material with plastic tanks
• Down flow radiator design
• Inlet and outlet diameter: 1 3/8 inches (right inlet, left outlet)
• Single core row configuration
• Includes high-efficiency concentric type oil cooler (16 3/4 inches)
• OEM style plastic tanks and aluminum core for multifit applications

Detailed Product Description

This CSF radiator, part number 3157, features a 1 row aluminum core combined with plastic tanks, providing a balance of lightweight construction and effective cooling. The down flow design facilitates optimal coolant flow through the core, enhancing heat exchange efficiency. With core dimensions of 25 1/4 inches in width and 22 5/8 inches in length, this radiator is tailored to meet the cooling demands of Toyota Tacoma models. The inlet and outlet diameters are both 1 3/8 inches, positioned on the right and left sides respectively, ensuring compatibility with factory hose connections.

The integrated oil cooler measures 16 3/4 inches and is a high-efficiency concentric type, supporting engine oil temperature regulation alongside coolant management. This radiator does not include a cap but is compatible with CSF cap number 4502. The product is packaged securely with dimensions of 31 inches in length and width, and 6 inches in height, weighing approximately 20 pounds.

About the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to deliver reliable cooling solutions. This product line is designed for multifit applications, providing a balance between durability and cost-effectiveness. Radiators in this line are engineered to meet or exceed factory specifications, making them suitable replacements for Toyota Tacoma vehicles requiring a single core row radiator.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Toyota Tacoma models
• Resolves overheating caused by inefficient heat dissipation
• Addresses coolant flow restrictions due to clogged or corroded cores
• Supports engine oil cooling through integrated oil cooler
• Restores proper coolant circulation with OEM-style inlet and outlet fittings

Installation Notes and Tips

• Ensure compatibility with your Toyota Tacoma model year before installation
• Use CSF cap number 4502 or equivalent to maintain system pressure
• Inspect hoses and clamps for wear and replace if necessary during installation
• Flush the cooling system to remove debris before installing the new radiator
• Verify inlet and outlet hose alignment to prevent leaks

Quality Assurance and Warranty

CSF radiators, including part number 3157, are manufactured to meet OEM standards using high-quality aluminum cores and plastic tanks. This radiator is free from hazardous materials and designed for durability and performance. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
