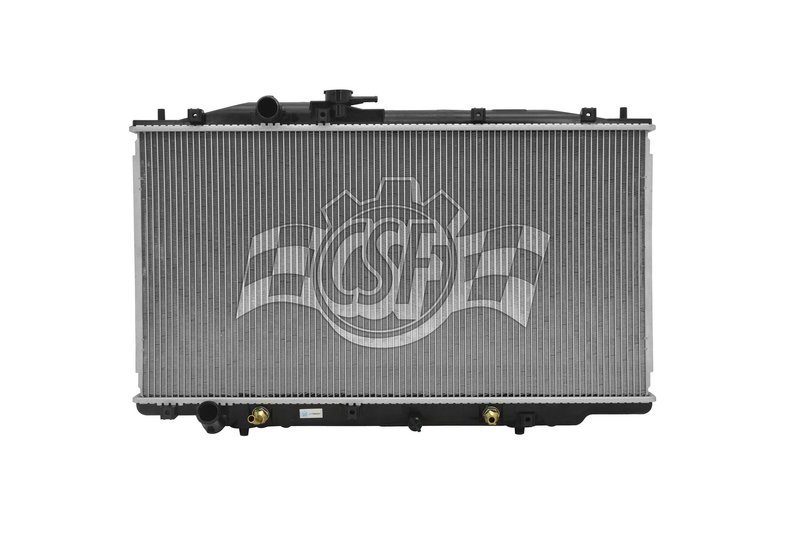

CSF 3186 Radiator
Overview of CSF 3186 Radiator for Honda Accord
The CSF 3186 radiator is designed specifically for Honda Accord models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.
- Core Thickness: 7/8 inch
- Core Width: 28 1/16 inches
- Core Length: 14 3/4 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet and Outlet Diameter: 1 1/4 inches (left side)
- Radiator Core Row Quantity: 1
- Down Flow Type
- Oil Cooler: 12 13/16 inches high-efficiency concentric type
- Cap Not Included (CSF Cap Number 4514 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core to deliver dependable cooling performance. This design balances durability and weight savings, making it suitable for applications like the Honda Accord where efficient heat transfer and fitment precision are critical. The single-row core thickness and down flow design support effective coolant circulation and temperature regulation.
Product Description and Specifications
The CSF 3186 radiator features a 7/8 inch thick aluminum core measuring 28 1/16 inches wide by 14 3/4 inches long. The plastic tanks are engineered to OEM specifications, ensuring compatibility and ease of installation on Honda Accord vehicles. Both the inlet and outlet ports are positioned on the left side with a diameter of 1 1/4 inches, facilitating proper hose connections. The radiator operates on a down flow principle, promoting efficient coolant movement through the single core row. Additionally, it includes a high-efficiency concentric oil cooler measuring 12 13/16 inches, enhancing engine cooling performance.
Common Applications and Problem Solving
- Replacement for leaking or damaged Honda Accord radiators
- Resolves overheating issues caused by inefficient cooling
- Addresses coolant leaks from cracked plastic tanks
- Improves engine temperature regulation with aluminum core design
- Suitable for Accord models requiring a down flow, single-row radiator
Installation Notes and Tips
When installing the CSF 3186 radiator, ensure the radiator cap (CSF cap number 4514) is sourced separately as it is not included. Verify inlet and outlet hose diameters and positions match the vehicle’s specifications. Properly bleed the cooling system after installation to prevent air pockets. Handle the plastic tanks carefully to avoid damage during mounting. This radiator is designed for direct replacement on compatible Honda Accord models.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. The CSF 3186 radiator is free from hazardous materials and undergoes rigorous quality control to ensure reliable performance. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
| Brand | CSF |
| Part Number | 3186 |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 30 5/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 21 |
| Cap Included | No |
| Core Length | 14 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 28 1/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 28 11/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Left |
| Outlet Length (in) | 28 11/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Non-Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Non-Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Non-Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2004 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Non-Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2003 | Honda | Accord | 3.0L | V6 | N/A | OE Style Design; Non-Hybrid; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
