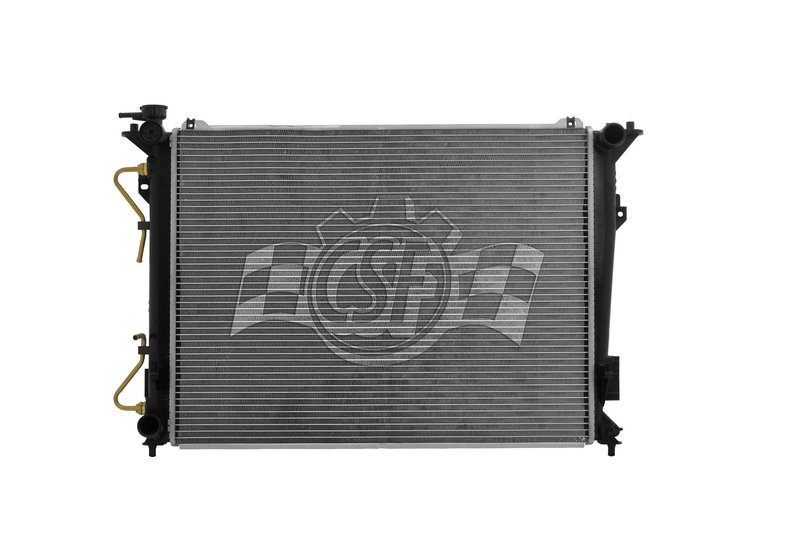

CSF 3188 Radiator

Overview of CSF 3188 Radiator for Hyundai Azera and Sonata

The CSF 3188 radiator is designed specifically for Hyundai Azera and Sonata models, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in cross flow configuration.

• Core Thickness: 7/8 inch
• Core Width: 19 3/16 inches
• Core Length: 25 1/16 inches
• Core Material: Aluminum
• Tank Material: Plastic
• Inlet Diameter: 1 3/8 inches (right side)
• Outlet Diameter: 1 3/8 inches (left side)
• Cross flow design for effective coolant circulation
• Radiator Core Row Quantity: 1
• Cap not included (CSF Cap Number 4503 compatible)
• Oil Cooler: 14 3/4 inches high-efficiency concentric type

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of specific vehicle applications, such as the Hyundai Azera and Sonata, ensuring proper fitment and performance. The single-row core thickness and cross flow design contribute to efficient heat exchange while maintaining a compact form factor.

Product Description and Specifications

The CSF 3188 radiator features a 7/8 inch thick aluminum core measuring 19 3/16 inches wide and 25 1/16 inches long, providing a solid surface area for heat dissipation. The plastic tanks are designed to withstand typical operating conditions while reducing overall weight. The radiator’s cross flow configuration allows coolant to move horizontally through the core, improving thermal efficiency. Inlet and outlet diameters are both 1 3/8 inches, positioned on the right and left sides respectively, matching factory specifications for Hyundai Azera and Sonata models. The included high-efficiency concentric oil cooler measures 14 3/4 inches, supporting engine oil temperature regulation.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Hyundai Azera and Sonata vehicles
• Resolves overheating caused by clogged or inefficient radiator cores
• Addresses coolant flow restrictions due to corrosion or core damage
• Improves engine cooling system reliability after plastic tank failure
• Supports engine oil temperature control with integrated oil cooler

Installation Notes and Tips

• Ensure compatibility with Hyundai Azera and Sonata models before installation
• Verify inlet and outlet hose diameters match existing connections (1 3/8 inches)
• Use the appropriate CSF radiator cap (part number 4503) as this radiator does not include a cap
• Inspect and replace any worn hoses or clamps during installation
• Bleed the cooling system properly to avoid air pockets after installation

Quality Assurance and Warranty

The CSF 3188 radiator is manufactured to meet OEM specifications, using high-quality aluminum core and plastic tank materials. This radiator is free from hazardous materials and designed for durability under normal operating conditions. While specific warranty details are not provided, CSF products typically adhere to industry standards for reliability and performance in automotive cooling systems.
