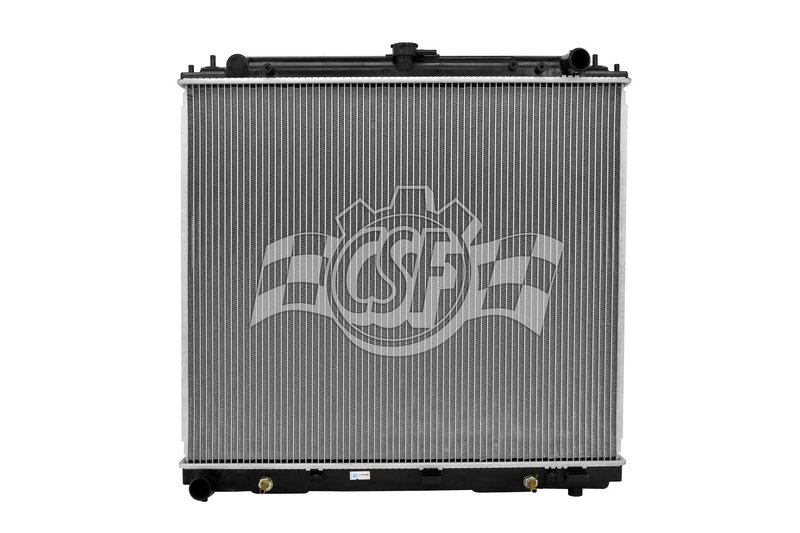

CSF 3196 Radiator

Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator

The CSF 3196 radiator is engineered for reliable cooling performance in Nissan and Suzuki vehicles. Designed with a durable aluminum core and plastic tanks, this radiator supports efficient engine temperature regulation for models like the Nissan Frontier, Pathfinder, Xterra, and Suzuki Equator.

• Core thickness: 1 1/4 inches for effective heat dissipation
• Core dimensions: 27 1/16 inches width by 23 5/8 inches length
• Aluminum core material combined with OE-style plastic tanks
• Down flow design with 1 row radiator core
• Inlet and outlet diameters: 1 3/8 inches (right inlet, left outlet)
• Includes a high-efficiency concentric type oil cooler measuring 16 3/4 inches
• Compatible with Nissan Frontier, Pathfinder, Xterra and Suzuki Equator

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line features radiators that combine lightweight aluminum cores with OE-style plastic tanks. This design balances durability and efficient cooling, making it suitable for vehicles requiring reliable temperature management without added bulk. The single-row core thickness of 1 1/4 inches supports effective heat exchange while maintaining a compact form factor.

Product Description and Specifications

The CSF part number 3196 radiator is a down flow type with a single core row, measuring 27 1/16 inches wide and 23 5/8 inches long. Its aluminum core ensures efficient heat transfer, while the plastic tanks provide corrosion resistance and weight savings. The radiator features a 1 3/8 inch inlet on the right and a 1 3/8 inch outlet on the left, designed to match OEM specifications for a direct fit. Additionally, it includes a high-efficiency concentric oil cooler measuring 16 3/4 inches, enhancing engine cooling performance. This radiator does not include a cap but is compatible with CSF cap number 4503.

Compatible Vehicles and Common Applications

• Replacement radiator for Nissan Frontier models requiring a 1 row aluminum core
• Cooling system upgrade for Nissan Pathfinder and Xterra vehicles
• Suitable for Suzuki Equator models needing a down flow radiator
• Addresses overheating issues caused by worn or damaged radiators
• Resolves coolant leaks from cracked plastic tanks or corroded cores

Installation Notes and Tips

When installing the CSF 3196 radiator, ensure the inlet and outlet hose diameters match the vehicle’s specifications (1 3/8 inches). Verify the down flow orientation aligns with the vehicle’s cooling system layout. Since the radiator does not include a cap, use the compatible CSF cap number 4503 or the OEM equivalent. Inspect all mounting points and hoses for wear during installation to maintain optimal cooling system integrity.

Quality Assurance and Warranty

CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. The 3196 radiator is designed to provide consistent cooling performance without hazardous materials. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
