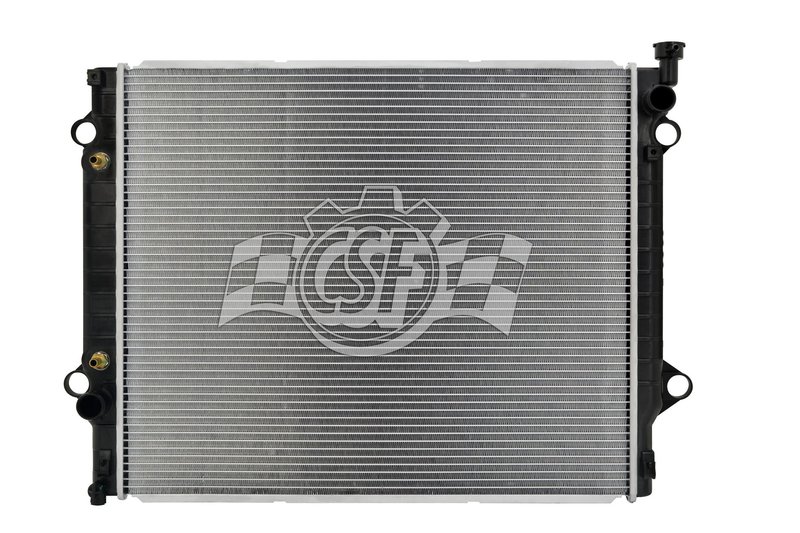

CSF 3200 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

CSF 3200 Radiator

Brand CSF 3200
Box Height (in) 5 1/16
Box Length (in) 33 5/8
Box Weight (lbs) 12
Box Width (in) 25 1/8
Cap Included No
Core Length 25 9/16
Core Material Aluminum
Core Thickness 7/8
Core Width 21 9/16
Csf Cap Number 4514
Down Flow Or Cross Flow Type Cross Flow
Hazardous Material No
Inlet Diameter 1 3/8 Right
Inlet Length (in) 21 3/4
Inlet Width (in) 1 5/8
Oil Cooler (in) 10 1/16 (high-efficiency Plate Type)
Outlet Diameter 1 3/8 Left
Outlet Length (in) 21 3/4
Outlet Width (in) 1 5/8
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core.
Product line 1 Row Plastic Tank Aluminum Core
Fits Toyota · 22 vehicles

OE-style construction. Plastic tanks and an aluminum core match the original design.

Cross-flow design. Promotes efficient coolant flow through the radiator.

High-performance tested. Wind-tunnel validation helps confirm cooling performance.

Cross-references Anchor 2800, Anchor 2801 and Anchor 2802 for the same application. See all 11.

$117.95Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $117.95
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

CSF 3200 Radiator for Tacoma Cooling Service

The CSF 3200 is an OE-style radiator built for 2005-2015 Toyota Tacoma applications. It uses a 1-row aluminum core with plastic tanks and a cross-flow layout to match the factory-style cooling package.

CSF’s 1 Row Plastic Tank Aluminum Core line focuses on direct-fit radiator construction for everyday service and replacement needs. This radiator follows that product line with a plastic tank and aluminum core design, plus a high-efficiency plate-type oil cooler section.

Key Features

  • Fits 2005-2015 Toyota Tacoma, N/A
  • Part number: 3200
  • 1-row cross-flow radiator design
  • Aluminum core with plastic tanks
  • Core thickness: 7/8 in.
  • Core size: 21 9/16 in. wide x 25 9/16 in. long
  • Inlet: 1 3/8 in. right; outlet: 1 3/8 in. left
  • High-efficiency plate-type oil cooler section
  • OE-style plastic tank and aluminum core construction

Detailed Description

CSF 3200 is engineered as a replacement radiator for Toyota Tacoma cooling system service, with dimensions and port placement that follow OE-style packaging. The cross-flow layout, 1-row core, and aluminum construction are designed to support efficient heat transfer while the plastic tanks maintain a factory-style fit and connection layout. This radiator is a practical choice for Tacoma owners replacing a leaking, clogged, or damaged unit.

This part cross-references Spectra Premium CU2802 for the same application. The CSF 3200 also aligns with interchange references including APDI 8012800 and DENSO Auto Parts 221-3139.

What It Helps Address

  • Coolant leaks from cracked or aging radiator tanks
  • Restricted coolant flow from internal buildup or corrosion
  • Overheating caused by reduced heat rejection
  • Damaged radiator cores from road debris or wear
  • Cooling system service on a 2005-2015 Toyota Tacoma

Installation Notes and Tips

Verify inlet and outlet orientation before installation: inlet is on the right and outlet is on the left. This radiator is listed for use with a Micro, 16 psi cap, and the cap is not included. Confirm surrounding cooling system components, hose condition, and mounting points before final assembly.

Quality Assurance

CSF states that its factories are ISO/TSO certified and that its radiators are engineered and wind-tunnel tested for cooling performance validation. The brand also notes more than 50 years of radiator production experience and a broad catalog of applications across major vehicle platforms.

Related reading

This part fits 22 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2015ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2015ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2014ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2014ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2013ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2013ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2012ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2012ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2011ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2011ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2010ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2010ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2009ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2009ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2008ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2008ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2007ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2007ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2006ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2006ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2005ToyotaTacoma4.0LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2005ToyotaTacoma2.7LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 2800Anchor — 2801Anchor — 2802Anchor — 2803APDI — 8012800DENSO Auto Parts — 221-3139Spectra Premium — CU280216410 - 0P03016410 - 0P040TO3010294TO3010295
