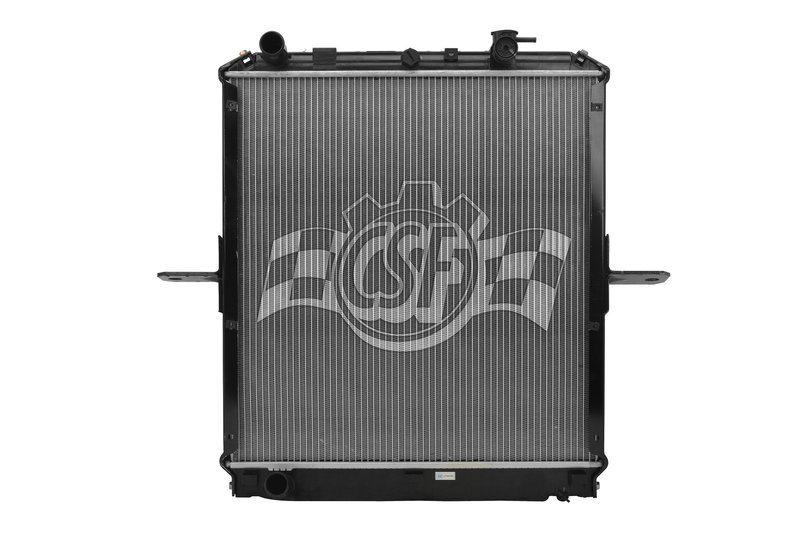

CSF 3209 Radiator
Overview of CSF 3209 Radiator
The CSF 3209 radiator features a durable aluminum core combined with OE-style plastic tanks, designed to provide reliable cooling performance. This radiator is engineered for vehicles requiring a 1-row core with specific inlet and outlet dimensions, ensuring compatibility with select automotive models.
- Core thickness: 1 1/4 inches
- Core width: 23 1/8 inches
- Core length: 24 7/16 inches
- Aluminum core with plastic tanks
- Down flow design with 1-row core
- Inlet and outlet diameter: 1 1/2 inches, positioned on the left
- Includes high-efficiency plate type oil cooler (14 3/8 inches)
- Cap not included; compatible with CSF cap number 4503
About the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight plastic tanks with a robust aluminum core to balance durability and heat dissipation. This design supports efficient engine cooling while maintaining OEM-style fitment and sensor port compatibility, making it suitable for vehicles requiring precise radiator specifications.
Detailed Product Description
The CSF 3209 radiator is constructed with a 1 1/4 inch thick aluminum core measuring 23 1/8 inches wide and 24 7/16 inches long. Its down flow, single-row core design facilitates effective coolant flow and heat exchange. The plastic tanks are engineered to OEM standards and include a sensor port for integration with vehicle monitoring systems. Both the inlet and outlet have a 1 1/2 inch diameter and are located on the left side, matching specific vehicle cooling system layouts. Additionally, the radiator features a high-efficiency plate type oil cooler measuring 14 3/8 inches, enhancing overall engine cooling performance.
Common Applications and Issues Addressed
- Replacement for leaking or damaged radiators in compatible vehicles
- Resolves overheating caused by inefficient or clogged radiator cores
- Addresses coolant flow restrictions due to core damage or corrosion
- Suitable for vehicles requiring a down flow radiator with left-side inlet/outlet
- Supports engine oil cooling needs with integrated oil cooler
Installation Notes and Tips
Ensure compatibility with your vehicle’s make and model by verifying inlet/outlet positions and core dimensions. The CSF 3209 radiator does not include a radiator cap; use the CSF cap number 4503 or an equivalent OEM cap. Properly bleed the cooling system after installation to prevent air pockets. Handle plastic tanks carefully to avoid damage during installation.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM specifications, using corrosion-resistant aluminum cores and durable plastic tanks. This radiator is free of hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by application.
| Brand | CSF |
| Part Number | 3209 |
| Core Thickness | 1 1/4 |
| Core Width | 23 1/8 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 24 7/16 |
| Inlet Diameter | 1 1/2 left |
| Outlet Diameter | 1 1/2 left |
| Down Flow Or Cross Flow Type | Down flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 7 7/16 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 24 |
| Box Width (in) | 34 15/16 |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 23 13/16 |
| Inlet Width (in) | 1 15/16 |
| Oil Cooler (in) | 14 3/8 (high-efficiency plate type) |
| Outlet Length (in) | 23 13/16 |
| Outlet Width (in) | 1 15/16 |
| Tech Note | O.e.m. style plastic tanks & aluminum core;with sensor port on to |
This part fits 0 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
