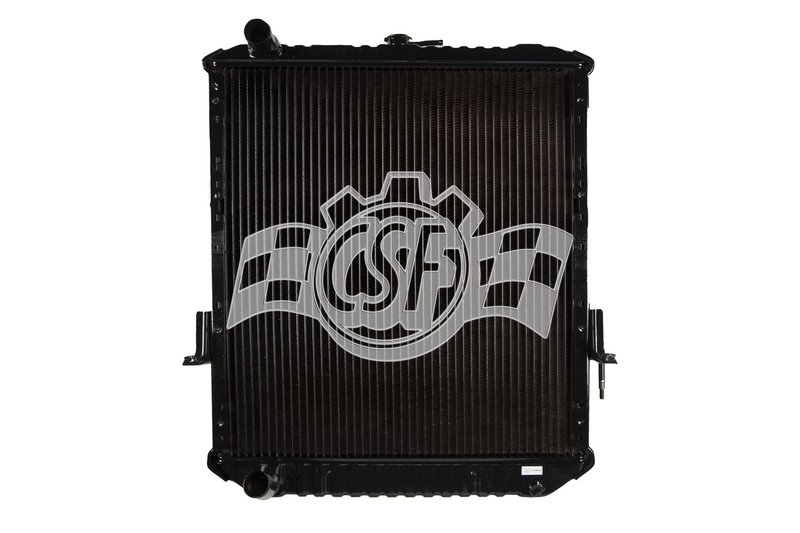

CSF 3214 Radiator

Overview of CSF 3 Row All Metal Radiator 3214

The CSF 3 Row All Metal Radiator part number 3214 is designed for heavy-duty cooling applications requiring durable construction and efficient heat dissipation. Featuring a copper core and brass tanks, this radiator supports reliable engine temperature management in various vehicle makes and models.

• Core thickness: 1 11/16 inches
• Core width: 21 5/8 inches
• Core length: 23 1/4 inches
• Core material: Copper for enhanced thermal conductivity
• Tank material: Brass for corrosion resistance
• Inlet and outlet diameter: 1 1/2 inches, positioned on the left side
• Down flow design with 3 core rows
• Includes a 12-inch high-efficiency concentric oil cooler
• Box dimensions: 30 1/16" length, 28 7/16" width, 7 1/16" height
• Box weight: 28 lbs

Details on the 3 Row All Metal Product Line

The CSF 3 Row All Metal line focuses on heavy-duty radiators constructed entirely from metal components. This design enhances durability and heat transfer efficiency compared to plastic or composite alternatives. The all-metal construction of the 3214 radiator ensures long-lasting performance under demanding conditions, making it suitable for vehicles requiring robust cooling solutions.

Technical Description of Radiator 3214

This radiator features a copper core measuring 1 11/16 inches thick, 21 5/8 inches wide, and 23 1/4 inches long, providing substantial surface area for heat exchange. The brass tanks complement the copper core by offering resistance to corrosion and mechanical stress. The down flow design with three core rows optimizes coolant flow and heat dissipation. Both the inlet and outlet have a 1 1/2 inch diameter and are located on the left side, facilitating compatibility with specific vehicle cooling systems. Additionally, the integrated 12-inch high-efficiency concentric oil cooler supports engine oil temperature regulation.

Applications and Problem Solving

• Replaces worn or damaged radiators in vehicles requiring a 3-row copper/brass radiator
• Addresses overheating issues caused by inefficient or failing cooling components
• Improves cooling system durability in heavy-duty or high-performance applications
• Suitable for vehicles with down flow radiator configurations and left-side inlet/outlet
• Supports engine oil cooling needs with the built-in oil cooler

Installation Notes and Tips

Ensure compatibility with your vehicle’s cooling system by verifying inlet and outlet positions and diameters. The down flow design requires proper orientation during installation. Since the radiator does not include a cap, use the CSF cap number 4502 or an equivalent compatible cap. Handle the copper and brass components carefully to avoid damage during installation.

Quality Assurance and Warranty

The CSF 3 Row All Metal Radiator 3214 is manufactured to meet industry standards for durability and performance. The all-metal construction provides resistance to corrosion and mechanical wear. While specific warranty details are not provided, CSF products typically come with manufacturer-backed quality assurance to support reliable operation.
