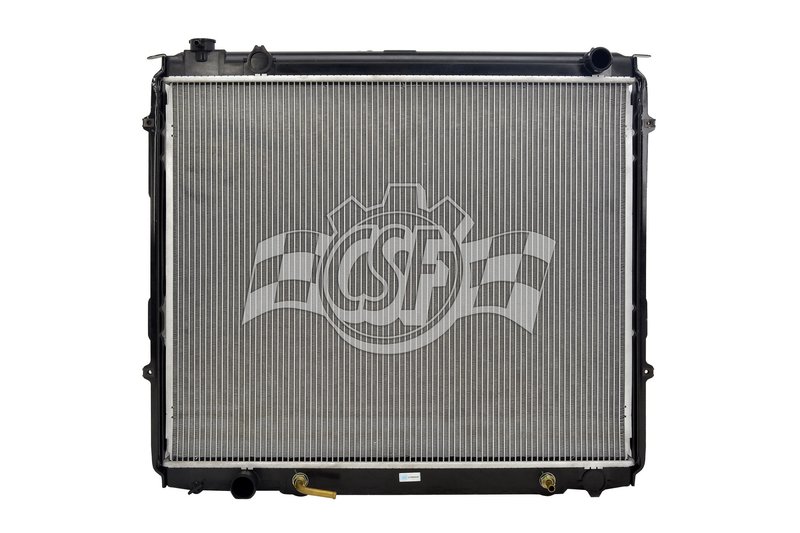

CSF 3235 Radiator
| Brand | CSF 3235 |
|---|---|
| Box Height (in) | 6 4/16 |
| Box Length (in) | 28 7/8 |
| Box Weight (lbs) | 17 |
| Box Width (in) | 32 3/8 |
| Cap Included | No |
| Core Length | 22 5/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 27 1/2 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Right |
| Inlet Length (in) | 28 |
| Inlet Width (in) | 1 15/16 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 28 |
| Outlet Width (in) | 1 15/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Toyota · 2 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror original equipment design.
Down-flow design. Promotes efficient coolant flow through the radiator core.
Wind tunnel tested. Validated for cooling performance in laboratory testing.
Cross-references Anchor 2320, APDI 8012320 and DENSO Auto Parts 221-0516 for the same application. See all 8.
OE-Style Cooling for Toyota Tundra
This CSF radiator is built for 2005-2006 Toyota Tundra applications with an OE-style plastic tank and aluminum core design. CSF Part Number 3235 is engineered for direct-fit cooling performance in a down-flow layout, making it a practical replacement for worn or leaking factory radiators.
The CSF 3235 radiator line is manufactured to high-performance standards and validated through wind tunnel testing for cooling performance. With more than 10,000 radiator models in production and decades of global supply experience, CSF focuses on application-specific fit and thermal efficiency.
Key Features
- Fits 2005-2006 Toyota Tundra, N/A
- CSF Part Number 3235
- 1-row radiator design
- Plastic tank and aluminum core construction
- Down-flow configuration
- Core thickness: 7/8 in.
- Core width: 27 1/2 in.
- Core length: 22 5/8 in.
- Inlet diameter: 1 5/16 in., right side
- Outlet diameter: 1 1/2 in., left side
- Oil cooler: 14 3/4 in. high-efficiency concentric type
Detailed Description
CSF 3235 is an OE-style radiator for the Toyota Tundra, designed around the factory-style plastic tank and aluminum core layout. The radiator uses a down-flow configuration with right-side inlet and left-side outlet dimensions that match the listed application. This makes it a direct replacement choice for 2005-2006 Toyota Tundra cooling system service where the original radiator has aged, cracked, or begun to leak. This part cross-references DENSO Auto Parts 221-0516 for the same application.
For buyers searching for a 2005 Toyota Tundra radiator, 2006 Toyota Tundra radiator, or CSF 3235 replacement radiator, this unit provides the core dimensions and connection layout needed for a proper fit. The integrated oil cooler and OE-style construction support factory-style cooling system service without changing the vehicle’s original radiator design.
Common Problems This Radiator Addresses
- Coolant leaks from aging plastic tanks
- Reduced cooling efficiency from a clogged or damaged core
- Overheating caused by a failing factory radiator
- Transmission or engine cooling concerns tied to radiator wear
- Fitment issues from incorrect replacement radiator dimensions
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is 1 5/16 in. on the right and outlet is 1 1/2 in. on the left. The application notes specify use of a Micro, 13 psi cap, and the radiator does not include a cap. Confirm all hose connections, cooler line routing, and mounting points against the original unit before final assembly.
Quality Assurance
CSF manufactures radiators to ISO/TSO-certified factory standards and validates cooling performance through laboratory wind tunnel testing. The brand has supplied radiators worldwide for more than 50 years and produces a broad range of OE-style cooling components for major vehicle applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Tundra | 4.0L | V6 | N/A | Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Toyota | Tundra | 4.0L | V6 | N/A | Use Micro, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
