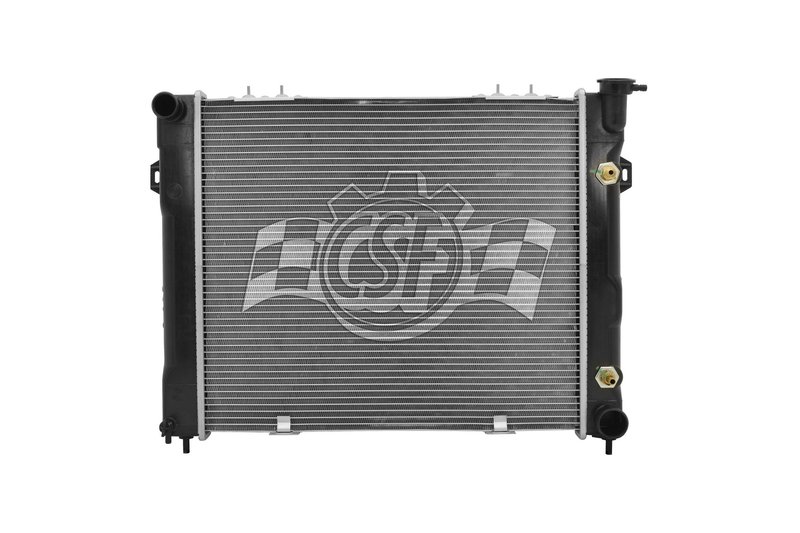

CSF 3249 Radiator
Overview of CSF 3249 Radiator for Jeep Grand Cherokee and Grand Wagoneer
The CSF 3249 radiator is designed specifically for Jeep Grand Cherokee and Grand Wagoneer models, providing reliable cooling performance. Featuring a 1-row aluminum core with plastic tanks, this radiator balances durability and lightweight construction for efficient engine temperature management.
- Core thickness: 1 1/4 inches
- Core width: 19 5/8 inches
- Core length: 22 1/4 inches
- Aluminum core material with plastic tanks
- Cross flow design for optimized coolant flow
- Inlet diameter: 1 1/2 inches (left side)
- Outlet diameter: 1 3/4 inches (right side)
- Includes a high-efficiency 12-inch concentric oil cooler
- Does not include radiator cap (CSF cap number 4515 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line focuses on economical, lightweight radiators that maintain high performance. This product line uses a single-row aluminum core combined with durable plastic tanks to provide effective heat dissipation while reducing overall weight. The CSF 3249 radiator exemplifies this balance, making it suitable for Jeep Grand Cherokee and Grand Wagoneer vehicles requiring dependable cooling solutions.
Technical Description and Features
The CSF 3249 radiator features a 1 1/4 inch thick aluminum core measuring 19 5/8 inches wide and 22 1/4 inches long. Its cross flow design enhances coolant circulation, improving heat exchange efficiency. The plastic tanks reduce weight without compromising structural integrity. The inlet and outlet diameters are 1 1/2 inches (left) and 1 3/4 inches (right), respectively, matching factory specifications for seamless integration. Additionally, the built-in 12-inch high-efficiency concentric oil cooler supports engine oil temperature regulation, contributing to overall engine health.
Common Applications and Problem Solving
- Replacement for worn or leaking radiators in Jeep Grand Cherokee and Grand Wagoneer
- Addresses overheating issues due to inefficient cooling
- Resolves coolant leaks from damaged plastic tanks
- Improves engine oil cooling with integrated oil cooler
- Supports restoration of factory cooling system performance
Installation Notes and Tips
When installing the CSF 3249 radiator, ensure compatibility with Jeep Grand Cherokee and Grand Wagoneer models. Verify inlet and outlet hose connections match the 1 1/2 inch left inlet and 1 3/4 inch right outlet diameters. Note that the radiator cap is not included; use a compatible CSF cap number 4515 or equivalent. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal coolant flow.
Quality Assurance and Warranty
The CSF 3249 radiator is manufactured with high-quality aluminum core and plastic tank materials to meet OEM standards. While specific warranty details are not provided, CSF products typically undergo rigorous testing to ensure durability and performance. This radiator is free of hazardous materials and designed for long-term reliability in Jeep Grand Cherokee and Grand Wagoneer vehicles.
| Brand | CSF |
| Part Number | 3249 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 31 1/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 24 1/8 |
| Cap Included | No |
| Core Length | 22 1/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 19 5/8 |
| Csf Cap Number | 4515 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 20 5/8 |
| Inlet Width (in) | 2 |
| Oil Cooler (in) | 12 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/4 Right |
| Outlet Length (in) | 20 5/8 |
| Outlet Width (in) | 2 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | Economical Lightweight Aluminum core model with high performance oil cooler; Enhanced Multifit model to accommodate all variations of fan shrouds; Also 3/8" & 7/16" flare fittings supplied to accommodate snap-on & push-on oil cooler lines. |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Jeep | Grand Cherokee | 5.2L | V8 | N/A | Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1998 | Jeep | Grand Cherokee | 5.9L | V8 | N/A | Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1997 | Jeep | Grand Cherokee | 5.2L | V8 | N/A | Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1996 | Jeep | Grand Cherokee | 5.2L | V8 | N/A | Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1995 | Jeep | Grand Cherokee | 5.2L | V8 | N/A | Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1994 | Jeep | Grand Cherokee | 5.2L | V8 | N/A | Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1993 | Jeep | Grand Cherokee | 5.2L | V8 | N/A | Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1993 | Jeep | Grand Wagoneer | 5.2L | V8 | N/A | Economical Lightweight Design; Full Size; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
