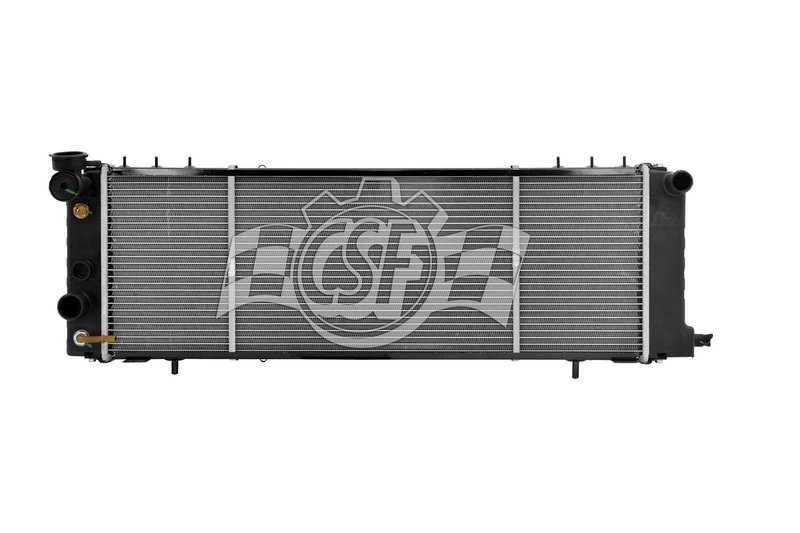

CSF 3251 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3251) is designed specifically for Jeep Cherokee models. This radiator features a lightweight aluminum core combined with durable plastic tanks, providing efficient cooling performance tailored to your vehicle's needs.
- Core thickness: 1 1/4 inches
- Core width: 10 15/16 inches
- Core length: 31 inches
- Aluminum core material for heat dissipation
- Plastic tank construction for corrosion resistance
- Cross flow design for optimized coolant flow
- Inlet diameter: 1 1/4 inches (right side)
- Outlet diameter: 1 1/2 inches (left side)
- Single core row configuration
- Includes high-efficiency 7 1/2 inch oil cooler (concentric type)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line focuses on providing economical and lightweight radiator solutions. This product line utilizes an aluminum core for effective heat transfer while employing plastic tanks to reduce weight and resist corrosion. The 1-row core design supports efficient cooling in applications like the Jeep Cherokee, where space and performance balance is critical.
Product Description and Specifications
This radiator (Part Number 3251) features a 1 1/4 inch thick aluminum core measuring 31 inches in length and 10 15/16 inches in width. The cross flow design enhances coolant circulation, improving heat dissipation. The plastic tanks on the right and left sides provide durability and resistance to corrosion. The inlet and outlet diameters are 1 1/4 inches (right) and 1 1/2 inches (left), respectively, matching the Jeep Cherokee's cooling system requirements. Additionally, the integrated 7 1/2 inch high-efficiency concentric oil cooler supports engine oil temperature regulation.
Common Applications and Problem Solving
- Replacement for worn or leaking radiators in Jeep Cherokee vehicles
- Improves engine cooling efficiency to prevent overheating
- Addresses coolant leaks caused by damaged plastic tanks or core corrosion
- Supports engine oil cooling through the integrated oil cooler
- Suitable for restoring factory cooling system performance
Installation Notes and Tips
- Compatible with Jeep Cherokee models requiring a 1-row cross flow radiator
- Ensure inlet and outlet hose diameters match 1 1/4 inch (right) and 1 1/2 inch (left) connections
- Verify radiator mounting points align with vehicle frame
- Check for proper fitment of condenser mounting as noted in technical specifications
- Bleed cooling system after installation to remove air pockets
Quality Assurance and Warranty
The CSF 1 Row Plastic Tank Aluminum Core Radiator is manufactured to meet OEM standards for fit and function. The aluminum core and plastic tank construction provide durability and corrosion resistance. While no cap is included, the radiator is compatible with CSF cap number 4515. This radiator is not classified as hazardous material and is designed for reliable performance in Jeep Cherokee cooling systems.
| Brand | CSF |
| Part Number | 3251 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 8 1/16 |
| Box Length (in) | 39 5/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 15 1/16 |
| Cap Included | No |
| Core Length | 31 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 10 15/16 |
| Csf Cap Number | 4515 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Right |
| Inlet Length (in) | 10 15/16 |
| Inlet Width (in) | 2 7/16 |
| Oil Cooler (in) | 7 1/2 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 10 15/16 |
| Outlet Width (in) | 2 7/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | Economical Lightweight Aluminum core model; Condenser mounts on top bracket, bumper side. |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 2000 | Jeep | Cherokee | 2.5L | L4 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 2000 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1999 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1998 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1998 | Jeep | Cherokee | 2.5L | L4 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; 1 Row Plastic Tank Aluminum Core |
| 1997 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; w/ Filler Neck; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1996 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; w/ Filler Neck; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1995 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; w/ Filler Neck; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1994 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; w/ Filler Neck; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1993 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; w/ Filler Neck; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1992 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; w/ Filler Neck; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1991 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; w/ Filler Neck; Left Hand Drive; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
