OE Quality
60-Day Returns

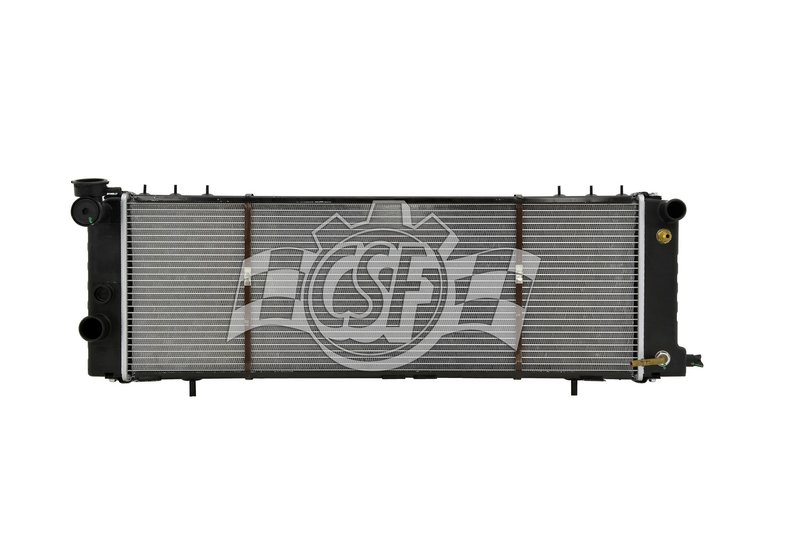

CSF 3252 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3252) is designed specifically for Jeep Cherokee models. This radiator features a lightweight aluminum core combined with durable plastic tanks, providing efficient cooling performance tailored to your vehicle's needs.
- Core thickness: 1 1/4 inches
- Core width: 10 15/16 inches
- Core length: 31 inches
- Aluminum core material with plastic tanks
- Cross flow design for optimal coolant circulation
- Inlet diameter: 1 1/4 inches (right side)
- Outlet diameter: 1 1/2 inches (left side)
- Single core row configuration
- Includes high-efficiency concentric oil cooler (7 1/2 inches)
- Cap not included (compatible with CSF cap number 4515)
Detailed Product Description
This radiator from CSF's 1 Row Plastic Tank Aluminum Core line combines a single-row aluminum core with plastic tanks to deliver a balance of durability and lightweight design. The 1 1/4 inch thick core and cross flow configuration enhance heat dissipation, making it suitable for the cooling demands of Jeep Cherokee vehicles. The aluminum core ensures efficient thermal conductivity, while the plastic tanks reduce overall weight without compromising strength. The radiator also features a built-in high-efficiency concentric oil cooler measuring 7 1/2 inches, which supports engine oil temperature regulation.
Compatible Vehicles and Applications
This radiator is compatible with Jeep Cherokee models requiring a 1-row aluminum core radiator with plastic tanks. It is designed to replace original equipment radiators with similar dimensions and inlet/outlet configurations, ensuring proper fit and function.
- Overheating issues due to worn or damaged radiator cores
- Coolant leaks from cracked or deteriorated plastic tanks
- Reduced cooling efficiency from clogged or corroded cores
- Engine oil temperature regulation problems addressed by integrated oil cooler
- Replacement for damaged or corroded factory radiators
Installation Notes and Tips
When installing the CSF radiator (Part Number 3252) on a Jeep Cherokee, ensure the inlet and outlet hose diameters match the vehicle’s specifications (1 1/4 inch inlet on the right, 1 1/2 inch outlet on the left). The cross flow design requires proper orientation for optimal coolant flow. Note that the radiator cap is not included; use a compatible CSF cap number 4515 or equivalent. Verify all mounting points and connections before finalizing installation to prevent leaks and ensure efficient cooling.
Quality Assurance and Warranty
CSF radiators are manufactured to meet or exceed OEM standards, using corrosion-resistant aluminum cores and durable plastic tanks. This model is an economical, lightweight option within the 1 Row Plastic Tank Aluminum Core product line, designed for reliable performance. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Consult CSF or your parts provider for exact warranty terms.
| Brand | CSF |
| Part Number | 3252 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 7 7/16 |
| Box Length (in) | 39 5/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 15 1/4 |
| Cap Included | No |
| Core Length | 31 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 10 15/16 |
| Csf Cap Number | 4515 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Right |
| Inlet Length (in) | 10 15/16 |
| Inlet Width (in) | 2 7/16 |
| Oil Cooler (in) | 7 1/2 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Left |
| Outlet Length (in) | 10 15/16 |
| Outlet Width (in) | 2 7/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | Economical Lightweight Aluminum core model. |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 2000 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1999 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1998 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1997 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1996 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1995 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1994 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1993 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1992 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
| 1991 | Jeep | Cherokee | 4.0L | L6 | N/A | Use Small, 16 psi Cap; Economical Lightweight Design; Right Hand Drive; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
