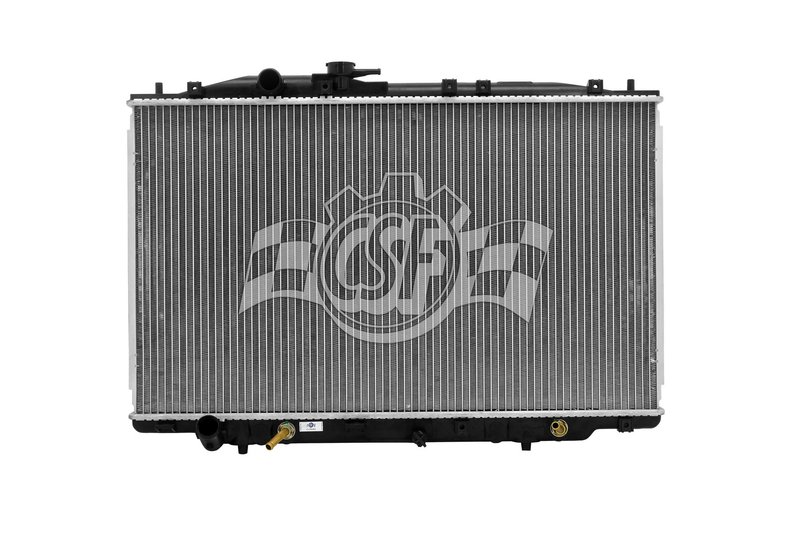

CSF 3253 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3253) is engineered for Acura RL models requiring reliable cooling performance. Designed with a cross flow configuration, this radiator combines a durable aluminum core with plastic tanks to meet OEM specifications.
- Core Thickness: 7/8 inch
- Core Width: 28 1/4 inches
- Core Length: 16 3/4 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet and Outlet Diameter: 1 1/4 inches (left side)
- Radiator Core Row Quantity: 1
- Cross flow design for efficient cooling
- Includes high-efficiency concentric type oil cooler (14 3/4 inches)
- Cap not included (CSF Cap Number 4514 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line features radiators that utilize a single row aluminum core paired with OE-style plastic tanks. This combination offers a balance of lightweight construction and effective heat dissipation, suitable for vehicles like the Acura RL that require precise cooling system components. The design supports cross flow coolant movement, enhancing thermal management under various driving conditions.
Technical Description and Specifications
This radiator features a 7/8 inch thick aluminum core measuring 28 1/4 inches wide by 16 3/4 inches long, optimized for the Acura RL. The plastic tanks are designed to OEM standards, ensuring proper fit and durability. Both the inlet and outlet have a 1 1/4 inch diameter located on the left side, facilitating straightforward hose connections. The cross flow core design promotes efficient coolant circulation, while the integrated high-efficiency concentric oil cooler (14 3/4 inches) supports engine oil temperature regulation.
Applications and Problem Solving
- Replacement for leaking or damaged radiators in Acura RL vehicles
- Addresses overheating issues caused by inefficient cooling cores
- Resolves coolant flow restrictions due to clogged or corroded radiators
- Improves engine oil cooling with integrated oil cooler
- Suitable for restoring OEM cooling system performance
Installation Notes and Tips
- Compatible specifically with Acura RL models; verify fitment before installation
- Cap not included; use CSF Cap Number 4514 or equivalent
- Ensure proper hose alignment with left side inlet and outlet
- Inspect and replace radiator hoses and clamps as needed during installation
- Bleed cooling system thoroughly after installation to prevent air pockets
Quality Assurance and Warranty
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3253) is manufactured to meet OEM standards for fit, form, and function. The radiator is constructed without hazardous materials and is designed for durability and consistent performance. Warranty details should be confirmed with the distributor or manufacturer, as they may vary.
| Brand | CSF |
| Part Number | 3253 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 30 7/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 23 1/8 |
| Cap Included | No |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 28 1/4 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 28 11/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Left |
| Outlet Length (in) | 28 11/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Acura | RL | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Acura | RL | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Acura | RL | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2005 | Acura | RL | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
