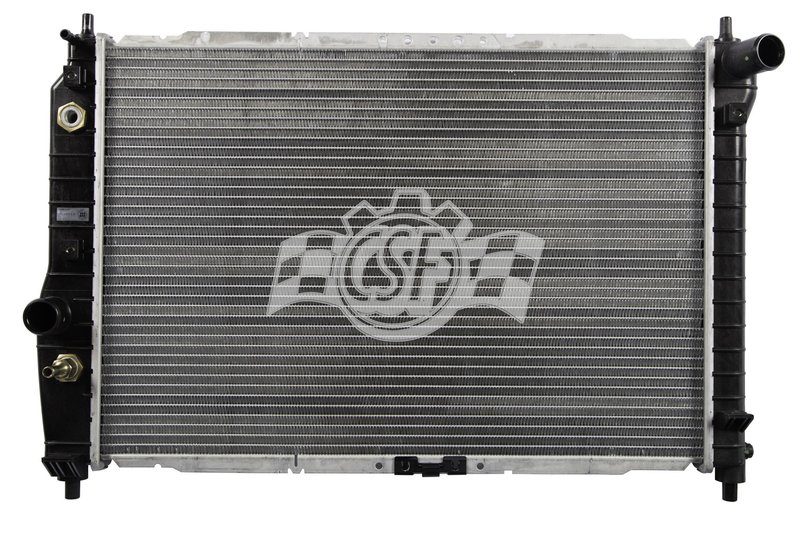

CSF 3256 Radiator

Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator

The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3256) is engineered for reliable cooling performance in select Chevrolet, Pontiac, and Suzuki vehicles. Designed with a durable aluminum core and plastic tanks, this radiator supports efficient heat dissipation for models like the Chevrolet Aveo, Pontiac Wave, and Suzuki Swift.

• Core Thickness: 11/16 inch
• Core Width: 16 7/16 inches
• Core Length: 23 5/8 inches
• Aluminum core with plastic tanks
• Cross flow design for optimized coolant flow
• Inlet and outlet diameter: 1 3/8 inches (right inlet, left outlet)
• Single core row configuration
• Includes a 10-inch high-efficiency plate type oil cooler
• OEM style plastic tanks and aluminum core construction

Detailed Product Description

This radiator features a single-row aluminum core measuring 11/16 inch thick, 16 7/16 inches wide, and 23 5/8 inches long, providing a balance of cooling capacity and compact size. The plastic tanks are designed to match OEM specifications, ensuring compatibility and durability. The cross flow design enhances coolant circulation, improving heat exchange efficiency. Both the inlet and outlet have a diameter of 1 3/8 inches, positioned on the right and left sides respectively, facilitating straightforward hose connections. Additionally, the integrated 10-inch high-efficiency plate type oil cooler supports engine oil temperature regulation, contributing to overall engine performance.

The CSF 1 Row Plastic Tank Aluminum Core product line focuses on combining lightweight plastic tanks with a robust aluminum core to deliver reliable cooling solutions that meet OEM standards. This design approach helps maintain proper engine temperatures while reducing weight compared to all-metal radiators.

Compatible Vehicles and Applications

This radiator is compatible with the following makes and models:

• Chevrolet Aveo and Aveo5
• Pontiac Wave and Wave5
• Suzuki Swift and Swift+

Part number 3256 is specifically designed to meet the cooling requirements of these vehicles, ensuring proper fitment and function.

Common Issues Addressed by This Radiator

• Engine overheating due to inefficient heat dissipation
• Coolant leaks from damaged or corroded radiator cores
• Reduced cooling performance from clogged or worn radiators
• Oil temperature regulation issues addressed by integrated oil cooler
• Replacement of OEM radiators with compatible aftermarket option

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet Aveo, Pontiac Wave, or Suzuki Swift models before installation
• Ensure all hoses and clamps match the 1 3/8 inch inlet and outlet diameters
• Inspect and flush the cooling system prior to installation for optimal performance
• Follow manufacturer torque specifications when securing radiator mounts
• Check for proper coolant levels and bleed air from the system after installation

Quality Assurance and Warranty

The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3256) is manufactured to meet OEM standards for durability and performance. The radiator does not include a cap and is free from hazardous materials. While specific warranty details are not provided, CSF products typically undergo rigorous quality control to ensure reliable operation in compatible Chevrolet, Pontiac, and Suzuki vehicles.
