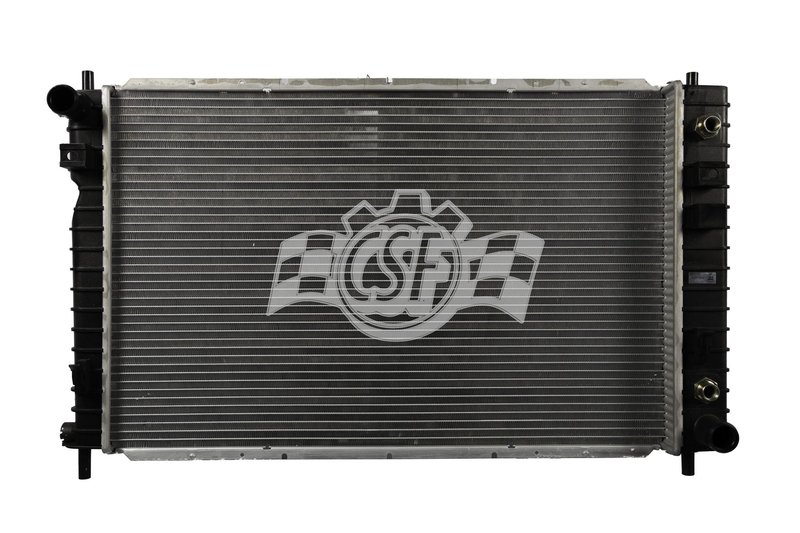

CSF 3259 Radiator
| Brand | CSF 3259 |
|---|---|
| Box Height (in) | 7 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 21 |
| Cap Included | No |
| Core Length | 26 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 16 7/8 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 16 7/8 |
| Inlet Width (in) | 1 9/16 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Diameter | 1 3/8 Right |
| Outlet Length (in) | 16 7/8 |
| Outlet Width (in) | 2 3/4 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Chevrolet · 1 vehicle |
OE-style design. Plastic tanks and an aluminum core match the original construction.
Cross-flow layout. Promotes efficient coolant movement for steady heat transfer.
Wind tunnel tested. Validated for cooling performance in laboratory testing.
Cross-references APDI 8012764, OSC 2764 and Partslink Numbering System GM3010462 for the same application. See all 6.
OE-Style Cooling Replacement
This CSF radiator is built for the 2005 Chevrolet Equinox with an OE-style plastic tank and aluminum core design. It is engineered for direct-fit cooling performance and is a practical choice when replacing a leaking, clogged, or damaged radiator.
Part number 3259 is a cross flow radiator with a 1-row core, left-side inlet, and right-side outlet layout. The CSF 3259 design follows OEM-style construction for the 2005 Chevrolet Equinox and is built to match the vehicle’s cooling system layout.
Key Features
- Fits 2005 Chevrolet Equinox, N/A
- CSF part number 3259
- 1-row cross flow radiator design
- Plastic tank and aluminum core construction
- Core thickness: 15/16 in.
- Core dimensions: 26 in. length x 16 7/8 in. width
- Inlet diameter: 1 3/8 in. left
- Outlet diameter: 1 3/8 in. right
- Integrated 12 in. high-efficiency plate-type oil cooler
- OEM-style plastic tanks with aluminum core
Product Details
CSF manufactures radiators to high-performance standards and has supplied cooling products worldwide for decades. The brand line for this radiator focuses on OE-style plastic tank and aluminum core construction, which is commonly selected for direct replacement service on vehicles like the Chevrolet Equinox. Part number 3259 is engineered and wind-tunnel tested for cooling performance validation, with dimensions and port placement that align with the original system layout.
This radiator cross-references APDI 8012764 and Spectra Premium CU2764 for the same application.
Common Cooling Problems It Can Address
- Coolant leaks from cracked or aging radiator tanks
- Restricted coolant flow from internal buildup or corrosion
- Overheating caused by reduced heat transfer efficiency
- Damaged inlet or outlet connections
- Cooling system performance loss on a 2005 Chevrolet Equinox
Installation Notes
Verify inlet and outlet orientation before installation: this unit uses a left inlet and right outlet configuration. Confirm core dimensions, hose connection size, and oil cooler routing against the original radiator on the 2005 Chevrolet Equinox before removal. Transfer any vehicle-specific components required by the application, and inspect hoses, clamps, and coolant condition during replacement.
Quality Assurance
CSF radiators are produced in ISO/TSO-certified factories and validated through laboratory testing for cooling performance. The brand has manufactured and supplied radiators for more than 50 years across a wide range of vehicle applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Chevrolet | Equinox | 3.4L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
