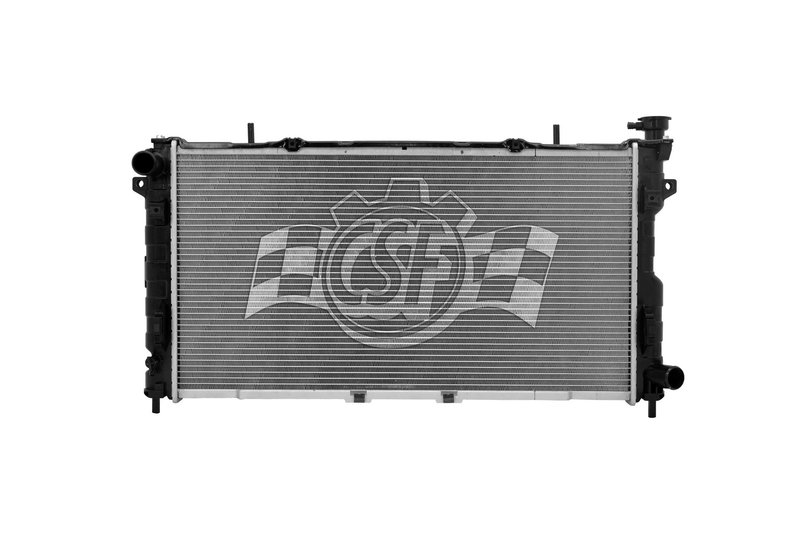

CSF 3265 Radiator
| Brand | CSF 3265 |
|---|---|
| Core Thickness | 1 1/4 |
| Core Width | 15 11/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 30 1/4 |
| Inlet Diameter | 1 9/16 left |
| Outlet Diameter | 1 9/16 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 7 4/16 |
| Box Length (in) | 37 3/4 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 21 15/16 |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/16 |
| Inlet Width (in) | 1 15/16 |
| Outlet Length (in) | 17 3/16 |
| Outlet Width (in) | 1 15/16 |
| Tech Note | O.e.m. style plastic tanks & aluminum core;manufactured with stee |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Dodge · 3 vehicles |
OE-style construction. Plastic tanks and an aluminum core deliver a familiar replacement design.
Cross-flow design. Promotes efficient coolant movement across the radiator for steady heat transfer.
Steel-reinforced crimp strips. Add strength to the radiator assembly for added durability.
Cross-references Anchor 2770, APDI 8012770 and Partslink Numbering System CH3010335 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
CSF 3265 Radiator for Caravan Cooling Service
The CSF 3265 is an OE-style radiator built with a 1-row aluminum core and plastic tanks for the 2005-2007 Dodge Caravan. It is engineered for direct replacement service with cross-flow construction and left-side inlet, right-side outlet routing.
Key Features
- Fits 2005-2007 Dodge Caravan, N/A
- 1-row cross-flow radiator design
- Aluminum core with plastic tanks
- Core thickness: 1 1/4 in.
- Inlet diameter: 1 9/16 in. left; outlet diameter: 1 9/16 in. right
- OE-style plastic tank and aluminum core construction
- Steel crimp strips are used to reinforce the radiator assembly
- CSF part number 3265
Product Details
CSF 3265 is part of CSF’s 1 Row Plastic Tank Aluminum Core line, a product line focused on OE-style radiator construction for everyday cooling system replacement. This radiator uses a cross-flow layout with a 30 1/4 in. core length and 15 11/16 in. core width, giving it the dimensions needed for the listed Dodge Caravan applications. The design combines an aluminum core for heat transfer with plastic tanks for factory-style fitment and serviceability. CSF manufactures radiators to controlled standards and validates cooling performance through laboratory testing, with broad application coverage across many vehicle platforms. This part cross-references APDI 8012770 and Anchor 2770 for the same application.
Common Cooling Issues This Radiator Can Address
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat dissipation
- Corrosion or fatigue in the original radiator assembly
- Cooling system service needs on a 2005-2007 Dodge Caravan
Installation Notes and Tips
Verify inlet and outlet orientation before installation: this unit uses a left inlet and right outlet configuration. Confirm core dimensions, hose connection size, and mounting layout against the removed radiator before assembly. The radiator is supplied without a cap, and the listed CSF cap number is 4515 if a matching cap is required separately. Part number 3265 should be matched to the vehicle’s cooling system specifications before final installation.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered to high-performance standards. The brand also notes wind-tunnel testing for cooling performance validation and more than 50 years of radiator manufacturing experience across a wide range of vehicle applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Dodge | Caravan | 2.4L | L4 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Caravan | 2.4L | L4 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Caravan | 2.4L | L4 | N/A | OE Style Design with Small, 16 psi Cap.; 1 Row Plastic Tank Aluminum Core |
