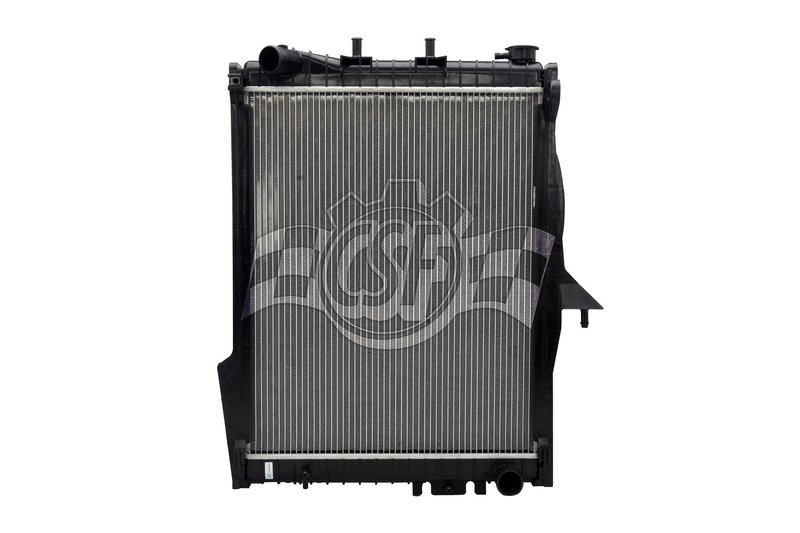

CSF 3269 Radiator
| Brand | CSF 3269 |
|---|---|
| Box Height (in) | 9 3/16 |
| Box Length (in) | 32 5/8 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 27 7/8 |
| Cap Included | No |
| Core Length | 24 1/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 19 3/16 |
| Csf Cap Number | 4539 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/4 Left |
| Inlet Length (in) | 19 13/16 |
| Inlet Width (in) | 2 1/8 |
| Outlet Diameter | 1 13/16 Right |
| Outlet Length (in) | 19 13/16 |
| Outlet Width (in) | 2 1/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Chrysler and Dodge · 15 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror the original design.
Wind tunnel tested. Validated for cooling performance in laboratory testing.
Built with a 1-row aluminum core for efficient heat transfer.
Cross-references APDI 8012738, Hayden 2738 and Hayden 2739 for the same application. See all 9.
CSF 3269 Radiator Overview
The CSF 3269 radiator is an OE-style replacement built with a plastic tank and aluminum core for direct-fit cooling service. It is engineered for the 2004-2006 Dodge Durango and 2007-2009 Chrysler Aspen, with fitment matched to the listed applications and down-flow configuration.
CSF’s radiator line is manufactured to high-performance standards and validated through wind-tunnel testing for cooling performance. The brand also offers a broad catalog of radiator designs for many vehicle platforms, and this CSF 3269 follows an OEM-style construction approach for dependable replacement service.
Key Features
- Part number: CSF 3269
- 1-row radiator with aluminum core and plastic tanks
- Down-flow design
- Core thickness: 1 1/4 in.
- Core dimensions: 19 3/16 in. wide x 24 1/8 in. long
- Inlet diameter: 1 3/4 in. left
- Outlet diameter: 1 13/16 in. right
- OE-style plastic tank and aluminum core construction
- Compatible with 2004-2006 Dodge Durango and 2007-2009 Chrysler Aspen
Detailed Description
This radiator is designed for direct replacement in the 2004-2006 Dodge Durango and 2007-2009 Chrysler Aspen applications listed in the fitment data. The CSF 3269 uses a 1-row aluminum core with plastic tanks, matching the OE-style layout commonly used on these vehicles for factory-style cooling system service. The part number 3269 is also referenced in aftermarket catalogs for the same application, including APDI 8012738, Hayden 2738/2739, and Spectra Premium CU2738/CU2739.
With a down-flow configuration, left-side inlet, and right-side outlet, this radiator is built around the dimensions and connection points needed for the specified Durango and Aspen models. The CSF 3269 is a practical choice when replacing a leaking, clogged, or damaged radiator on these vehicles.
What This Radiator Helps Address
- Coolant leaks from cracked tanks or aged seams
- Restricted coolant flow from internal buildup
- Overheating caused by reduced heat transfer
- Physical damage to the radiator core or end tanks
- Cooling system service on OE-style replacement applications
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet orientation, and mounting layout against the original unit before installation. This radiator does not include a cap, and the listed CSF cap number is 4539 if a matching cap is needed separately. Inspect hoses, clamps, and surrounding cooling system components during replacement to help ensure proper operation after installation.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered to high-performance standards. The brand also notes laboratory wind-tunnel testing for cooling validation, supporting the design and manufacturing process behind the CSF 3269 radiator.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Chrysler | Aspen | 5.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2009 | Chrysler | Aspen | 4.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2008 | Chrysler | Aspen | 5.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2008 | Chrysler | Aspen | 4.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2007 | Chrysler | Aspen | 5.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2007 | Chrysler | Aspen | 4.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Durango | 5.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Durango | 3.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Dodge | Durango | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Durango | 3.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Durango | 5.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2005 | Dodge | Durango | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2004 | Dodge | Durango | 5.7L | V8 | N/A | OE Style Design; w/ 15/16" Thick Core; 1 Row Plastic Tank Aluminum Core |
| 2004 | Dodge | Durango | 4.7L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2004 | Dodge | Durango | 3.7L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
