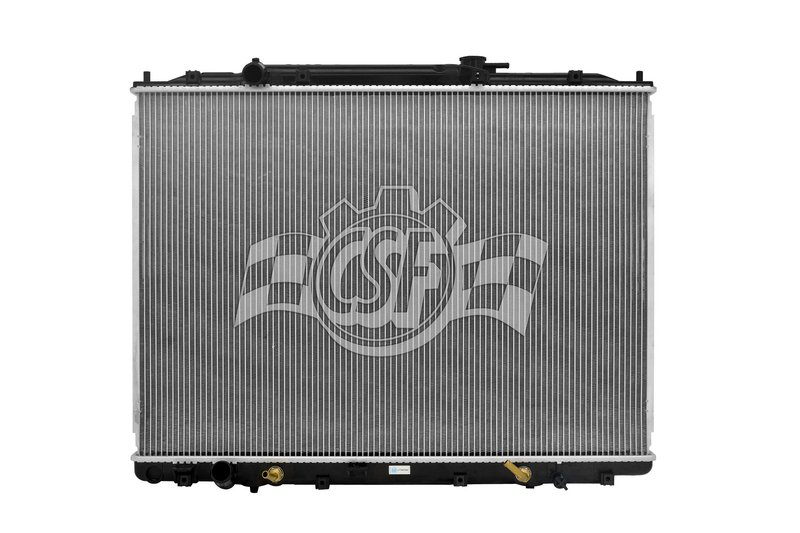

CSF 3284 Radiator
| Brand | CSF 3284 |
|---|---|
| Box Height (in) | 5 11/16 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 27 7/8 |
| Cap Included | No |
| Core Length | 21 5/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 30 3/8 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 31 1/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Left |
| Outlet Length (in) | 31 1/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Honda · 4 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror original equipment design.
Wind tunnel tested. Validated for cooling performance in lab conditions.
1-row design. A single-row core helps keep the radiator compact and efficient.
Cross-references Anchor 2830, APDI 8012830 and Spectra Premium CU2830 for the same application. See all 7.
Honda Ridgeline Radiator Replacement
This CSF radiator is built for 2006-2009 Honda Ridgeline applications with an OE-style plastic tank and aluminum core design. Part number 3284 is engineered for direct-fit cooling system service on the Ridgeline, with dimensions and hose connections matched to the listed vehicle application.
Key Features
- 1-row radiator design with a 7/8-inch core thickness
- Aluminum core with plastic tanks for OE-style construction
- Down-flow configuration
- Core dimensions: 30 3/8 inches wide by 21 5/8 inches long
- 1 1/4-inch left inlet and 1 1/4-inch left outlet
- Integrated high-efficiency concentric oil cooler, 14 3/4 inches
- Cap not included; CSF cap number 4514 is listed separately
- CSF part number 3284
Product Details
CSF 3284 is a radiator for the 2006-2009 Honda Ridgeline that follows an OE-style plastic tank and aluminum core layout. CSF manufactures radiators to performance-focused standards and validates cooling performance through wind tunnel testing, with broad manufacturing coverage across many vehicle applications. This radiator is designed around the listed inlet, outlet, and core measurements to support proper cooling system fitment on the Honda Ridgeline.
This part cross-references Spectra Premium CU2830 and APDI 8012830 for the same application.
Common Cooling System Issues Addressed
- Leaking radiator tanks or core seams
- Restricted coolant flow from an aging radiator
- Overheating caused by reduced heat transfer
- Damaged or corroded original radiator assemblies
- Cooling performance loss in a high-mileage Honda Ridgeline
Installation Notes and Tips
Compatible With 2006-2009 Honda Ridgeline, N/A. Verify the left-side inlet and outlet orientation, core dimensions, and oil cooler layout before installation. Use the specified micro 16 psi cap for the listed application, and confirm all hose and mounting points match the original radiator before final assembly.
Quality Assurance
CSF radiators are manufactured in ISO/TSO-certified facilities and built to validated cooling performance standards. The brand has supplied radiators worldwide for decades and supports a wide range of vehicle applications, including Honda Ridgeline radiator replacement needs.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Honda | Ridgeline | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2008 | Honda | Ridgeline | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Honda | Ridgeline | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Honda | Ridgeline | 3.5L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
