OE Quality
60-Day Returns

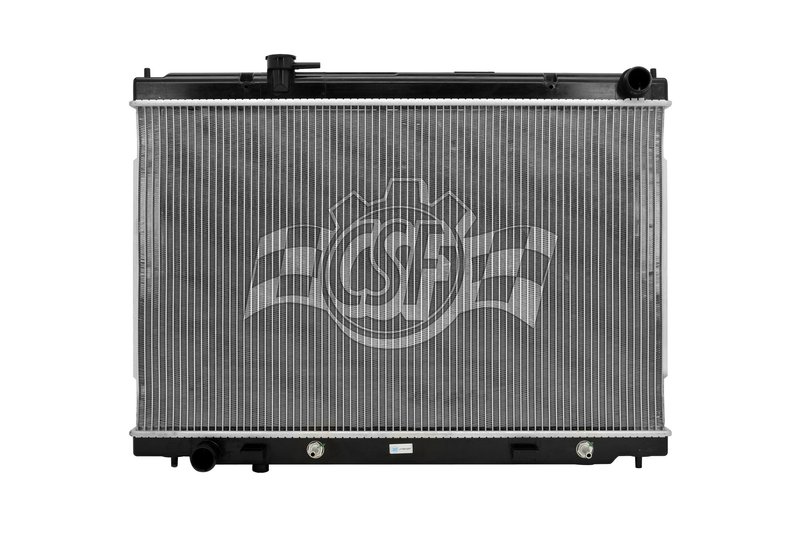

CSF 3289 Radiator
Overview of CSF Radiator for Infiniti M35
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3289) is designed specifically for the Infiniti M35. This radiator features a durable aluminum core combined with OE-style plastic tanks, providing reliable cooling performance tailored to your vehicle's needs.
- Core thickness: 5/8 inch
- Core dimensions: 29 1/16 inches width by 17 11/16 inches length
- Aluminum core material for efficient heat dissipation
- Plastic tanks designed to OEM specifications
- Down flow radiator type with 1 core row
- Inlet and outlet diameters: 1 3/8 inches (right inlet, left outlet)
- Includes a high-efficiency concentric type oil cooler measuring 14 3/4 inches
- Cap not included; compatible with CSF cap number 4502
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight plastic tanks with a robust aluminum core to balance durability and thermal efficiency. This product line is engineered to meet OEM standards, ensuring compatibility and performance for vehicles like the Infiniti M35. The single-row core design supports effective cooling while maintaining a compact form factor.
Product Description and Specifications
This radiator features a 5/8 inch thick aluminum core measuring 29 1/16 inches wide and 17 11/16 inches long, optimized for the Infiniti M35's cooling system. The down flow design facilitates efficient coolant movement through the single core row. Both inlet and outlet ports have a diameter of 1 3/8 inches, positioned on the right and left sides respectively, matching factory specifications. The plastic tanks are molded to OEM style, ensuring a precise fit and reliable sealing. Additionally, the integrated high-efficiency concentric oil cooler enhances engine oil temperature regulation.
Common Applications and Problem Solving
- Replacement for leaking or cracked radiators in Infiniti M35 models
- Addresses overheating issues caused by clogged or damaged cores
- Restores proper coolant flow with OEM-style inlet and outlet dimensions
- Improves engine oil cooling through the built-in oil cooler
- Suitable for vehicles requiring a down flow, single-row radiator design
Installation Notes and Tips
Ensure compatibility with Infiniti M35 before installation by verifying part number 3289. The radiator does not include a cap; use CSF cap number 4502 or an equivalent OEM cap. Handle plastic tanks carefully during installation to avoid damage. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal performance.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and plastic tanks for durability and performance. This radiator is free of hazardous materials and designed for long service life. Warranty details should be confirmed with the distributor or manufacturer, as they may vary.
| Brand | CSF |
| Part Number | 3289 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 31 7/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 24 5/16 |
| Cap Included | No |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 29 1/16 |
| Csf Cap Number | 4502 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Right |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | INFINITI | M35 | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | INFINITI | M35 | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | INFINITI | M35 | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
