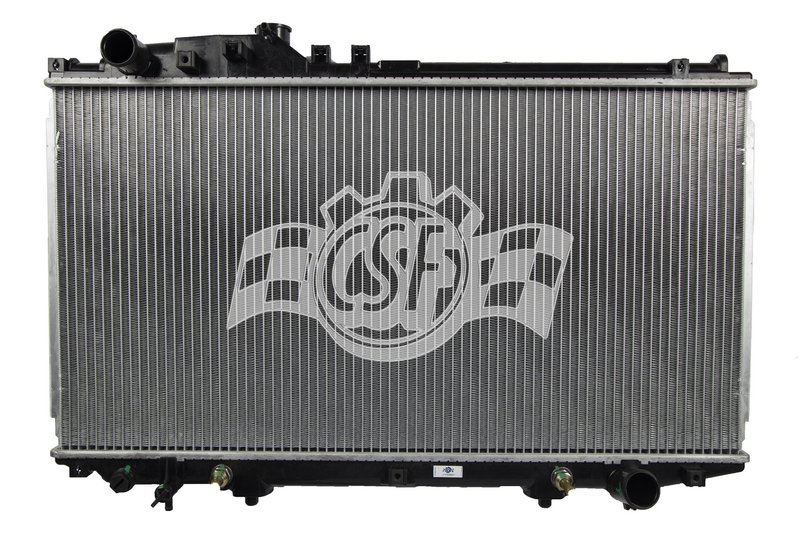

CSF 3300 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

CSF 3300 Radiator

Brand CSF 3300
Box Height (in) 5 1/2
Box Length (in) 32 5/8
Box Weight (lbs) 11
Box Width (in) 22 3/4
Cap Included No
Core Length 15 3/4
Core Material Aluminum
Core Thickness 7/8
Core Width 29 13/16
Csf Cap Number 4513
Down Flow Or Cross Flow Type Down Flow
Hazardous Material No
Inlet Diameter 1 1/2 Left
Inlet Length (in) 30 1/4
Inlet Width (in) 1 5/8
Oil Cooler (in) 14 3/4 (high-effeciency Concentric Type)
Outlet Diameter 1 1/2 Right
Outlet Length (in) 30 1/4
Outlet Width (in) 1 5/8
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core.
Product line 1 Row Plastic Tank Aluminum Core
Fits Lexus · 9 vehicles

OE-style construction. Plastic tanks and an aluminum core mirror the original design.

1-row core. A single-row layout helps keep the radiator compact and efficient.

Wind tunnel tested. Validated for cooling performance in lab testing.

Cross-references AP Exhaust 2575, APDI 8012575 and 16400-50280 for the same application. See all 5.

$126.15Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $126.15
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

OE-Style Cooling for Lexus SC430

This CSF radiator is built for the 2002-2010 Lexus SC430 with an OE-style plastic tank and aluminum core design. Part number 3300 is engineered for direct cooling-system replacement needs where factory-style fitment and dependable heat transfer matter.

Key Features

  • 1-row down-flow radiator design
  • Aluminum core with plastic tanks
  • Core thickness: 7/8 in.
  • Core width: 29 13/16 in. and core length: 15 3/4 in.
  • 1 1/2 in. inlet on the left and 1 1/2 in. outlet on the right
  • OE-style plastic tank and aluminum core construction
  • CSF part number 3300

Product Details

CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind-tunnel testing. The brand supplies a wide range of radiator applications across many vehicle platforms, and this CSF 3300 follows that OE-style approach for the Lexus SC430. It uses a single-row aluminum core with plastic tanks to match the factory-style layout while maintaining the dimensions and hose connections needed for proper cooling-system service.

Compatible with Lexus SC430 models, this radiator is listed for 2010 Lexus SC430 and 2002-2009 Lexus SC430 with OE style design notes. The CSF 3300 is a practical choice when replacing a worn or leaking radiator on a Lexus SC430 and when maintaining the original down-flow configuration is important.

This part cross-references APDI 8012575 and AP Exhaust 2575 for the same application.

Common Cooling Issues It Can Address

  • Coolant leaks from cracked or aged radiator tanks
  • Reduced cooling efficiency from a restricted or damaged core
  • Overheating caused by radiator deterioration
  • Fitment problems when replacing a factory-style Lexus SC430 radiator
  • Cooling-system service needs on a 2002-2010 Lexus SC430

Installation Notes and Tips

Verify inlet and outlet orientation before installation: this radiator uses a 1 1/2 in. left inlet and 1 1/2 in. right outlet. The listing notes no cap is included, and the CSF cap number referenced for this application is 4513. For 2002-2009 Lexus SC430 applications, the fitment notes specify use of a Micro, 16 psi cap. Confirm hose routing, mounting points, and transmission or oil-cooler connections against the vehicle before final assembly.

Quality Assurance

CSF radiators are manufactured in ISO/TSO certified facilities and built to validated cooling-performance standards. Part number 3300 reflects CSF’s OE-style radiator construction for Lexus SC430 applications, with the brand’s long-running radiator manufacturing experience supporting product consistency.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2010LexusSC4304.3LV8N/A1 Row Plastic Tank Aluminum Core
2009LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2008LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2007LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2006LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2005LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2004LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2003LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2002LexusSC4304.3LV8N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AP Exhaust — 2575APDI — 801257516400-50280CU2575LX3010122
