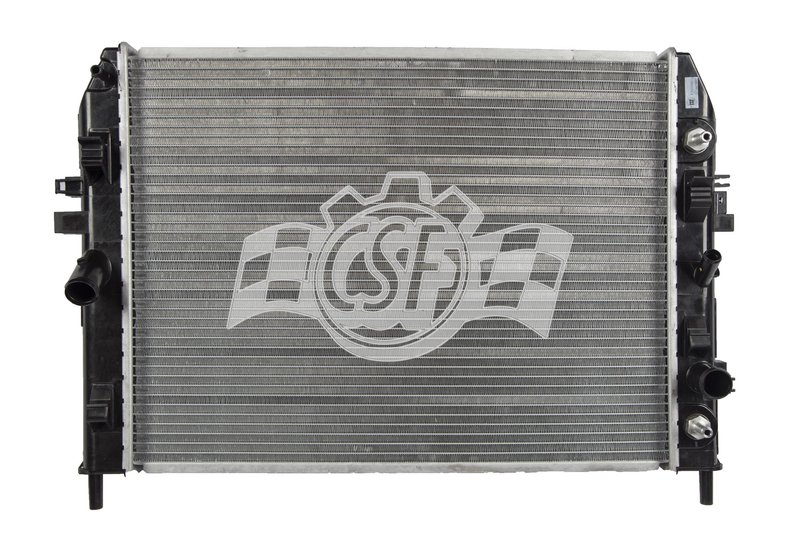

CSF 3302 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

CSF 3302 Radiator

Brand CSF 3302
Box Height (in) 6
Box Length (in) 29
Box Weight (lbs) 9
Box Width (in) 21
Cap Included No
Core Length 21 5/8
Core Material Aluminum
Core Thickness 11/16
Core Width 16 3/4
Down Flow Or Cross Flow Type Cross Flow
Hazardous Material No
Inlet Diameter 1 1/4 Left
Inlet Length (in) 17 5/16
Inlet Width (in) 1 9/16
Oil Cooler (in) 11 13/16 (high-efficiency Plate Type)
Outlet Diameter 1 1/4 Right
Outlet Length (in) 17 5/16
Outlet Width (in) 1 9/16
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core.
Product line 1 Row Plastic Tank Aluminum Core
Fits Mazda · 10 vehicles

OE-style design. Plastic tanks and an aluminum core match the original equipment layout.

Cross-flow construction. Promotes efficient coolant flow through the radiator core.

Wind tunnel tested. Validated for cooling performance in laboratory testing.

Cross-references Anchor 2861, APDI 8012861 and Spectra Premium CU2861 for the same application. See all 9.

$135.01Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $135.01
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

CSF 3302 Radiator for Mazda MX-5 Miata

CSF 3302 is an OE-style radiator built with a plastic tank and aluminum core layout for Mazda MX-5 Miata applications. It uses a cross-flow design with left-side inlet and right-side outlet sizing to match the listed fitments and cooling system layout.

Key Features

  • Brand line: 1-row plastic tank, aluminum core construction
  • Core material: aluminum with plastic end tanks
  • Cross-flow radiator design
  • Core thickness: 11/16 in.
  • Core dimensions: 16 3/4 in. wide x 21 5/8 in. long
  • Inlet diameter: 1 1/4 in., left side
  • Outlet diameter: 1 1/4 in., right side
  • Integrated high-efficiency plate-type oil cooler: 11 13/16 in.
  • OE-style plastic tanks and aluminum core construction

Product Details

CSF designs and manufactures radiators to high-performance standards, with engineering validation that includes wind-tunnel testing for cooling performance. Part number 3302 follows an OE-style layout for Mazda MX-5 Miata cooling system service, making it a direct replacement choice for 2006-2015 Mazda MX-5 Miata radiator applications. This part cross-references Spectra Premium CU2861 for the same application.

What This Radiator Helps Address

  • Coolant leaks from aging plastic tank radiator assemblies
  • Restricted coolant flow caused by internal radiator wear
  • Overheating from reduced heat transfer efficiency
  • Damaged or corroded radiator core surfaces
  • Cooling system service needs on Mazda MX-5 Miata models

Installation Notes and Tips

  • Verify inlet and outlet orientation before installation: left inlet, right outlet.
  • Confirm fitment against the vehicle year and cooling system configuration listed for your Mazda MX-5 Miata.
  • Inspect hoses, clamps, and coolant condition during radiator replacement.
  • Bleed the cooling system carefully after installation to remove trapped air.
  • Check clearance around the radiator support and attached cooling components before final assembly.

Quality Assurance

CSF manufactures radiators in ISO/TSO-certified facilities and supplies a broad range of radiator designs for major vehicle applications worldwide. Part number 3302 is built to OE-style specifications for Mazda MX-5 Miata cooling system service and replacement.

Fitment

  • Fits 2014-2015 Mazda MX-5 Miata, N/A, 1 Row Plastic Tank Aluminum Core
  • Fits 2006-2013 Mazda MX-5 Miata, N/A, OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2015MazdaMX-5 Miata2.0LL4N/A1 Row Plastic Tank Aluminum Core
2014MazdaMX-5 Miata2.0LL4N/A1 Row Plastic Tank Aluminum Core
2013MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2012MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2011MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2010MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2009MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2008MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2007MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
2006MazdaMX-5 Miata2.0LL4N/AOE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 2861APDI — 8012861Spectra Premium — CU2861LFG1-15-200 DLFG1-15-200 ELFG2-15-200 DLFG2-15-200 EMA3010218MA3010219
