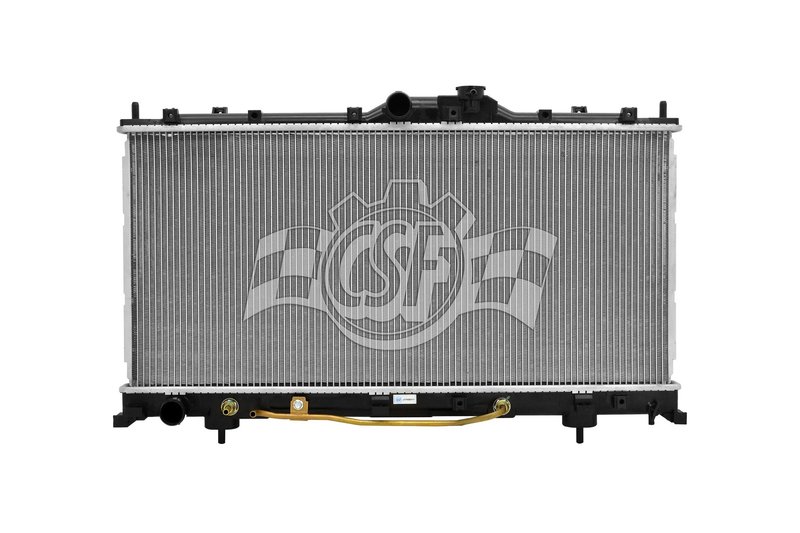

CSF 3304 Radiator
| Brand | CSF 3304 |
|---|---|
| Box Height (in) | 5 11/16 |
| Box Length (in) | 32 13/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 21 3/16 |
| Cap Included | No |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 29 3/8 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Centre |
| Inlet Length (in) | 30 1/4 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 30 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Mitsubishi · 7 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror original equipment design.
Wind tunnel tested. Validated for cooling performance in lab testing.
1-row design. A straightforward radiator layout for efficient cooling.
Cross-references Anchor 2842, APDI 8012842 and Spectra Premium CU2842 for the same application. See all 9.
OE-Style Cooling for Eclipse
CSF Radiator 3304 is an OE-style replacement built with a plastic tank and aluminum core layout for the 2006-2012 Mitsubishi Eclipse. It is engineered for direct-fit cooling performance with the inlet and outlet locations matched to the application.
The CSF 1 Row Plastic Tank Aluminum Core line focuses on factory-style construction with performance validation. CSF manufactures a wide range of radiator designs for major vehicle platforms, and this radiator follows that approach with a down-flow configuration and a high-efficiency concentric oil cooler section.
Key Features
- Fits 2006-2012 Mitsubishi Eclipse, N/A
- CSF part number 3304
- 1-row down-flow radiator design
- Plastic tanks with aluminum core construction
- Core thickness: 5/8 in.
- Core width: 29 3/8 in.; core length: 13 3/4 in.
- Inlet diameter: 1 3/8 center; outlet diameter: 1 3/8 left
- High-efficiency concentric oil cooler section: 14 3/4 in.
- OE-style plastic tank and aluminum core layout
Detailed Description
CSF 3304 is a radiator for the Mitsubishi Eclipse that uses an OE-style plastic tank and aluminum core design. The single-row, down-flow layout is sized for the listed application and includes the specified inlet and outlet placement for proper routing in the engine bay. This radiator is built to match factory-style cooling system architecture while maintaining the dimensional and connection details needed for a direct replacement.
CSF states that its radiators are engineered to performance standards, validated in wind tunnel testing, and produced in ISO/TSO-certified factories. For buyers searching for a 2006-2012 Mitsubishi Eclipse radiator or a CSF 3304 replacement radiator, this unit provides the factory-style configuration commonly used in OE service applications. This part cross-references Spectra Premium CU2842 for the same application.
What It Helps Address
- Overheating caused by a worn or restricted radiator
- Coolant leaks from aging plastic tank construction
- Reduced heat transfer from a deteriorated core
- Fitment issues when replacing an OE-style Mitsubishi Eclipse radiator
- Cooling system service needs on 2006-2012 Mitsubishi Eclipse models
Installation Notes and Tips
Verify the inlet and outlet locations, core dimensions, and oil cooler configuration before installation. This radiator does not include a cap, and the listed application notes specify use of a Micro, 16 psi cap. Inspect hoses, clamps, and surrounding cooling system components during replacement to help ensure proper sealing and flow.
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and validates designs for cooling performance. The brand has supplied radiators worldwide for decades and offers a broad catalog of OE-style replacement applications, including the CSF 3304 for Mitsubishi Eclipse service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2011 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2009 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2008 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Mitsubishi | Eclipse | 3.8L | V6 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
