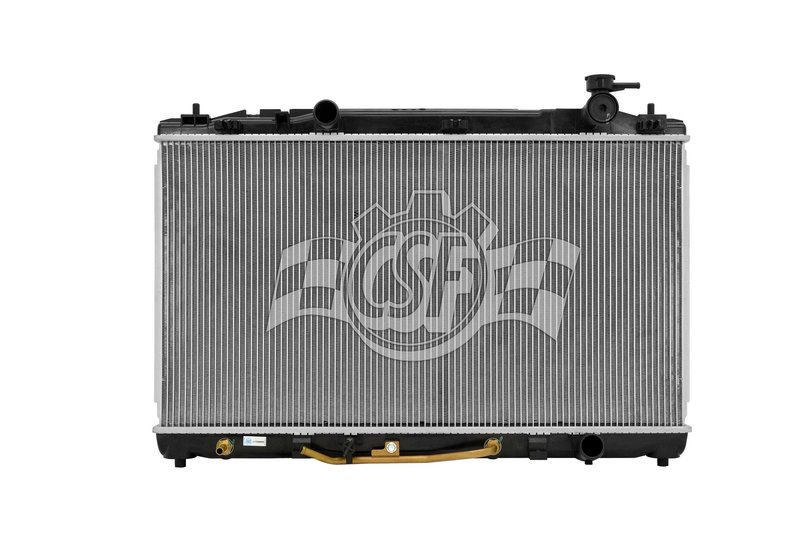

CSF 3312 Radiator
Overview of CSF 3312 Radiator for Toyota Camry
The CSF 3312 radiator is designed specifically for Toyota Camry models, featuring a durable aluminum core paired with plastic tanks. This radiator offers reliable cooling performance with a down flow design and precise fitment to maintain your vehicle's engine temperature effectively.
- Core thickness: 5/8 inch
- Core width: 29 1/16 inches
- Core length: 15 3/4 inches
- Aluminum core material with plastic tanks
- Down flow radiator type with 1 core row
- Inlet and outlet diameter: 1 3/8 inches (left inlet, right outlet)
- Includes high-efficiency concentric oil cooler (14 3/4 inches)
- Cap not included (compatible with CSF cap number 4514)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to provide a balance of durability and efficient heat dissipation. This product line is engineered to meet the cooling demands of vehicles like the Toyota Camry, ensuring proper engine temperature regulation with a single core row design optimized for down flow cooling systems.
Technical Description and Specifications
The CSF 3312 radiator features a 5/8 inch thick aluminum core measuring 29 1/16 inches wide and 15 3/4 inches long. The plastic tanks are designed to withstand typical operating conditions while reducing weight. The radiator’s down flow configuration supports effective coolant circulation, with inlet and outlet diameters both at 1 3/8 inches positioned on the left and right sides respectively. Additionally, the integrated high-efficiency concentric oil cooler (14 3/4 inches) enhances engine oil cooling, contributing to overall engine performance and longevity.
Common Applications and Problem Solving
- Replacement for leaking or damaged radiator in Toyota Camry
- Improves engine cooling efficiency in overheating conditions
- Restores proper coolant flow in vehicles with compromised radiator cores
- Supports engine oil cooling to prevent overheating and maintain performance
- Compatible upgrade for vehicles requiring OEM-style plastic tank radiators
Installation Notes and Tips
When installing the CSF 3312 radiator, ensure compatibility with your Toyota Camry model year and engine configuration. The radiator does not include a cap, so use the CSF cap number 4514 or an equivalent OEM cap. Verify inlet and outlet hose diameters (1 3/8 inches) for proper hose fitment. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal coolant circulation.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM specifications, using high-quality aluminum cores and durable plastic tanks. This radiator is free of hazardous materials and designed for long-term reliability. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties to cover defects in materials and workmanship.
| Brand | CSF |
| Part Number | 3312 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 4/16 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 22 15/16 |
| Cap Included | No |
| Core Length | 15 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 29 1/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Right |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Toyota | Camry | 2.4L | L4 | ELECTRIC/GAS | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Toyota | Camry | 2.4L | L4 | ELECTRIC/GAS | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2009 | Toyota | Camry | 2.4L | L4 | N/A | OE Style Design; Hybrid & Non-Hybrid Models; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core | |
| 2008 | Toyota | Camry | 2.4L | L4 | N/A | OE Style Design; Hybrid & Non-Hybrid Models; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core | |
| 2007 | Toyota | Camry | 2.4L | L4 | N/A | OE Style Design; Hybrid & Non-Hybrid Models; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
