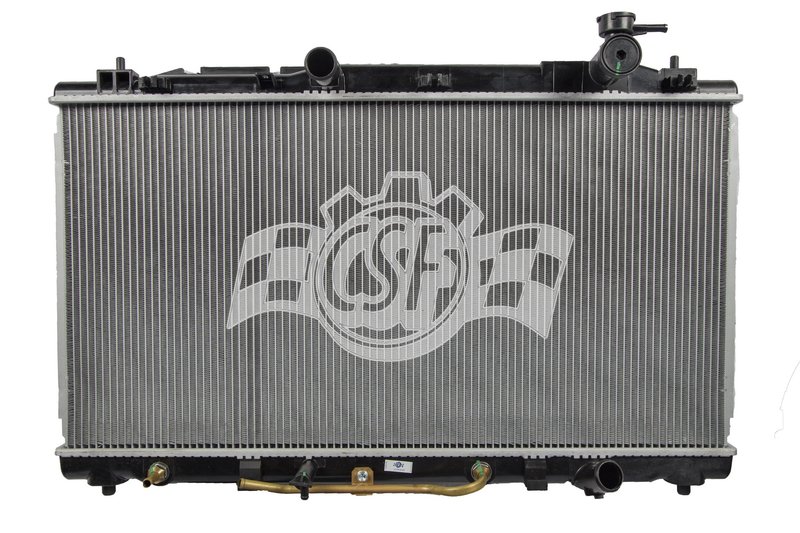

CSF 3313 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

CSF 3313 Radiator

Brand CSF 3313
Box Height (in) 6 1/16
Box Length (in) 32 13/16
Box Weight (lbs) 12
Box Width (in) 23 1/8
Cap Included No
Core Length 15 3/4
Core Material Aluminum
Core Thickness 7/8
Core Width 30 3/8
Csf Cap Number 4514
Down Flow Or Cross Flow Type Down Flow
Hazardous Material No
Inlet Diameter 1 3/8 Left
Inlet Length (in) 31
Inlet Width (in) 1 5/8
Oil Cooler (in) 14 3/4 (high-effeciency Concentric Type)
Outlet Diameter 1 3/8 Right
Outlet Length (in) 31 1/16
Outlet Width (in) 1 5/8
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core.
Product line 1 Row Plastic Tank Aluminum Core
Fits Toyota and Lexus · 27 vehicles

OE-style construction. Plastic tanks and an aluminum core mirror the original design.

Wind tunnel tested. Validated for cooling performance in lab testing.

Down-flow design. Built for efficient coolant flow through the radiator.

Cross-references Anchor 2817, Anchor 2919 and APDI 8012817 for the same application. See all 16.

$119.20Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $119.20
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

OE-Style Radiator for Toyota and Lexus Applications

CSF 3313 is an OE-style radiator built with a plastic tank and aluminum core for direct-fit cooling system service. It is designed for vehicles that need a down-flow radiator layout with left-side inlet and right-side outlet connections, including select Toyota Venza, Lexus ES350, Toyota Avalon, and Toyota Camry applications.

The CSF 1 Row Plastic Tank Aluminum Core line focuses on factory-style fitment and cooling performance validation. CSF manufactures a wide range of radiator designs, and this unit reflects that approach with an aluminum core, plastic tanks, and an OEM-style configuration for common Asian vehicle platforms.

Key Features

  • Part number: 3313
  • 1-row radiator design
  • Aluminum core with plastic tanks
  • Down-flow construction
  • Core thickness: 7/8 in.
  • Core width: 30 3/8 in.
  • Core length: 15 3/4 in.
  • Inlet diameter: 1 3/8 in., left
  • Outlet diameter: 1 3/8 in., right
  • OEM-style plastic tank and aluminum core construction

Detailed Description

CSF 3313 is engineered as a direct replacement radiator for cooling system repair on select Toyota and Lexus vehicles. The aluminum core helps transfer heat efficiently, while the plastic tanks follow the original equipment style used on many factory radiator assemblies. This radiator is built in a down-flow configuration and does not include a cap.

Fits 2009-2016 Toyota Venza, N/A; Fits 2007-2012 Lexus ES350, N/A; Fits 2005-2012 Toyota Avalon, N/A; Fits 2007-2011 Toyota Camry, N/A. This part cross-references Spectra Premium CU2817 and CU2919 for the same application.

Common Cooling System Issues It Can Address

  • Cracked or leaking radiator tanks
  • Restricted coolant flow from internal radiator wear
  • Overheating caused by reduced heat dissipation
  • Corrosion or damage in the original radiator core
  • Cooling system service needs on aging factory-style radiators

Installation Notes and Tips

Verify inlet and outlet orientation before installation: inlet is 1 3/8 in. on the left and outlet is 1 3/8 in. on the right. This radiator is listed for OE-style design and uses a micro, 16 psi cap on the supported applications; cap is not included. Confirm vehicle build details for Toyota Camry applications noted as USA & Japan built.

Quality Assurance

CSF states that its factories are ISO/TSO certified and that its radiators are engineered and wind tunnel tested for cooling performance validation. The brand has supplied radiators worldwide for more than 50 years and offers a broad catalog of radiator designs for leading vehicle platforms.

Related reading

This part fits 27 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2016ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2015ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2014ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2013ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2012LexusES3503.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2012ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2012ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2011LexusES3503.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2011ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2011ToyotaCamry3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; USA & Japan Built; 1 Row Plastic Tank Aluminum Core
2011ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2010LexusES3503.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2010ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2010ToyotaCamry3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; USA & Japan Built; 1 Row Plastic Tank Aluminum Core
2010ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2009LexusES3503.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2009ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2009ToyotaCamry3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; USA & Japan Built; 1 Row Plastic Tank Aluminum Core
2009ToyotaVenza3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2008LexusES3503.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2008ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2008ToyotaCamry3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; USA & Japan Built; 1 Row Plastic Tank Aluminum Core
2007LexusES3503.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2007ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2007ToyotaCamry3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; USA & Japan Built; 1 Row Plastic Tank Aluminum Core
2006ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2005ToyotaAvalon3.5LV6N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 2817Anchor — 2919APDI — 8012817APDI — 8012919APDI — 8013035Bosch — 13035Spectra Premium — CU2817Spectra Premium — CU2919Spectra Premium — CU1303516400 - 0P22016400 - 3152016400 - AD01016400 - AD020TO3010300TO3010313TO3010318
