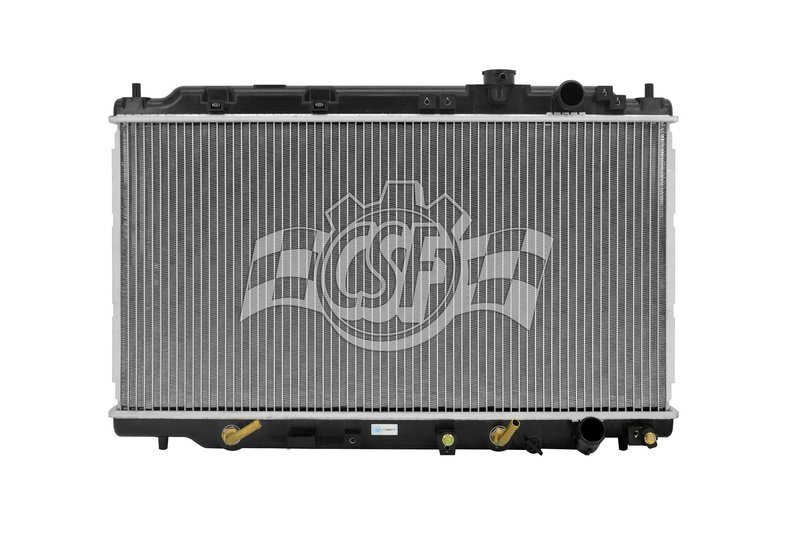

CSF 3320 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator, part number 3320, is engineered for Acura Integra models requiring reliable cooling performance. This radiator features a durable aluminum core combined with OE-style plastic tanks, designed to maintain optimal engine temperatures under various driving conditions.
- Core thickness: 5/8 inch
- Core width: 26 5/16 inches
- Core length: 13 3/4 inches
- Aluminum core with plastic tanks
- Down flow design for efficient coolant circulation
- Inlet and outlet diameter: 1 1/4 inches, both on the right side
- Single core row configuration
- Includes high-efficiency concentric type oil cooler (12 13/16 inches)
- Box dimensions: 29 1/16" L x 19 13/16" W x 5 11/16" H
- Box weight: 8 lbs
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight aluminum cores with OE-style plastic tanks to provide a balance of durability and efficient heat dissipation. This line is designed to offer a multifit solution compatible with various vehicle models, including the Acura Integra, ensuring proper fitment and performance without compromising cooling capacity.
Product Description and Specifications
This radiator features a 5/8 inch thick aluminum core measuring 26 5/16 inches wide and 13 3/4 inches long, optimized for down flow coolant movement. Both the inlet and outlet are positioned on the right side with a diameter of 1 1/4 inches, facilitating straightforward hose connections. The single-row core design supports effective heat exchange while maintaining a compact profile. Additionally, the integrated high-efficiency concentric oil cooler (12 13/16 inches) enhances engine oil temperature regulation, contributing to overall engine longevity.
Applications and Common Issues Addressed
- Replacement for leaking or damaged radiators in Acura Integra vehicles
- Resolves overheating caused by clogged or inefficient cooling cores
- Addresses coolant flow restrictions due to corrosion or core damage
- Improves engine oil cooling with integrated oil cooler for enhanced performance
- Suitable for vehicles requiring OE-style plastic tank radiators with aluminum cores
Installation Notes and Tips
- Ensure compatibility with Acura Integra models before installation
- Check hose diameters and inlet/outlet positions to match existing setup
- Drain coolant system completely before removing the old radiator
- Inspect and replace radiator hoses and clamps as needed during installation
- Bleed the cooling system properly after installation to avoid air pockets
Quality Assurance and Warranty
The CSF 1 Row Plastic Tank Aluminum Core Radiator (part number 3320) is manufactured to meet OEM specifications for fit and function. It is constructed without hazardous materials and designed for durability and reliable cooling performance. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
| Brand | CSF |
| Part Number | 3320 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 29 1/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 19 13/16 |
| Cap Included | No |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 26 5/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Right |
| Inlet Length (in) | 26 15/16 |
| Inlet Width (in) | 1 5/16 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/4 Right |
| Outlet Length (in) | 26 15/16 |
| Outlet Width (in) | 1 3/4 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model to accommodate various fan shrouds. |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2000 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1999 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1998 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 1997 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/SAK (Showa); 1 Row Plastic Tank Aluminum Core |
| 1996 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/SAK (Showa); 1 Row Plastic Tank Aluminum Core |
| 1995 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/SAK (Showa); 1 Row Plastic Tank Aluminum Core |
| 1994 | Acura | Integra | 1.8L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Denso/SAK (Showa); 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
