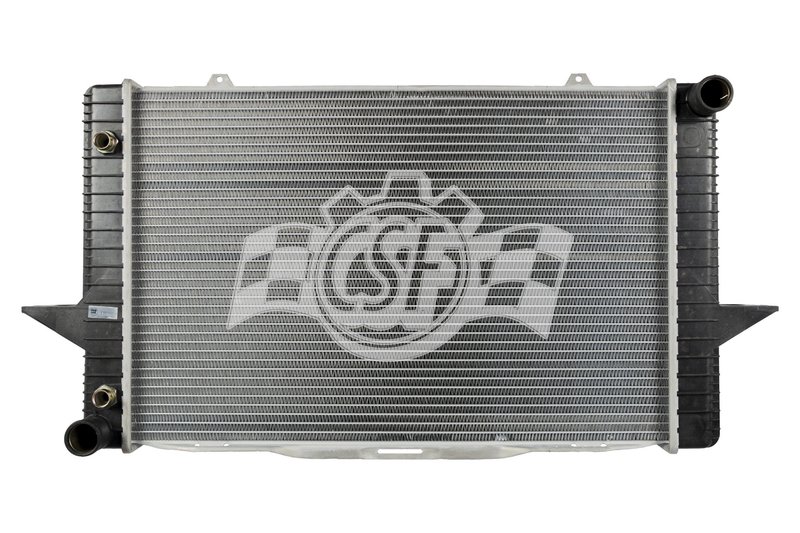

CSF 3331 Radiator
OE-Style Radiator for Volvo Cooling Service
CSF 3331 is a cross flow radiator built with an aluminum core and OEM-style plastic tanks for direct replacement service on select Volvo applications. It is engineered for cooling performance validation and uses quick-connect oil cooler fittings for the factory-style setup.
- 1-row cross flow radiator design
- Aluminum core with plastic tanks
- Core thickness: 1 1/4 in.
- Core size: 23 1/4 in. length x 15 5/16 in. width
- Inlet: 1 3/8 in. right
- Outlet: 1 3/8 in. left
- 11 in. high-efficiency plate-type oil cooler
- Cap not included
Product Line Details
CSF’s 1 Row Plastic Tank Aluminum Core line focuses on OE-style radiator construction with plastic end tanks and an aluminum heat exchanger. This design supports factory fitment on vehicles that use a cross flow layout and integrated oil cooler connections, including Volvo S70, Volvo V70, and Volvo 850 applications.
Detailed Description
CSF 3331 is a replacement radiator for 1998 Volvo S70, 1998 Volvo V70, and 1993-1997 Volvo 850. The radiator uses an aluminum core for heat transfer efficiency and plastic tanks to match the original equipment style. Its cross flow configuration, 1-row core, and quick-connect oil cooler fittings are built around the factory layout for these Volvo cooling systems. This part cross-references APDI 8012099 and AP Exhaust 2100 for the same application.
Common Cooling Issues Addressed
- Leaking radiator tanks or seams
- Restricted coolant flow from an aging core
- Transmission oil cooler connection wear at the radiator
- Overheating caused by reduced heat dissipation
- Cracked or brittle OE-style plastic end tanks
Installation Notes and Tips
Verify inlet and outlet orientation before installation: inlet is 1 3/8 in. on the right and outlet is 1 3/8 in. on the left. Confirm the vehicle uses the OE-style plastic tank and aluminum core layout with quick-connect oil cooler fittings. Inspect hoses, clamps, and coolant condition during radiator replacement to complete the cooling system service properly.
Quality Assurance
CSF manufactures radiators to high-performance standards in ISO/TSO-certified facilities and validates designs through wind tunnel testing for cooling performance. With decades of production experience and broad OE-style coverage, CSF 3331 is built for dependable replacement use on Volvo S70, Volvo V70, and Volvo 850 cooling systems.
| Brand | CSF |
|---|---|
| Part Number | 3331 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Core Thickness | 1 1/4 |
| Core Width | 15 5/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 23 1/4 |
| Inlet Diameter | 1 3/8 right |
| Outlet Diameter | 1 3/8 left |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 6 |
| Box Length (in) | 35 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 17 |
| Hazardous Material | No |
| Inlet Length (in) | 15 7/8 |
| Inlet Width (in) | 1 13/16 |
| Oil Cooler (in) | 11 (high-efficiency plate type) |
| Outlet Length (in) | 15 7/8 |
| Outlet Width (in) | 1 13/16 |
| Tech Note | O.e.m. style plastic tanks & aluminum core;with quick-connect oil |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Volvo | S70 | 2.4L | L5 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1998 | Volvo | V70 | 2.4L | L5 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1997 | Volvo | 850 | 2.4L | L5 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1996 | Volvo | 850 | 2.4L | L5 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1995 | Volvo | 850 | 2.4L | L5 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1994 | Volvo | 850 | 2.4L | L5 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1993 | Volvo | 850 | 2.4L | L5 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
