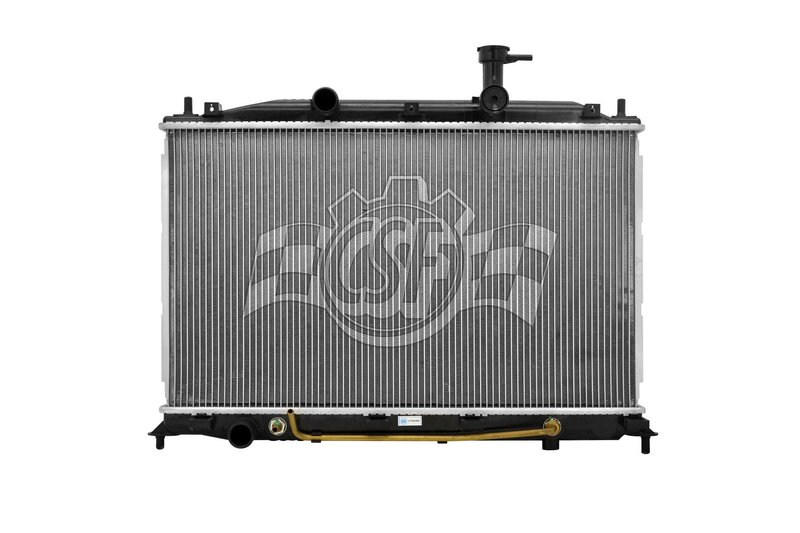

CSF 3339 Radiator
Overview of CSF 3339 Radiator for Hyundai Accent
The CSF 3339 radiator is designed specifically for Hyundai Accent models, providing reliable engine cooling with its durable construction. Featuring a 1 row plastic tank aluminum core, this radiator balances efficient heat dissipation with OEM-style materials for dependable performance.
- Core thickness: 5/8 inch
- Core width: 24 15/16 inches
- Core length: 14 3/4 inches
- Aluminum core with plastic tanks
- Down flow design for optimized coolant circulation
- Inlet and outlet diameter: 1 5/16 inches (left side)
- Includes high-efficiency concentric type oil cooler (14 9/16 inches)
- Radiator core row quantity: 1
- Cap not included (CSF cap number 4502 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines aluminum cores with OE-style plastic tanks to provide a balance of lightweight design and corrosion resistance. This product line is engineered to meet OEM specifications, ensuring compatibility and performance for vehicles like the Hyundai Accent. The single-row core thickness and down flow design contribute to effective cooling in a compact form factor.
Product Description and Specifications
The CSF 3339 radiator features a 5/8 inch thick aluminum core measuring 24 15/16 inches wide and 14 3/4 inches long. Its plastic tanks are designed to match OEM standards, providing durability and resistance to heat-related wear. The down flow configuration allows coolant to flow from top to bottom, enhancing heat transfer efficiency. Both the inlet and outlet have a diameter of 1 5/16 inches located on the left side, facilitating straightforward hose connections. Additionally, the radiator includes a high-efficiency concentric type oil cooler measuring 14 9/16 inches, which supports engine oil temperature regulation.
Common Applications and Issues Addressed
- Replacement for leaking or cracked radiators in Hyundai Accent vehicles
- Solves overheating problems caused by inefficient cooling
- Addresses coolant leaks from damaged plastic tanks
- Restores proper engine oil cooling with integrated oil cooler
- Improves coolant flow with down flow design for consistent engine temperature
Installation Notes and Tips
- Compatible with Hyundai Accent models requiring a 1 row radiator with plastic tanks and aluminum core
- Ensure inlet and outlet hose diameters (1 5/16 inches) match vehicle specifications
- Cap not included; use CSF cap number 4502 or OEM equivalent
- Check for proper fitment of mounting points before installation
- Flush cooling system prior to installation to prevent contamination
Quality Assurance and Warranty
The CSF 3339 radiator is manufactured to meet OEM standards, using high-quality aluminum and plastic materials for durability and corrosion resistance. While the product does not include a cap, it is compatible with CSF cap number 4502. This radiator is not classified as hazardous material and is designed for long-term service in Hyundai Accent vehicles. Warranty details should be confirmed with the distributor or manufacturer.
| Brand | CSF |
| Part Number | 3339 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 28 1/2 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 23 9/16 |
| Cap Included | No |
| Core Length | 14 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 24 15/16 |
| Csf Cap Number | 4502 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Left |
| Inlet Length (in) | 25 7/16 |
| Inlet Width (in) | 1 9/16 |
| Oil Cooler (in) | 14 9/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 5/16 Left |
| Outlet Length (in) | 25 7/16 |
| Outlet Width (in) | 1 9/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Hyundai | Accent | 1.6L | L4 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Hyundai | Accent | 1.6L | L4 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2009 | Hyundai | Accent | 1.6L | L4 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2008 | Hyundai | Accent | 1.6L | L4 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Hyundai | Accent | 1.6L | L4 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2006 | Hyundai | Accent | 1.6L | L4 | N/A | OE Style Design; Use Mini, 13 psi Cap; From 9/06; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
