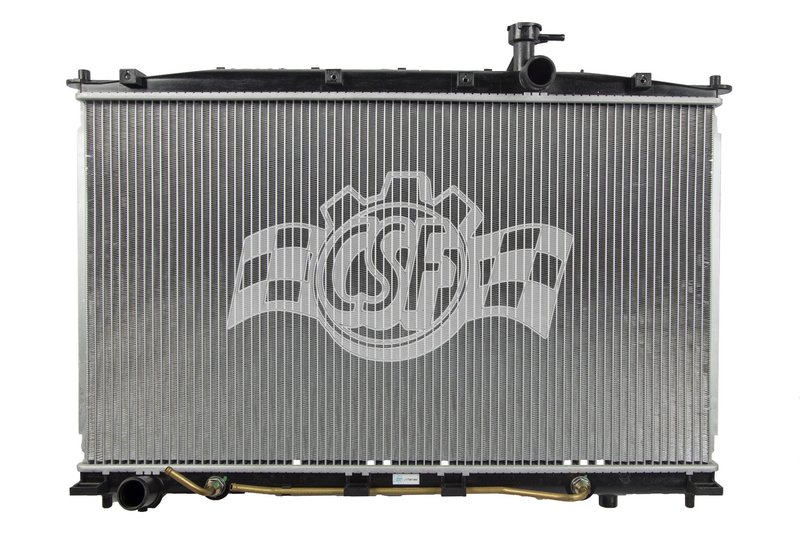

CSF 3342 Radiator
| Brand | CSF 3342 |
|---|---|
| Box Height (in) | 5 1/16 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 1/8 |
| Cap Included | No |
| Core Length | 17 1/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 13/16 |
| Csf Cap Number | 4503 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Right |
| Inlet Length (in) | 30 3/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 17 5/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 30 3/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Hyundai · 3 vehicles |
OE-style design. Plastic tanks and an aluminum core match the original construction.
Down-flow layout. Engineered for efficient coolant circulation and heat transfer.
Wind tunnel tested. Validated for cooling performance in lab testing.
Cross-references Anchor 2897, Anchor 2997 and APDI 8012897 for the same application. See all 9.
CSF 3342 Radiator for Hyundai Santa Fe
CSF 3342 is an OE-style radiator built with a 1-row aluminum core and plastic tanks for the 2007-2009 Hyundai Santa Fe. It is engineered for direct replacement use in the cooling system, with down-flow construction and factory-style inlet and outlet sizing.
Key Features
- Fits 2007-2009 Hyundai Santa Fe
- 1-row plastic tank aluminum core design
- Down-flow radiator construction
- Core thickness: 7/8 in.
- Core width: 29 13/16 in. and core length: 17 1/8 in.
- Inlet diameter: 1 3/8 in. right; outlet diameter: 1 3/8 in. left
- Oil cooler: 17 5/16 in. high-efficiency concentric type
- OE-style plastic tanks and aluminum core
- CSF part number 3342
Product Details
CSF 3342 is designed for the 2007, 2008, and 2009 Hyundai Santa Fe and follows an OE-style layout with plastic tanks and an aluminum core. The radiator uses a down-flow configuration and factory-matched inlet and outlet placement to support straightforward cooling-system replacement. CSF manufactures a wide range of radiator applications and states that its products are engineered and validated for cooling performance in laboratory testing.
This part cross-references Spectra Premium CU2997 for the same application.
Common Cooling System Issues
- Leaking radiator tanks or core seams
- Overheating from restricted coolant flow
- Damaged or corroded radiator core passages
- Cracked plastic end tanks
- Reduced cooling efficiency in a worn factory radiator
Installation Notes
Verify radiator dimensions, inlet and outlet orientation, and oil cooler connection style before installation. This radiator does not include a cap, and the listed CSF cap number is 4503. Confirm coolant hose routing and inspect related cooling-system components during replacement on the Hyundai Santa Fe.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are built to high-performance standards. The brand also notes long-term global production experience and wind-tunnel testing used to validate cooling performance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Hyundai | Santa Fe | 2.7L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Hyundai | Santa Fe | 2.7L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Hyundai | Santa Fe | 2.7L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
