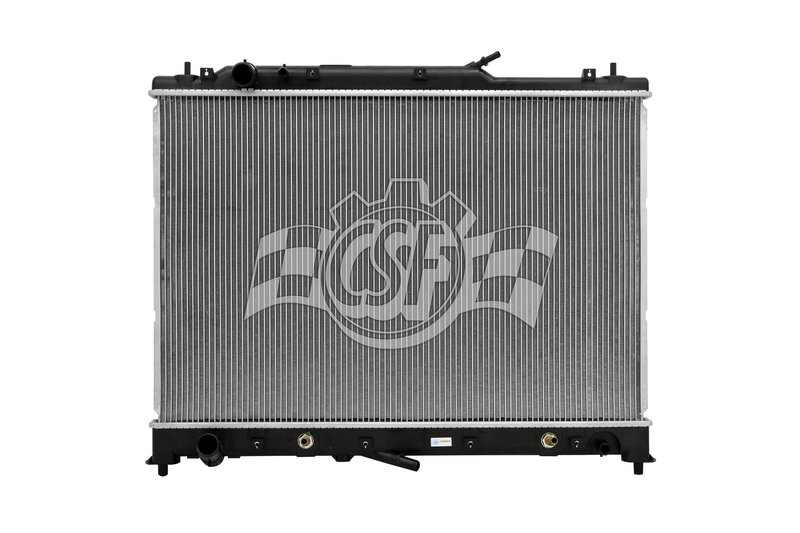

CSF 3344 Radiator
| Brand | CSF 3344 |
|---|---|
| Box Height (in) | 5 1/16 |
| Box Length (in) | 32 13/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 27 1/2 |
| Cap Included | No |
| Core Length | 19 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 29 11/16 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 30 3/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 30 3/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Mazda · 9 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror the original design.
Single-row core. Helps deliver efficient cooling performance in a compact layout.
Wind tunnel tested. Engineered and validated for cooling performance in the lab.
Cross-references Anchor 2985, Spectra Premium CU2986 and CY01-15-200 E for the same application. See all 4.
CSF 3344 Radiator for Mazda CX-9
CSF radiator part number 3344 is an OE-style replacement built with a plastic tank and aluminum core design for controlled engine cooling. It is engineered for 2007-2015 Mazda CX-9 applications, including standard cooling models and 2007-2013 vehicles without the tow package.
Key Features
- 1-row radiator design with an aluminum core and plastic tanks
- Core thickness: 5/8 in.
- Core dimensions: 29 11/16 in. wide by 19 3/4 in. long
- Down-flow configuration for OE-style cooling layout
- Inlet and outlet: 1 3/8 in. left
- Oil cooler: 14 3/4 in. high-efficiency concentric type
- Cap not included
- CSF part number 3344 for direct replacement planning
Product Details
This CSF radiator is built to match the OE-style plastic tank and aluminum core construction used in many factory cooling systems. CSF manufactures radiators to high-performance standards, with wind tunnel testing used to validate cooling performance and a broad catalog covering thousands of vehicle applications. For Mazda CX-9 owners, CSF 3344 provides a direct-fit cooling solution for 2014-2015 Mazda CX-9 standard cooling models and 2007-2013 Mazda CX-9 models without the tow package. This part also cross-references Spectra Premium CU2986 for the same application.
What It Helps Address
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked plastic tanks or aged seals
- Reduced cooling efficiency from a clogged or damaged core
- Temperature instability during daily driving
- Replacement needs after corrosion or impact damage
Installation Notes
Verify radiator dimensions, inlet and outlet orientation, and oil cooler connection style before installation. This radiator uses a down-flow layout with left-side inlet and outlet placement, so matching the original configuration is important for proper fitment. Confirm vehicle setup against the listed Mazda CX-9 fitment: Fits 2014-2015 Mazda CX-9, N/A; Fits 2007-2013 Mazda CX-9, N/A.
Quality Assurance
CSF factories are ISO/TSO certified, and the brand has supplied radiators worldwide for more than 50 years. CSF 3344 is engineered and tested to support consistent cooling performance in Mazda CX-9 applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Mazda | CX-9 | 3.7L | V6 | N/A | Standard Cooling; 1 Row Plastic Tank Aluminum Core |
| 2014 | Mazda | CX-9 | 3.7L | V6 | N/A | Standard Cooling; 1 Row Plastic Tank Aluminum Core |
| 2013 | Mazda | CX-9 | 3.7L | V6 | N/A | OE Style Design; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2012 | Mazda | CX-9 | 3.7L | V6 | N/A | OE Style Design; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2011 | Mazda | CX-9 | 3.7L | V6 | N/A | OE Style Design; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2010 | Mazda | CX-9 | 3.7L | V6 | N/A | OE Style Design; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2009 | Mazda | CX-9 | 3.7L | V6 | N/A | OE Style Design; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2008 | Mazda | CX-9 | 3.7L | V6 | N/A | OE Style Design; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
| 2007 | Mazda | CX-9 | 3.5L | V6 | N/A | OE Style Design; w/o Tow Package; 1 Row Plastic Tank Aluminum Core |
