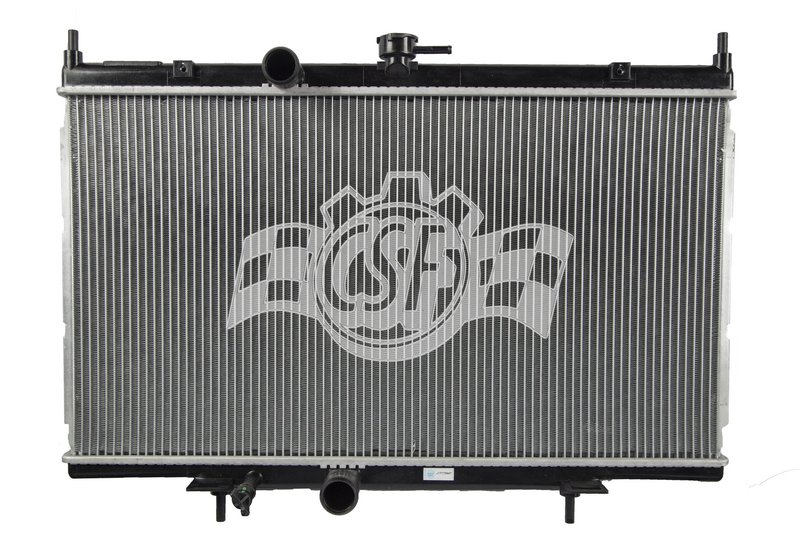

CSF 3346 Radiator

Overview of CSF 3346 Radiator for Nissan Sentra

The CSF 3346 radiator is designed specifically for Nissan Sentra models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation and long-lasting performance.

• Core thickness: 5/8 inch
• Core width: 26 11/16 inches
• Core length: 14 3/4 inches
• Aluminum core material with plastic tanks
• Down flow design with 1 3/8 inch inlet and outlet diameters on the left side
• Single core row for streamlined cooling
• Cap not included (CSF cap number 4503 compatible)

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This design supports effective heat transfer while maintaining compatibility with factory mounting points and connections. The single-row core thickness and dimensions are engineered to meet the cooling demands of vehicles like the Nissan Sentra without unnecessary bulk.

Technical Description and Specifications

The CSF 3346 radiator features a 5/8 inch thick aluminum core measuring 26 11/16 inches wide by 14 3/4 inches long. The plastic tanks are molded to OEM specifications, ensuring a precise fit and reliable sealing. Both the inlet and outlet have a diameter of 1 3/8 inches and are positioned on the left side, supporting a down flow coolant path. This radiator weighs approximately 8 pounds and comes in a box sized 29 1/4 inches by 21 15/16 inches by 5 11/16 inches. The design excludes a radiator cap but is compatible with CSF cap number 4503.

Common Applications and Problem Solving

• Replaces leaking or cracked radiator tanks in Nissan Sentra vehicles
• Restores proper engine cooling to prevent overheating
• Addresses reduced cooling efficiency due to clogged or damaged cores
• Suitable for vehicles requiring a down flow radiator configuration
• Ideal for maintenance or repair of OEM-style cooling systems

Installation Notes and Tips

When installing the CSF 3346 radiator, ensure the inlet and outlet hoses match the 1 3/8 inch diameter and left-side positioning. Verify compatibility with the Nissan Sentra model year and engine configuration. Since the radiator does not include a cap, use the CSF cap number 4503 or an equivalent OEM cap. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

CSF radiators are manufactured to meet OEM standards, using high-quality aluminum cores and durable plastic tanks. This radiator is free from hazardous materials and designed for long-term reliability. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
