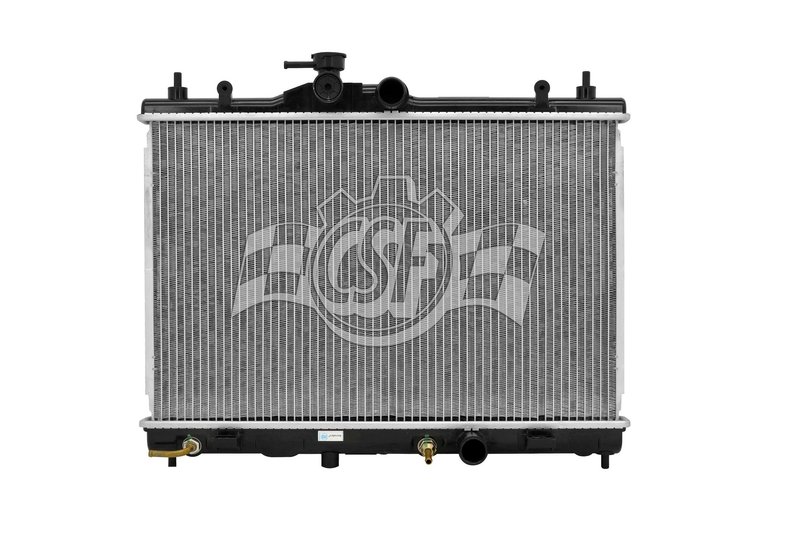

CSF 3347 Radiator
| Brand | CSF 3347 |
|---|---|
| Box Height (in) | 5 11/16 |
| Box Length (in) | 26 1/8 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 22 3/8 |
| Cap Included | No |
| Core Length | 15 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 23 1/8 |
| Csf Cap Number | 4503 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Centre |
| Inlet Length (in) | 24 3/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 11 13/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Right |
| Outlet Length (in) | 24 3/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Nissan · 3 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror the original design.
Wind tunnel tested. Validated for cooling performance in lab testing.
1-row design. A simpler radiator layout for efficient coolant flow.
Cross-references APDI 8012981, Hayden 2981 and Spectra Premium CU2981 for the same application. See all 7.
CSF 3347 Radiator for Versa Cooling Service
The CSF 3347 is an OE-style radiator built with a plastic tank and aluminum core for the 2007-2009 Nissan Versa. It is designed for direct replacement service where the original cooling layout uses a down-flow configuration and a mini 16 psi cap.
- OE-style plastic tank and aluminum core construction
- 1-row core design with 7/8 in. core thickness
- Down-flow radiator layout
- Inlet: 1 3/8 in. center; outlet: 1 3/8 in. right
- Core dimensions: 23 1/8 in. wide x 15 in. long
- Oil cooler section: 11 13/16 in. high-efficiency concentric type
- Cross-references APDI 8012981 and Hayden 2981
Product Details
CSF builds the 3347 radiator to match the original equipment style used on the Nissan Versa, with plastic end tanks and an aluminum core for standard cooling-system replacement. CSF states its radiators are engineered and validated through lab testing, including wind-tunnel evaluation, and the brand supplies a wide range of radiator applications across many vehicle platforms. This part number 3347 is listed for 2007-2009 Nissan Versa models without variable transmission, and the fitment notes specify use with a mini 16 psi cap.
Fits 2007-2009 Nissan Versa, N/A. Fits 2007-2009 Nissan Versa, N/A. Fits 2007-2009 Nissan Versa, N/A.
Common Replacement Uses
- Replacing a leaking or cracked radiator tank
- Restoring coolant flow after internal core restriction
- Addressing overheating caused by radiator age or corrosion
- Replacing a damaged OE-style cooling assembly on a Nissan Versa
- Servicing a radiator with oil cooler section wear or seepage
Installation Notes
Verify vehicle configuration before installation: this radiator is listed for 2007-2009 Nissan Versa without variable transmission. Confirm inlet and outlet orientation, core dimensions, and cap specification before removing the original unit. Transfer any required cooling-system components from the existing setup as needed, and inspect hoses, clamps, and coolant condition during replacement.
Quality Assurance
CSF manufactures radiators to high-performance standards and supplies OE-style cooling components worldwide. The 3347 uses an aluminum core with plastic tanks and is built to the listed application and dimensional specifications for direct-fit service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Nissan | Versa | 1.8L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; w/o Variable Transmission; 1 Row Plastic Tank Aluminum Core |
| 2008 | Nissan | Versa | 1.8L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; w/o Variable Transmission; 1 Row Plastic Tank Aluminum Core |
| 2007 | Nissan | Versa | 1.8L | L4 | N/A | OE Style Design; Use Mini, 16 psi Cap; w/o Variable Transmission; 1 Row Plastic Tank Aluminum Core |
