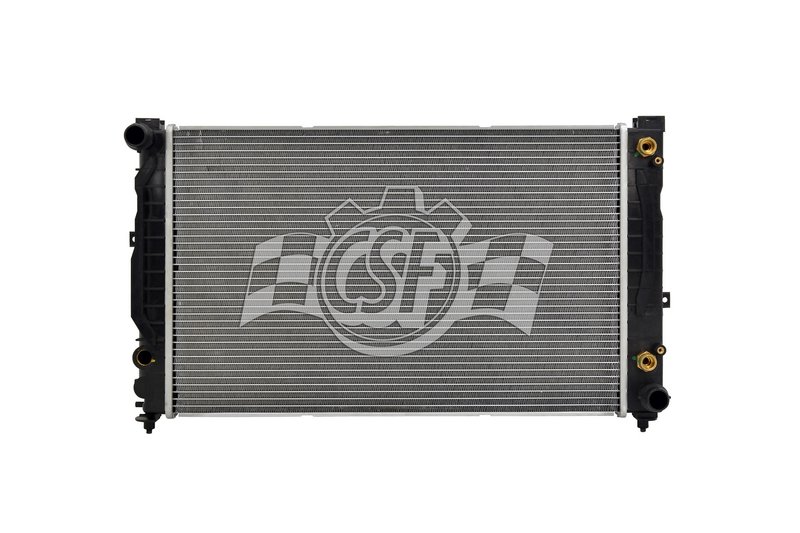

CSF 3360 Radiator
| Brand | CSF 3360 |
|---|---|
| Box Height (in) | 5 14/16 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 19 3/16 |
| Cap Included | No |
| Core Length | 24 13/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 15 11/16 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/4 Left |
| Inlet Length (in) | 15 13/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 11 13/16 (high-efficiency Plate Type) |
| Outlet Diameter | 1 1/4 Left |
| Outlet Length (in) | 15 13/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Volkswagen and Audi · 19 vehicles |
OE-style design. Plastic tanks and an aluminum core match a familiar replacement format.
Cross-flow construction. Promotes efficient coolant movement for consistent cooling performance.
Steel crimps. Strengthen the radiator by 40% over OE.
Cross-references APDI 8012034, LIQUI MOLY 2034 and 8D0-121-251 M for the same application. See all 6.
CSF 3360 Radiator for Audi A4 and Passat
The CSF 3360 radiator is an OE-style cooling replacement built with a plastic tank and aluminum core design for direct-fit service on select Audi and Volkswagen applications. It is engineered as a cross-flow radiator with quick-connect inlet and outlet pipes to match the original layout on compatible vehicles.
Key Features
- 1-row aluminum core with plastic tanks
- Cross-flow design for OE-style cooling layout
- Core thickness: 1 1/4 in.
- Core dimensions: 24 13/16 in. length x 15 11/16 in. width
- Inlet and outlet diameter: 1 1/4 in., left side
- High-efficiency plate-type oil cooler integrated
- Steel crimps used to strengthen the radiator assembly
- No radiator cap included
Product Details
CSF builds the 3360 radiator to high-performance manufacturing standards using an aluminum core and OEM-style plastic tanks. The design is wind-tunnel tested for cooling performance validation and produced in facilities with ISO/TSO certification. This radiator is a direct replacement for 1997-2005 Volkswagen Passat, 1997-2001 Audi A4, and 1997-2001 Audi A4 Quattro applications, making it a practical choice for restoring factory cooling performance. This part cross-references APDI 8012034 for the same application.
Common Cooling Issues This Radiator Can Address
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat transfer
- Corrosion or fatigue in the original radiator assembly
- Cooling system service needs on Audi A4, Audi A4 Quattro, and Volkswagen Passat models
Installation Notes and Tips
Verify inlet and outlet orientation before installation, as this radiator uses left-side 1 1/4 in. connections. Confirm vehicle year, engine configuration, and cooling system layout against the original unit before removal. Inspect hoses, clamps, and related cooling components during replacement to help ensure a proper seal and stable operating temperature. Fits 1997-2005 Volkswagen Passat, N/A. Fits 1997-2001 Audi A4, N/A. Fits 1997-2001 Audi A4 Quattro, N/A.
Quality Assurance
CSF manufactures radiators for global vehicle applications and validates cooling performance through laboratory testing. The 3360 uses steel crimps for added assembly strength and is built to OE-style specifications for consistent fitment on the listed Audi and Volkswagen models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2004 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2003 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2002 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2001 | Audi | A4 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2001 | Audi | A4 Quattro | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2001 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2000 | Audi | A4 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2000 | Audi | A4 Quattro | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2000 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1999 | Audi | A4 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1999 | Audi | A4 Quattro | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1999 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1998 | Audi | A4 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1998 | Audi | A4 Quattro | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1998 | Volkswagen | Passat | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1997 | Audi | A4 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1997 | Audi | A4 Quattro | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 1997 | Volkswagen | Passat | 2.8L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
