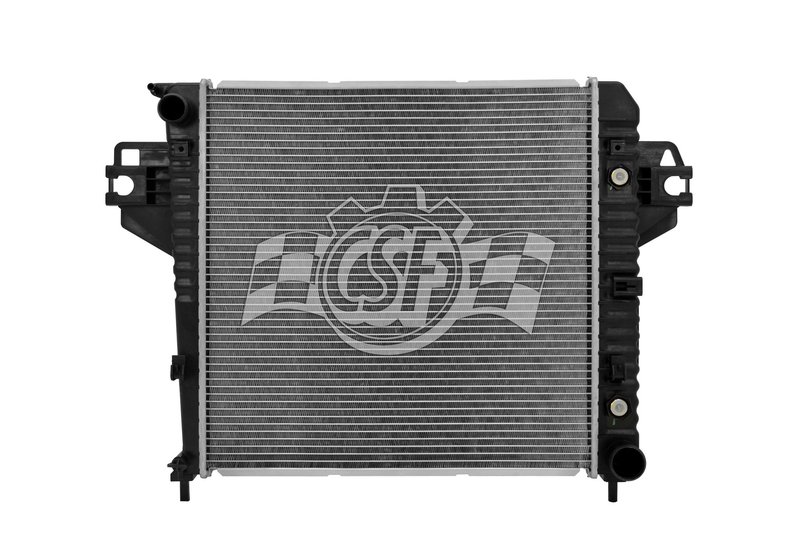

CSF 3363 Radiator
Overview of CSF 3363 Radiator for Jeep Liberty
The CSF 3363 radiator is designed specifically for Jeep Liberty models, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a compact design.
- Core thickness: 1 1/4 inches
- Core width: 20 inches
- Core length: 19 7/8 inches
- Aluminum core material with plastic tanks
- Cross flow design for effective coolant circulation
- Inlet diameter: 1 1/2 inches (left side)
- Outlet diameter: 1 13/16 inches (right side)
- Includes a 12-inch high-efficiency plate type oil cooler
- Does not include radiator cap
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This design supports efficient heat transfer while maintaining compatibility with factory mounting points and hose connections. The single-row core thickness of 1 1/4 inches ensures adequate cooling capacity for Jeep Liberty vehicles without requiring extensive modifications.
Technical Description and Specifications
This radiator features a cross flow core layout, which allows coolant to flow horizontally through the aluminum core, improving heat exchange efficiency. The plastic tanks reduce overall weight and resist corrosion, while the aluminum core provides strong thermal conductivity. The inlet and outlet diameters are sized to match Jeep Liberty factory specifications, with the inlet on the left side measuring 1 1/2 inches and the outlet on the right side at 1 13/16 inches. The integrated 12-inch high-efficiency plate type oil cooler enhances engine oil temperature regulation, contributing to overall engine performance and longevity.
Common Applications and Problem Solving
- Replacement for leaking or damaged Jeep Liberty radiators
- Improves engine cooling efficiency in overheating conditions
- Restores proper coolant flow with OEM-style plastic tanks and aluminum core
- Supports engine oil cooling with integrated oil cooler
- Addresses radiator core corrosion or physical damage
Installation Notes and Tips
Installation of the CSF 3363 radiator is straightforward for Jeep Liberty models due to its OEM-style design. Ensure all hose connections match the specified inlet and outlet diameters (1 1/2 inch left inlet, 1 13/16 inch right outlet). The radiator does not include a cap, so reuse the existing cap or purchase a compatible replacement. Verify the radiator mounting points align with the vehicle frame to avoid fitment issues. Properly bleed the cooling system after installation to prevent air pockets.
Quality Assurance and Warranty
CSF radiators are manufactured to meet or exceed OEM standards, using corrosion-resistant materials and tested for durability. The 1 Row Plastic Tank Aluminum Core radiator is designed without hazardous materials and weighs approximately 14 pounds, ensuring ease of handling. While specific warranty details are not provided here, CSF products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
| Brand | CSF |
| Part Number | 3363 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 31 13/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 25 1/8 |
| Cap Included | No |
| Core Length | 19 7/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 20 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 20 9/16 |
| Inlet Width (in) | 2 1/8 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Diameter | 1 13/16 Right |
| Outlet Length (in) | 20 9/16 |
| Outlet Width (in) | 2 1/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Jeep | Liberty | 3.7L | V6 | N/A | OE Style Design; Use Small, 16 psi Cap; w/ External O.C. Bracket; 1 Row Plastic Tank Aluminum Core |
| 2005 | Jeep | Liberty | 3.7L | V6 | N/A | OE Style Design; Use Small, 16 psi Cap; w/ External O.C. Bracket; 1 Row Plastic Tank Aluminum Core |
| 2004 | Jeep | Liberty | 3.7L | V6 | N/A | OE Style Design; Use Small, 16 psi Cap; w/ External O.C. Bracket; 1 Row Plastic Tank Aluminum Core |
| 2003 | Jeep | Liberty | 3.7L | V6 | N/A | OE Style Design; Use Small, 16 psi Cap; External O.C., No Bracket Required; 1 Row Plastic Tank Aluminum Core |
| 2002 | Jeep | Liberty | 3.7L | V6 | N/A | OE Style Design; Use Small, 16 psi Cap; External O.C., No Bracket Required; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
