OE Quality
60-Day Returns

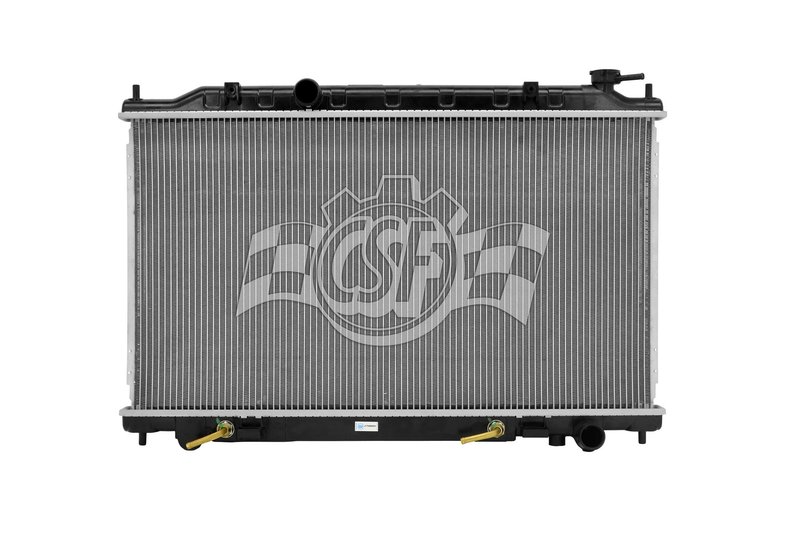

CSF 3371 Radiator
Overview of CSF 1 Row Plastic Tank Aluminum Core Radiator
The CSF 1 Row Plastic Tank Aluminum Core Radiator (Part Number 3371) is designed specifically for Nissan Maxima models. This radiator features a durable aluminum core combined with OE-style plastic tanks, providing reliable cooling performance for your vehicle.
- Core thickness: 5/8 inch
- Core width: 28 3/8 inches
- Core length: 15 13/16 inches
- Aluminum core with plastic tanks
- Down flow design with 1 row core
- Inlet and outlet diameter: 1 3/8 inches (left inlet, right outlet)
- Includes high-efficiency concentric type oil cooler (14 3/4 inches)
- Cap not included (CSF cap number 4502 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines lightweight aluminum cores with OE-style plastic tanks to balance durability and cost-effectiveness. This product line is engineered to meet original equipment specifications, ensuring proper fit and function for vehicles like the Nissan Maxima. The single-row core design supports efficient heat dissipation while maintaining a compact profile.
Product Specifications and Features
This radiator features a 5/8 inch thick aluminum core measuring 28 3/8 inches wide and 15 13/16 inches long. The down flow design facilitates effective coolant circulation through the single core row. Both inlet and outlet ports have a diameter of 1 3/8 inches, positioned on the left and right sides respectively, with inlet and outlet lengths of 29 1/2 inches and widths of 1 5/8 inches. The integrated oil cooler is a high-efficiency concentric type measuring 14 3/4 inches, enhancing engine cooling performance.
Compatible Vehicles and Common Applications
- Replacement radiator for Nissan Maxima models requiring a 1 row aluminum core radiator
- Addresses overheating issues caused by damaged or clogged radiators
- Resolves coolant leaks from cracked plastic tanks
- Improves cooling system efficiency in vehicles with OEM-style radiator requirements
- Suitable for vehicles needing a down flow radiator design
Installation Notes and Tips
When installing the CSF radiator part number 3371 on a Nissan Maxima, ensure the radiator cap (CSF cap number 4502) is sourced separately as it is not included. Verify inlet and outlet hose diameters and positions to match the vehicle’s cooling system. Properly bleed the cooling system after installation to avoid air pockets. Handle the plastic tanks carefully to prevent damage during installation.
Quality Assurance and Warranty Information
CSF radiators are manufactured to meet OEM specifications, using high-quality aluminum cores and durable plastic tanks. This radiator is free of hazardous materials and designed for long-term reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
| Brand | CSF |
| Part Number | 3371 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 4 11/16 |
| Box Length (in) | 31 13/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 22 3/4 |
| Cap Included | No |
| Core Length | 15 13/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 28 3/8 |
| Csf Cap Number | 4502 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Right |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Nissan | Maxima | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2007 | Nissan | Maxima | 3.5L | V6 | N/A | OE Style Design; Use Mini, 13 psi Cap; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
