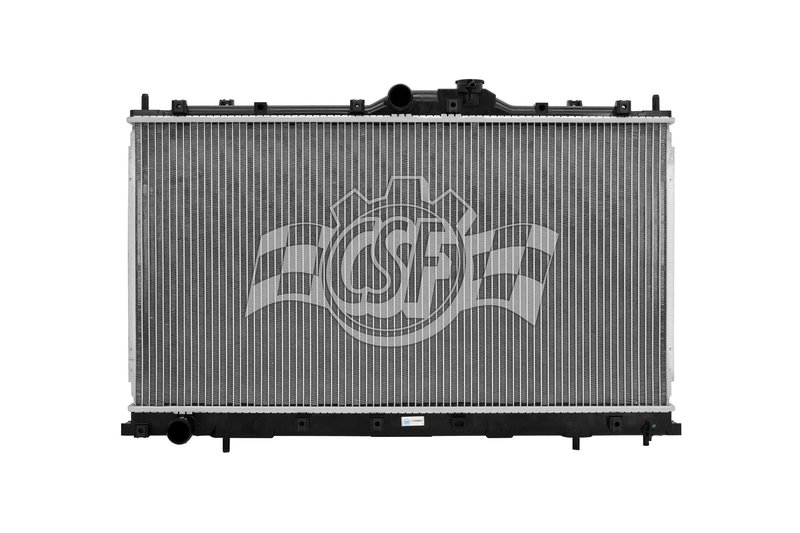

CSF 3382 Radiator
Overview of CSF 3382 Radiator for Mitsubishi Galant
The CSF 3382 radiator is designed specifically for Mitsubishi Galant models, providing reliable cooling performance with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.
- Core Thickness: 5/8 inch
- Core Width: 29 13/16 inches
- Core Length: 15 3/4 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet Diameter: 1 3/8 inch (center)
- Outlet Diameter: 1 3/8 inch (left)
- Down Flow Type
- Single Core Row
- Cap Not Included (CSF Cap Number 4514 compatible)
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of vehicles like the Mitsubishi Galant, offering a straightforward replacement option that maintains factory specifications and fitment.
Technical Description of CSF Part Number 3382
This radiator features a 5/8 inch thick aluminum core measuring 29 13/16 inches wide and 15 3/4 inches long, designed for efficient heat transfer. The plastic tanks are molded to OEM standards, ensuring proper sealing and compatibility with the vehicle’s cooling system. The down flow design directs coolant from the top to the bottom of the core, supporting consistent engine temperature regulation. Inlet and outlet diameters are both 1 3/8 inches, positioned center and left respectively, matching the Mitsubishi Galant’s factory setup. The radiator does not include a cap but is compatible with CSF cap number 4514.
Common Applications and Problem Solving
- Replacement for leaking or cracked radiators in Mitsubishi Galant vehicles
- Restores proper engine cooling to prevent overheating
- Addresses reduced cooling efficiency due to clogged or damaged cores
- Suitable for vehicles requiring a down flow radiator configuration
- Compatible with Mitsubishi Galant models needing a 1 row aluminum core radiator
Installation Notes and Tips
- Ensure compatibility with your Mitsubishi Galant model year before installation
- Check inlet and outlet hose sizes (1 3/8 inch) for proper fit
- Use the recommended CSF radiator cap number 4514 or equivalent
- Inspect and replace any worn hoses or clamps during installation
- Bleed the cooling system properly to avoid air pockets after installation
Quality Assurance and Warranty Information
The CSF 3382 radiator is manufactured to meet OEM specifications, using high-quality aluminum and plastic materials for durability and corrosion resistance. While the product does not include a cap, it is designed to work with CSF cap number 4514. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
| Brand | CSF |
| Part Number | 3382 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 4 11/16 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 22 3/8 |
| Cap Included | No |
| Core Length | 15 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 29 13/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Centre |
| Inlet Length (in) | 30 1/4 |
| Inlet Width (in) | 1 5/8 |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 30 1/4 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. Temperature sensor on core not supplied. Original sensor seat must be removed and used. |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Mitsubishi | Galant | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Smog Sensor Clip Lock Included; 1 Row Plastic Tank Aluminum Core |
| 2009 | Mitsubishi | Galant | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Smog Sensor Clip Lock Included; 1 Row Plastic Tank Aluminum Core |
| 2008 | Mitsubishi | Galant | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Smog Sensor Clip Lock Included; 1 Row Plastic Tank Aluminum Core |
| 2007 | Mitsubishi | Galant | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Smog Sensor Clip Lock Included; 1 Row Plastic Tank Aluminum Core |
| 2006 | Mitsubishi | Galant | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Smog Sensor Clip Lock Included; 1 Row Plastic Tank Aluminum Core |
| 2005 | Mitsubishi | Galant | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Smog Sensor Clip Lock Included; 1 Row Plastic Tank Aluminum Core |
| 2004 | Mitsubishi | Galant | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; Smog Sensor Clip Lock Included; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
