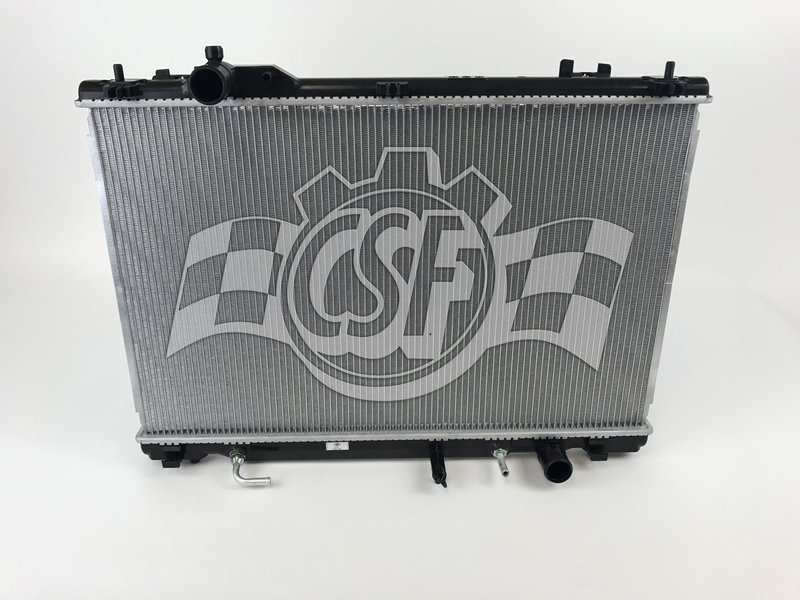

CSF 3386 Radiator
Overview of CSF 3386 Radiator for Lexus LS460
The CSF 3386 radiator is designed specifically for the Lexus LS460, featuring a durable aluminum core paired with plastic tanks. This 1 Row Plastic Tank Aluminum Core radiator offers reliable cooling performance with precise fitment for your vehicle.
- Core Thickness: 5/8 inch
- Core Width: 28 1/16 inches
- Core Length: 17 11/16 inches
- Core Material: Aluminum
- Tank Material: Plastic
- Inlet Diameter: 1 1/2 inch (left side)
- Outlet Diameter: 1 1/2 inch (right side)
- Flow Type: Down flow
- Radiator Core Row Quantity: 1
- Oil Cooler: 14 3/4 inch high-efficiency concentric type
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to provide efficient heat dissipation and corrosion resistance. This product line is engineered to meet the cooling demands of vehicles like the Lexus LS460, ensuring compatibility and durability in demanding conditions.
Product Description and Specifications
The CSF 3386 radiator features a single-row aluminum core with a thickness of 5/8 inch, measuring 28 1/16 inches wide and 17 11/16 inches long. The plastic tanks are designed to match OEM specifications, providing a secure fit and reliable sealing. The radiator supports a down flow cooling design, which directs coolant from the top to the bottom, optimizing heat exchange. Both the inlet and outlet have a diameter of 1 1/2 inches, positioned on the left and right sides respectively, facilitating straightforward hose connections. Additionally, the integrated 14 3/4 inch high-efficiency concentric oil cooler enhances engine cooling performance.
Common Applications and Issues Addressed
- Replacement for leaking or cracked radiators in Lexus LS460 models
- Resolves overheating caused by clogged or damaged cores
- Addresses coolant flow restrictions due to corrosion or debris buildup
- Improves engine cooling efficiency with integrated oil cooler
- Restores proper coolant circulation in down flow radiator systems
Installation Notes and Tips
When installing the CSF 3386 radiator, ensure all hose connections match the 1 1/2 inch inlet and outlet diameters for proper sealing. Verify the down flow orientation aligns with the vehicle’s cooling system layout. Since the radiator does not include a cap, reuse the existing OEM cap or source a compatible replacement. Inspect mounting points for secure fitment and check for any potential interference with surrounding components during installation.
Quality Assurance and Warranty
CSF radiators are manufactured to meet OEM standards, using corrosion-resistant aluminum cores and durable plastic tanks. This radiator is free from hazardous materials and weighs approximately 10 pounds, ensuring ease of handling. While specific warranty details are not provided, CSF products typically adhere to industry quality controls to ensure reliable performance and longevity in Lexus LS460 cooling systems.
| Brand | CSF |
| Part Number | 3386 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 30 5/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 24 1/2 |
| Cap Included | No |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 28 1/16 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 1/2 Left |
| Inlet Length (in) | 28 11/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 1/2 Right |
| Outlet Length (in) | 28 11/16 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2016 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2015 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2014 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2013 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2012 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2011 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Lexus | LS460 | RWD | 4.6L | V8 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
