CSF 3391 Radiator

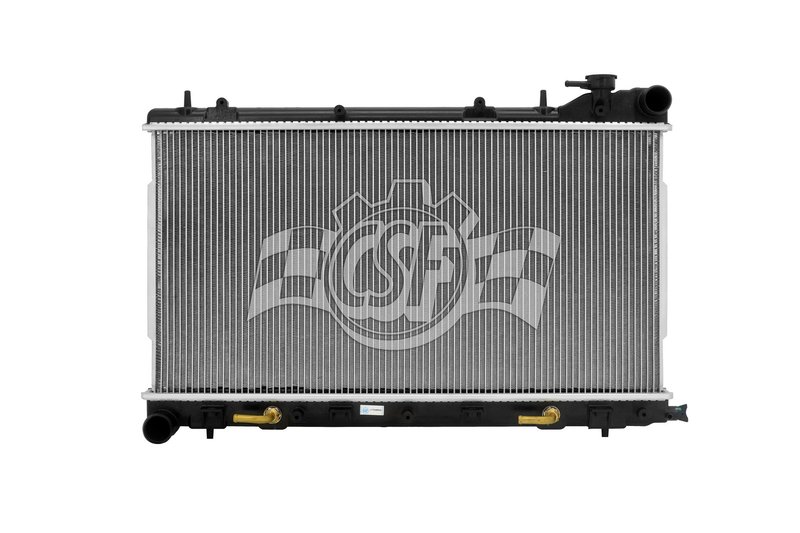

Overview of CSF 3391 Radiator for Subaru Forester

The CSF 3391 radiator is designed specifically for Subaru Forester models, providing reliable engine cooling with a durable aluminum core and plastic tanks. This radiator features a single-row core construction optimized for efficient heat dissipation in a down flow configuration.

• Core thickness: 5/8 inch
• Core width: 27 inches
• Core length: 14 3/16 inches
• Aluminum core material with plastic tanks
• Inlet diameter: 1 1/2 inch (right side)
• Outlet diameter: 1 9/16 inch (left side)
• Down flow radiator type
• One core row for streamlined cooling
• Cap not included (CSF cap number 4540 compatible)
• Box dimensions: 30 5/8" L x 21 15/16" W x 5 1/16" H
• Box weight: 10 lbs

Details on the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core line combines OEM-style plastic tanks with a robust aluminum core to balance durability and weight. This product line is engineered to meet the cooling demands of vehicles like the Subaru Forester, offering a single-row core design that supports effective heat exchange while maintaining a compact form factor.

Product Description and Specifications

The CSF 3391 radiator features a 5/8 inch thick aluminum core measuring 27 inches wide and 14 3/16 inches long, designed for optimal cooling performance in Subaru Forester vehicles. The plastic tanks are engineered to OEM specifications, ensuring proper fit and function. The radiator uses a down flow design, which directs coolant downward through the core for efficient heat transfer. Inlet and outlet diameters are 1 1/2 inches (right) and 1 9/16 inches (left), respectively, matching factory hose connections. This radiator does not include a cap but is compatible with CSF cap number 4540. The unit weighs approximately 10 pounds and ships in a box sized 30 5/8 by 21 15/16 by 5 1/16 inches.

Common Applications and Problem Resolution

• Replacement for leaking or cracked Subaru Forester radiators
• Solves overheating issues caused by clogged or damaged cores
• Restores proper coolant flow with OEM-style inlet and outlet sizes
• Addresses radiator core corrosion or physical damage
• Improves cooling efficiency in Forester models with single-row radiator setups

Installation Notes and Tips

• Ensure compatibility with Subaru Forester model year before installation
• Use compatible CSF radiator cap number 4540 (not included)
• Inspect hoses and clamps for wear during installation
• Flush cooling system to remove debris before installing new radiator
• Follow vehicle manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty Information

The CSF 3391 radiator is manufactured to meet OEM standards, combining a high-quality aluminum core with durable plastic tanks. This product is free of hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
