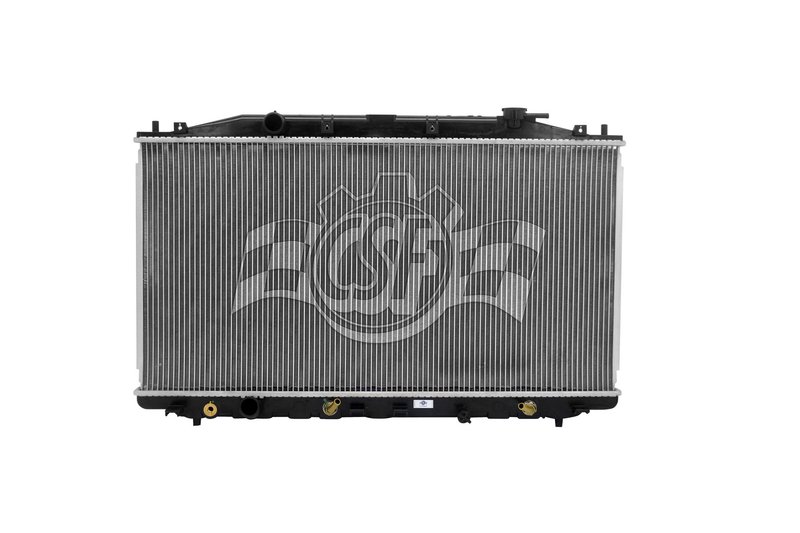

CSF 3398 Radiator
| Brand | CSF 3398 |
|---|---|
| Box Height (in) | 5 11/16 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 21 15/16 |
| Cap Included | No |
| Core Length | 15 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 30 5/16 |
| Csf Cap Number | 4514 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Left |
| Inlet Length (in) | 31 |
| Inlet Width (in) | 1 |
| Oil Cooler (in) | 12 13/16 (high-efficiency Plate Type) |
| Outlet Diameter | 1 5/16 Left |
| Outlet Length (in) | 31 |
| Outlet Width (in) | 1 5/8 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Acura · 3 vehicles |
OE-style construction. Plastic tanks and an aluminum core mirror original equipment design.
Wind tunnel tested. Validated for cooling performance in laboratory testing.
1-row core. A single-row design helps keep the radiator compact.
Cross-references APDI 8013082, OSC 13082 and Spectra Premium CU13082 for the same application. See all 8.
CSF 3398 Radiator for Acura TSX
CSF 3398 is an OE-style radiator built with a 1-row aluminum core and plastic tanks for the 2009-2011 Acura TSX. It is engineered for direct replacement service in the cooling system and matches the factory-style down-flow layout.
Key Features
- Fits 2009-2011 Acura TSX, N/A
- 1-row radiator design with aluminum core and plastic tank construction
- Down-flow configuration for OE-style cooling system layout
- Core thickness: 5/8 in.
- Core dimensions: 30 5/16 in. wide x 15 3/4 in. long
- Inlet and outlet diameter: 1 5/16 in. left
- Oil cooler: 12 13/16 in. high-efficiency plate type
- Cap not included; CSF cap number 4514
- Part number: 3398
Product Details
CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind tunnel testing. The CSF 3398 follows an OEM-style plastic tank and aluminum core design, making it a direct-fit replacement for Acura TSX cooling system service. This radiator is built for the 2009, 2010, and 2011 Acura TSX and is identified by part number 3398. This part cross-references APDI 8013082 for the same application.
Common Cooling System Issues It Can Address
- Cracked or leaking radiator tanks
- Corroded or restricted radiator core passages
- Reduced coolant flow from an aging radiator assembly
- Overheating caused by poor heat transfer
- Transmission or engine cooling concerns tied to radiator wear
Installation Notes
Verify inlet and outlet orientation before installation, since this radiator uses left-side inlet and outlet connections. Confirm the vehicle uses the OE-style down-flow layout and check clearance for the integrated plate-type oil cooler. Use the correct pressure cap specified for the application; cap is not included.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered for cooling performance validation. The brand has supplied radiators worldwide for more than 50 years and manufactures a broad range of applications for leading vehicle brands.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Acura | TSX | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2010 | Acura | TSX | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
| 2009 | Acura | TSX | 2.4L | L4 | N/A | OE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core |
