CSF 3401 Radiator
OE Quality 60-Day Returns
CSF
 1 Row Plastic Tank Aluminum Core

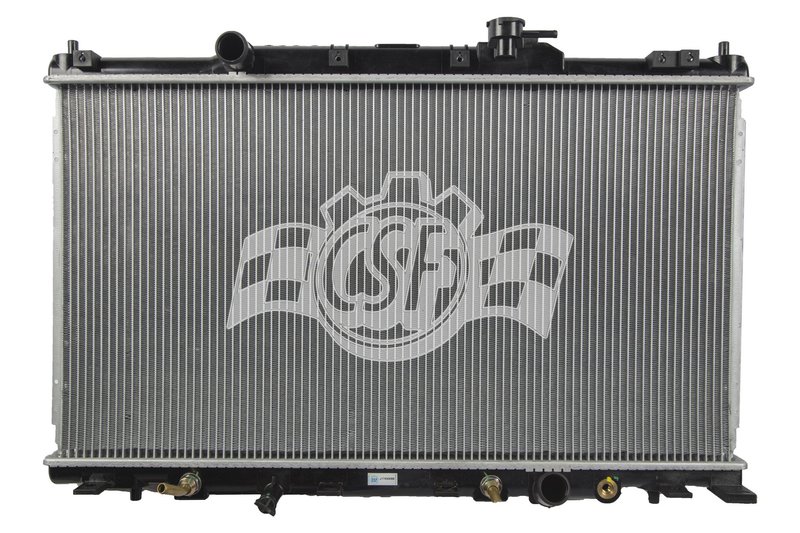

CSF 3401 Radiator

Brand CSF 3401
Box Height (in) 5 1/2
Box Length (in) 31 1/4
Box Weight (lbs) 9
Box Width (in) 21 15/16
Cap Included No
Core Length 15 13/16
Core Material Aluminum
Core Thickness 5/8
Core Width 28 11/16
Csf Cap Number 4514
Down Flow Or Cross Flow Type Down Flow
Hazardous Material No
Inlet Diameter 1 1/4 Left
Inlet Length (in) 29 1/2
Inlet Width (in) 1 5/8
Oil Cooler (in) 12 13/16 (high-effeciency Concentric Type)
Outlet Diameter 1 1/4 Right
Outlet Length (in) 29 1/2
Outlet Width (in) 1 5/8
Radiator Core Row Quantity 1
Tank Material Plastic
Tech Note O.E.M. style Plastic tanks & Aluminum core.
Product line 1 Row Plastic Tank Aluminum Core
Fits Honda · 5 vehicles

OE-style construction. Plastic tanks and an aluminum core mirror the original design.

Down-flow design. Promotes efficient coolant movement through the radiator.

Wind tunnel tested. Validated for cooling performance in lab testing.

Cross-references APDI 8013015, Carlson 13015 and Spectra Premium CU13015 for the same application. See all 7.

$101.14Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $101.14
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

CSF 3401 Radiator for Honda Element

The CSF 3401 is an OE-style radiator built with a plastic tank and aluminum core for the 2007-2011 Honda Element. It is engineered for direct replacement service and supports the cooling demands of daily driving with a down-flow design and integrated high-efficiency concentric oil cooler.

Key Features

  • Fits 2007-2011 Honda Element
  • CSF part number 3401
  • 1-row radiator with 5/8 in. core thickness
  • Aluminum core with plastic tanks
  • Down-flow configuration
  • 1 1/4 in. left inlet and 1 1/4 in. right outlet
  • High-efficiency concentric oil cooler built in
  • OE-style plastic tank and aluminum core construction

Product Details

CSF’s 1 Row Plastic Tank Aluminum Core line focuses on OE-style replacement radiators built to match factory-style packaging and cooling layout. The CSF 3401 follows that approach with a 28 11/16 in. core width, 15 13/16 in. core length, and a 5/8 in. core thickness for the Honda Element platform. CSF states that its radiators are manufactured to performance standards, validated through wind tunnel testing, and produced in ISO/TSO-certified facilities. This radiator is a direct-fit solution for Honda Element cooling system service and is listed with the same application across 2007, 2008, 2009, 2010, and 2011 models.

This part cross-references Spectra Premium CU13015 for the same application.

Common Cooling System Issues It Can Address

  • Coolant leaks from a cracked or aging radiator tank
  • Restricted coolant flow from internal corrosion or sediment buildup
  • Overheating caused by reduced heat transfer efficiency
  • Transmission or engine oil cooling concerns on equipped vehicles
  • Replacement needs after impact damage or seam failure

Installation Notes and Tips

Verify inlet and outlet orientation before installation: this unit uses a 1 1/4 in. left inlet and 1 1/4 in. right outlet. The application note specifies use with a Micro, 16 psi cap, and the radiator does not include a cap. Confirm hose condition, inspect mounting points, and flush the cooling system before installing a new radiator to help protect the replacement unit and maintain proper flow.

Quality Assurance

CSF manufactures radiators for a wide range of vehicle applications and reports more than 30 million units sold worldwide. The brand also notes ISO/TSO-certified production and laboratory testing for cooling performance validation.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2011HondaElement2.4LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2010HondaElement2.4LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2009HondaElement2.4LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2008HondaElement2.4LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
2007HondaElement2.4LL4N/AOE Style Design; Use Micro, 16 psi Cap; 1 Row Plastic Tank Aluminum Core
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8013015Carlson — 13015Spectra Premium — CU1301519010-PZD-A1219010-PZD-A6119010-PZD-A62HO3010219
