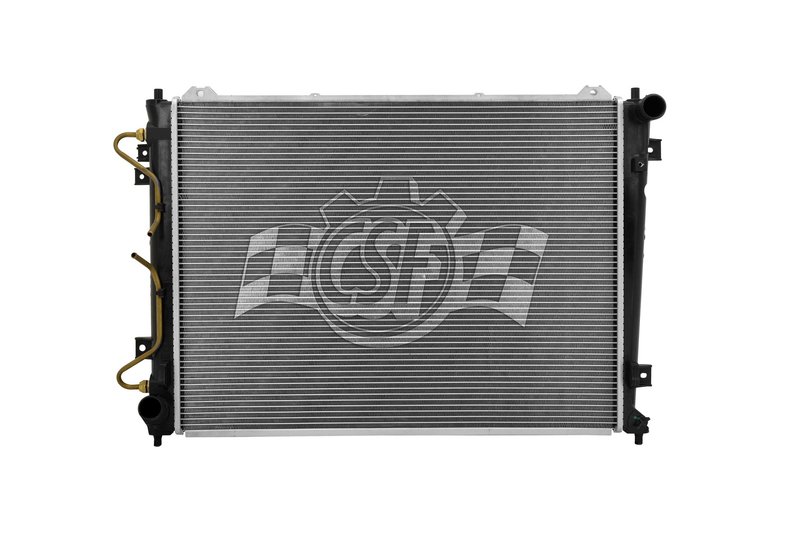

CSF 3407 Radiator
| Brand | CSF 3407 |
|---|---|
| Core Thickness | 5/8 |
| Core Width | 19 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 25 3/16 |
| Inlet Diameter | 1 3/8 right |
| Outlet Diameter | 1 3/8 left |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 22 15/16 |
| Hazardous Material | No |
| Inlet Length (in) | 19 |
| Inlet Width (in) | 1 9/16 |
| Oil Cooler (in) | 14 9/16 (high-effeciency concentric type) |
| Outlet Length (in) | 19 |
| Outlet Width (in) | 1 9/16 |
| Tech Note | O.e.m. style plastic tanks & aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Kia · 6 vehicles |
OE-style replacement. Plastic tanks and an aluminum core match the original design.
Cross-flow cooling. Helps move coolant efficiently through the radiator.
Wind-tunnel tested. Validated for cooling performance in lab conditions.
Cross-references Anchor 2960, 25310-1D110 and 8012960 for the same application. See all 5.
CSF 3407 Radiator for Kia Rondo
The CSF 3407 is an OE-style radiator built with a 1-row aluminum core and plastic tanks for the 2007-2012 Kia Rondo. It is engineered for direct-fit cooling performance in a cross-flow layout with right-side inlet and left-side outlet connections.
Key Features
- 1-row cross-flow radiator design
- Aluminum core with plastic tanks
- Core thickness: 5/8 in.
- Core dimensions: 19 in. wide x 25 3/16 in. long
- Inlet diameter: 1 3/8 in., right side
- Outlet diameter: 1 3/8 in., left side
- Integrated high-efficiency concentric-type oil cooler, 14 9/16 in.
- OE-style plastic tank and aluminum core construction
- Part number: 3407
Product Details
CSF builds the 3407 radiator to match the factory-style layout used on the Kia Rondo, helping maintain proper coolant flow and heat transfer in everyday driving conditions. CSF manufactures radiators to high-performance standards and validates cooling performance through lab testing, with broad application coverage across many vehicle platforms. This part cross-references Anchor 2960 for the same application.
Compatible With 2007-2012 Kia Rondo, N/A. The CSF 3407 is a direct-fit replacement for the Kia Rondo cooling system and is identified by part number 3407 in radiator replacement searches.
Common Problems This Radiator Can Address
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Overheating caused by reduced heat dissipation
- Corrosion or wear in the original radiator assembly
- Cooling system service needs on a high-mileage Kia Rondo
Installation Notes
Verify inlet and outlet orientation before installation: inlet is on the right and outlet is on the left. Confirm radiator dimensions, hose routing, and oil cooler connection points against the original unit before final assembly. Because this radiator uses plastic tanks and an aluminum core, handle mounting points and hose necks carefully during installation.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered and wind-tunnel tested for cooling performance validation. The brand has supplied radiators worldwide for more than 50 years and offers extensive model coverage across leading vehicle applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Kia | Rondo | 2.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2011 | Kia | Rondo | 2.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Kia | Rondo | 2.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Kia | Rondo | 2.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Kia | Rondo | 2.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Kia | Rondo | 2.4L | L4 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
