OE Quality
60-Day Returns

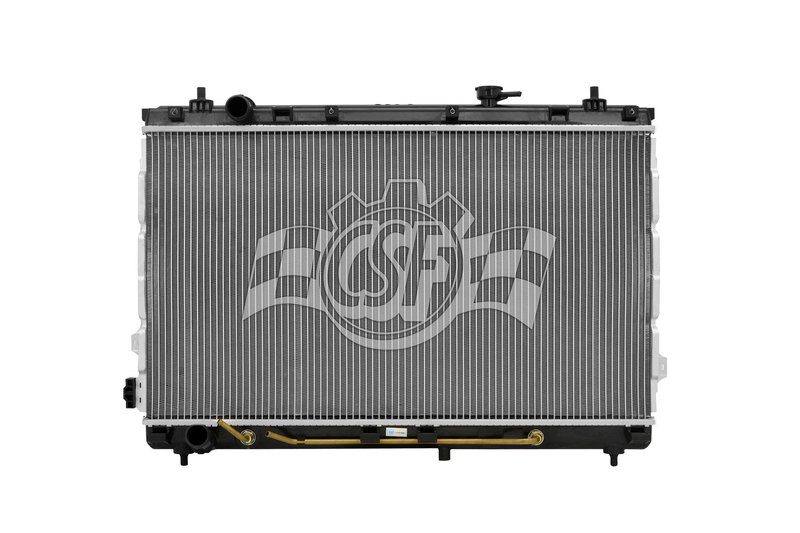

CSF 3409 Radiator
Overview of CSF 3409 Radiator for Hyundai and Kia Vehicles
The CSF 3409 radiator is designed specifically for Hyundai Entourage and Kia Sedona models, providing reliable cooling performance. Featuring a durable aluminum core with plastic tanks, this radiator supports efficient engine temperature regulation for your vehicle.
- Core thickness: 5/8 inch
- Core width: 30 5/8 inches
- Core length: 17 5/16 inches
- Aluminum core with plastic tanks
- Down flow design with 1 row core
- Inlet and outlet diameter: 1 3/8 inches (left side)
- Compatible with Hyundai Entourage and Kia Sedona
- Part number: 3409
Details on the 1 Row Plastic Tank Aluminum Core Product Line
The CSF 1 Row Plastic Tank Aluminum Core product line combines OEM-style plastic tanks with a high-quality aluminum core to balance durability and heat dissipation. This design supports effective cooling in a compact, single-row configuration, making it suitable for vehicles like the Hyundai Entourage and Kia Sedona that require efficient temperature management without added bulk.
Technical Description of the CSF 3409 Radiator
This radiator features a 5/8 inch thick aluminum core measuring 30 5/8 inches wide and 17 5/16 inches long, optimized for down flow cooling systems. The plastic tanks are engineered to OEM specifications, ensuring proper fit and function. Both the inlet and outlet have a diameter of 1 3/8 inches located on the left side, facilitating straightforward hose connections. The radiator includes a high-efficiency concentric type oil cooler integrated within the core length, enhancing overall cooling performance. The unit weighs approximately 11 pounds and comes without a cap, compatible with CSF cap number 4503.
Common Applications and Issues Addressed
- Replacement for leaking or damaged radiators in Hyundai Entourage and Kia Sedona
- Resolves engine overheating caused by inefficient cooling
- Addresses coolant leaks from cracked plastic tanks
- Improves cooling system performance in vehicles with down flow radiator setups
- Suitable for vehicles requiring a single-row radiator core
Installation Notes and Tips
- Ensure compatibility with Hyundai Entourage or Kia Sedona before installation
- Verify inlet and outlet hose diameters match existing connections (1 3/8 inches, left side)
- Use the recommended CSF radiator cap number 4503 if a cap replacement is needed
- Inspect and flush the cooling system prior to installation for optimal performance
- Follow manufacturer torque specifications when securing radiator mounts
Quality Assurance and Warranty Information
The CSF 3409 radiator is manufactured to meet OEM standards, featuring a robust aluminum core and durable plastic tanks. This product is free of hazardous materials and designed for long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
| Brand | CSF |
| Part Number | 3409 |
| Position | 1 Row Plastic Tank Aluminum Core |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 34 9/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 24 3/4 |
| Cap Included | No |
| Core Length | 17 5/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 30 5/8 |
| Csf Cap Number | 4503 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 3/8 Left |
| Inlet Length (in) | 30 1/2 |
| Inlet Width (in) | 1 9/16 |
| Oil Cooler (in) | 17 5/16 (high-effeciency Concentric Type) |
| Outlet Diameter | 1 3/8 Left |
| Outlet Length (in) | 30 1/2 |
| Outlet Width (in) | 1 9/16 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Kia | Sedona | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2009 | Kia | Sedona | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Hyundai | Entourage | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2008 | Kia | Sedona | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Hyundai | Entourage | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2007 | Kia | Sedona | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
| 2006 | Kia | Sedona | 3.8L | V6 | N/A | OE style design with Mini 16 psi cap.; 1 Row Plastic Tank Aluminum Core |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
