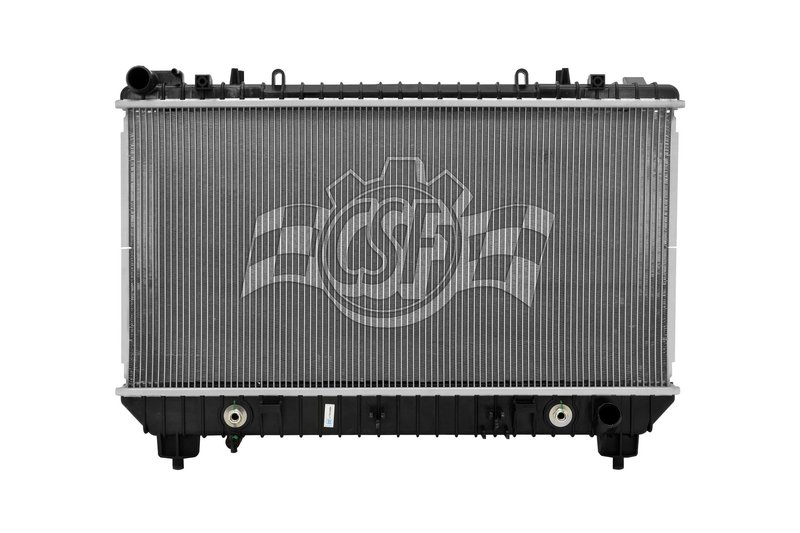

CSF 3413 Radiator
| Brand | CSF 3413 |
|---|---|
| Box Height (in) | 6 14/16 |
| Box Length (in) | 32 7/16 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 23 9/16 |
| Cap Included | No |
| Core Length | 15 3/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 11/16 |
| Down Flow Or Cross Flow Type | Down Flow |
| Hazardous Material | No |
| Inlet Diameter | 1 5/16 Left |
| Inlet Length (in) | 30 1/4 |
| Inlet Width (in) | 2 1/4 |
| Oil Cooler (in) | 17 11/16 (high-efficiency Plate Type) |
| Outlet Diameter | 1 5/16 Right |
| Outlet Length (in) | 30 1/4 |
| Outlet Width (in) | 2 1/4 |
| Radiator Core Row Quantity | 1 |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Product line | 1 Row Plastic Tank Aluminum Core |
| Fits | Chevrolet · 2 vehicles |
OE-style construction. Plastic tanks and an aluminum core match the original design.
Wind tunnel tested. Validated for cooling performance in lab conditions.
1-row design. A single-row core helps keep the radiator compact.
Cross-references BBB Industries 13211, Davico Mfg 13141 and Spectra Premium CU13141 for the same application. See all 6.
CSF 3413 Radiator for Camaro Cooling Service
The CSF 3413 is an OE-style radiator built with a plastic tank and aluminum core layout for direct replacement cooling service. It is engineered for the 2010-2011 Chevrolet Camaro and uses a down-flow design with left inlet and right outlet connections.
Key Features
- Fits 2010-2011 Chevrolet Camaro, N/A
- 1-row radiator with aluminum core and plastic tanks
- Core thickness: 7/8 in.
- Core size: 29 11/16 in. wide x 15 3/16 in. long
- 1 5/16 in. inlet on the left and 1 5/16 in. outlet on the right
- Down-flow configuration for OE-style cooling layout
- Integrated high-efficiency plate-type oil cooler section
- Part number: 3413
Product Details
CSF’s 1 Row Plastic Tank Aluminum Core line focuses on OE-style radiator construction for straightforward replacement and consistent cooling performance. Part number 3413 follows the factory-style plastic tank and aluminum core format, with dimensions and hose locations arranged for the 2010-2011 Chevrolet Camaro. CSF manufactures a wide range of radiator applications and validates cooling performance through laboratory wind tunnel testing, supporting accurate thermal management for everyday driving and repair work.
This part cross-references Spectra Premium CU13141 for the same application.
Common Cooling Issues Addressed
- Leaking radiator tanks or core seams
- Restricted coolant flow from an aging radiator
- Overheating caused by reduced heat transfer
- Damaged inlet or outlet connections
- Cooling system service needs on a 2010-2011 Chevrolet Camaro
Installation Notes
Verify hose routing, inlet and outlet orientation, and overall dimensions before installation. This radiator uses a down-flow layout with a left-side inlet and right-side outlet, so matching the factory configuration is important for proper fitment. Inspect related cooling system components, flush the system as needed, and confirm all connections are secure before returning the vehicle to service.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered to high-performance standards. The brand also notes more than 50 years of global supply experience and over 30 million units sold across its radiator range.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Chevrolet | Camaro | 3.6L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
| 2010 | Chevrolet | Camaro | 3.6L | V6 | N/A | OE style design ensures optimal fitment and performance.; 1 Row Plastic Tank Aluminum Core |
