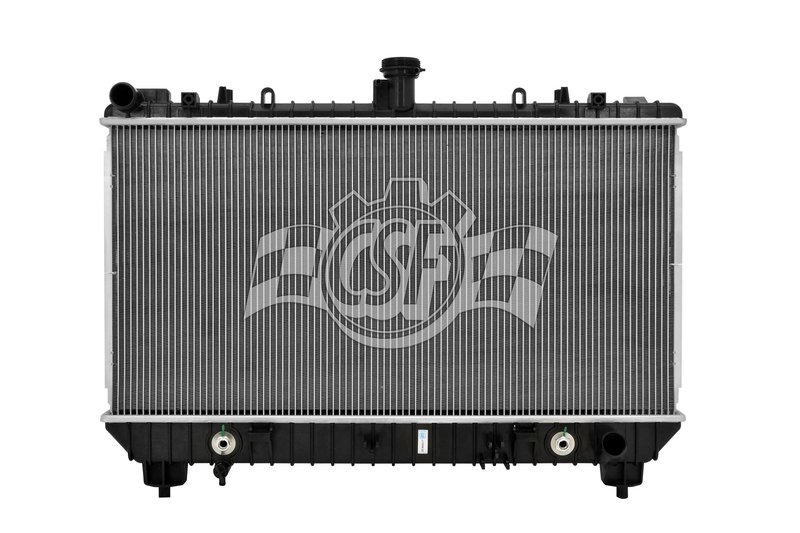

CSF 3414 Radiator

Overview of CSF 3414 Radiator for Chevrolet Camaro

The CSF 3414 radiator is designed specifically for Chevrolet Camaro models, featuring a durable aluminum core and plastic tanks. This radiator offers reliable cooling performance with a down flow design and precise inlet and outlet dimensions to ensure proper fitment and function.

• Core thickness: 7/8 inch
• Core width: 29 11/16 inches
• Core length: 15 3/16 inches
• Aluminum core material with plastic tanks
• Down flow radiator type with 1 core row
• Inlet and outlet diameter: 1 5/16 inches (left inlet, right outlet)
• Includes high-efficiency plate type oil cooler (17 11/16 inches)
• OEM style plastic tanks and aluminum core construction

Detailed Product Description

The CSF 3414 radiator is engineered with a 1 Row Plastic Tank Aluminum Core, combining lightweight plastic tanks with a robust aluminum core for efficient heat dissipation. The core measures 7/8 inch thick, 29 11/16 inches wide, and 15 3/16 inches long, providing adequate surface area for cooling. This radiator features a down flow design, which directs coolant downward through the core, optimizing heat exchange for the Chevrolet Camaro. The inlet and outlet diameters are both 1 5/16 inches, positioned on the left and right sides respectively, ensuring compatibility with factory hose connections. Additionally, the radiator includes a high-efficiency plate type oil cooler measuring 17 11/16 inches, enhancing engine cooling performance.

Compatible Applications and Common Issues Addressed

• Replacement radiator for Chevrolet Camaro models requiring a 1-row aluminum core
• Resolves overheating caused by damaged or clogged radiators
• Addresses coolant leaks from cracked plastic tanks
• Improves cooling efficiency in vehicles with worn or inefficient radiators
• Suitable for restoring OEM cooling system performance

Installation Notes and Tips

When installing the CSF 3414 radiator, ensure all hose connections match the 1 5/16 inch inlet and outlet diameters. Verify the down flow orientation aligns with the vehicle’s cooling system layout. Since the radiator does not include a cap, reuse the existing cap or source a compatible replacement. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal coolant flow. Check for secure mounting and inspect all connections for leaks during initial operation.

Quality Assurance and Warranty

The CSF 3414 radiator is manufactured to meet OEM specifications, featuring durable plastic tanks and an aluminum core designed for long-term reliability. This radiator is free of hazardous materials and weighs approximately 14 pounds, making it a practical replacement option. While specific warranty details are not provided, CSF products typically adhere to industry standards for quality and performance.

About the 1 Row Plastic Tank Aluminum Core Product Line

The CSF 1 Row Plastic Tank Aluminum Core product line combines lightweight plastic tanks with efficient aluminum cores to deliver reliable cooling solutions. This design balances durability and heat dissipation, making it suitable for vehicles like the Chevrolet Camaro that require precise fitment and OEM-style performance. The 1-row core configuration supports effective coolant flow while maintaining a compact size for easy installation.
